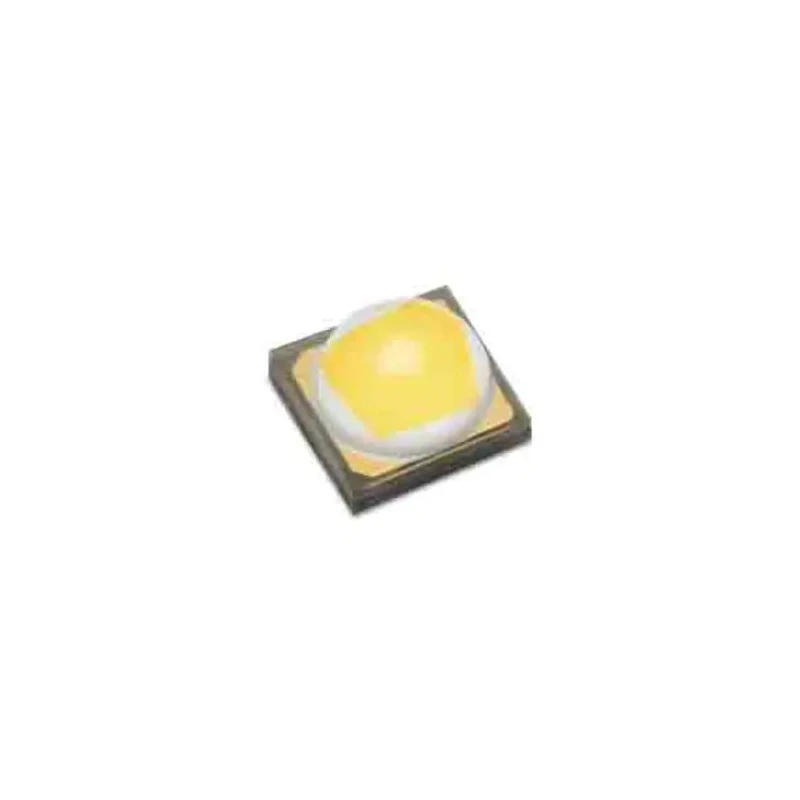

Lumileds 3 V White High Power LED 3535 Surface Mount LUXEON HL2X L1HX-3070200000000
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | Lumileds |
| Model | L1HX-3070200000000 |
| Packaging | Tape |
| Mount Type | Surface |
| Series | LUXEON HL2X |
| Number Of Leds | 1 |
| Maximum forward current | 2000mA |
| Viewing angle | 120 ° |
| Package Type | 3535 |
| Standards/Approvals | RoHS |
| Colour Temperature | 3000k |
| LED Colour | White |
| Forward Voltage | 3V |
| Lens Dimensions | 3.15 mm |
| Lens Shape | Dome |
| LED Luminous Flux | 270 to 292 lm |
| Colour Rendering Index CRI | 70% |
Key Features
- The LED delivers a luminous flux ranging from 270 to 292 lumens.
- It operates at a maximum forward current of 2000mA ensuring high brightness.
- The LED exhibits a color temperature of 3000K providing warm white illumination.
- The device includes a clear dome-shaped lens with dimensions of 3.15 mm for focused light distribution.
- A wide viewing angle of 120 degrees allows broad light dispersion.
- The LED has a colour rendering index (CRI) of 70% suitable for general lighting.
- Its surface mount package type 3535 provides compatibility with automated PCB assembly.
- Designed for high efficiency and environmentally friendly operation.
Product Description
Lumileds L1HX-3070200000000 is a 3 V white high power LED, packaged in a 3535 surface mount configuration within the LUXEON HL2X series. This LED is engineered for demanding outdoor and industrial lighting applications such as street lighting and high bay luminaires.
The device boasts a luminous flux ranging between 270 to 292 lumens, emitted through its clear dome lens that measures 3.15 mm in diameter, providing a broad 120-degree viewing angle for wide illumination coverage.
Operating at a maximum forward current of 2000mA, this LED ensures high brightness while maintaining energy efficiency. The color temperature of 3000K offers warm white light, with a color rendering index of 70% which balances color accuracy and efficiency.
Its surface mount 3535 package supports automated manufacturing processes, facilitating easy integration onto printed circuit boards for mass production.
The device is compliant with RoHS environmental standards, aligning with green manufacturing principles. It is designed to operate reliably within an extended temperature range of -40°C to 135°C, ensuring durability in harsh industrial and outdoor conditions.
The LED delivers luminous flux between 270 to 292 lumens, supporting bright illumination needs. Maximum forward current is rated at 2000mA for powerful light output. The product features a warm white light with 3000K color temperature.
Its clear dome lens with 3.15 mm diameter enables focused and broad lighting. The wide 120° viewing angle allows effective light spread. CRI of 70% ensures adequate color rendition for typical industrial environments. The surface mount 3535 packaging is suitable for automated PCB assembly.
RoHS compliance guarantees environmentally safe materials. Wide operating temperature range (-40°C to 135°C) supports diverse applications.
This Lumileds L1HX-3070200000000 high power LED is ideal for industrial, commercial, street lighting, and high bay applications where reliable, efficient, and bright lighting is essential.
Explore a wide selection of industrial LEDs and lighting solutions at EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LED delivers a luminous flux ranging from 270 to 292 lumens.
It operates at a maximum forward current of 2000mA.
The color temperature is 3000K, providing warm white illumination.
This model features a wide viewing angle of 120 degrees.
The lens has a diameter of 3.15 mm and is dome-shaped for focused light distribution.
It is packaged in a tape format suitable for surface mounting.
The LED has a color rendering index (CRI) of 70%, which is suitable for general lighting applications.
It is designed to operate reliably within an extended temperature range of -40°C to 135°C.
Yes, it is compliant with RoHS environmental standards, aligning with green manufacturing principles.
This model is part of the LUXEON HL2X series.
The package contains 1 LED.
It is engineered for demanding outdoor and industrial lighting applications such as street lighting and high bay luminaires.
