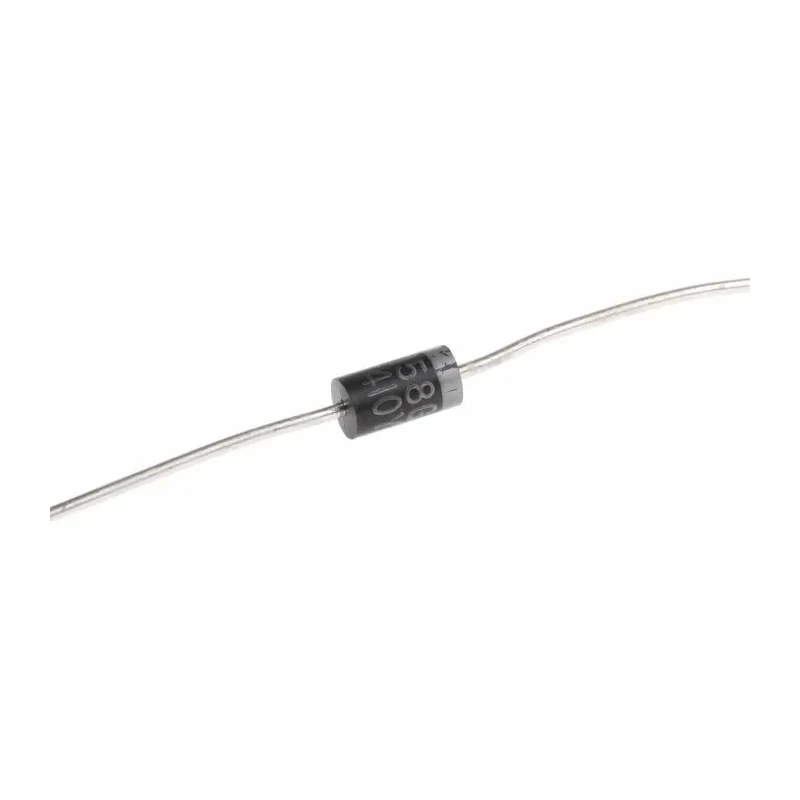

Taiwan Semiconductor 1 kV 1.5 A Switching Diode 2-Pin DO-15 HER158G

Taiwan Semiconductor HER158G is a high-performance switching diode rated at 1 kilovolt and 1.5 amperes, housed within a 2-pin DO-15 through-hole package featuring a 7.6 mm length and 3.6 mm diameter. This diode excels in fast switching applications with a peak reverse recovery time of 75 nanoseconds, making it ideal for power rectification and switching in industrial, automotive, and electronic component manufacturing.

The diode is constructed for durability, operating reliably within a temperature range of -65° Celsius to 150° Celsius, ensuring stable performance under harsh conditions. Its maximum forward voltage of 1.7 volts and low peak reverse current of 5 microamperes contribute to energy-efficient circuitry designs.

Designed for automotive use, the HER158G meets the AEC-Q101 standard, assuring quality and robustness demanded by automotive electronics. It has a single diode configuration optimized for switching rectifier functions.

This component is extensively used in power supplies, industrial equipment, telecommunications, and automotive electronics where fast recovery and high voltage endurance are critical.

The 2-pin DO-15 mounting ensures compatibility with through-hole PCB assembly processes, facilitating ease of integration and maintenance in manufacturing environments. Maximum continuous forward current of 1.5 amperes for stable electrical flow.

Peak reverse repetitive voltage capability of 1000 volts enabling high voltage applications. Compact form factor with 7.6 mm length and 3.6 mm diameter suitable for dense PCB layouts. Fast peak reverse recovery time of 75 nanoseconds for efficient switching.

Wide operational temperature range from -65°C to 150°C supporting diverse environments. Compliance with automotive standard AEC-Q101 ensuring automotive-grade reliability. Low peak reverse current of 5 microamperes reducing leakage and power loss.

Single diode configuration for precise switching functions. Explore more semiconductor components and switching diodes at EnvMart for advanced industrial and electronic applications.
