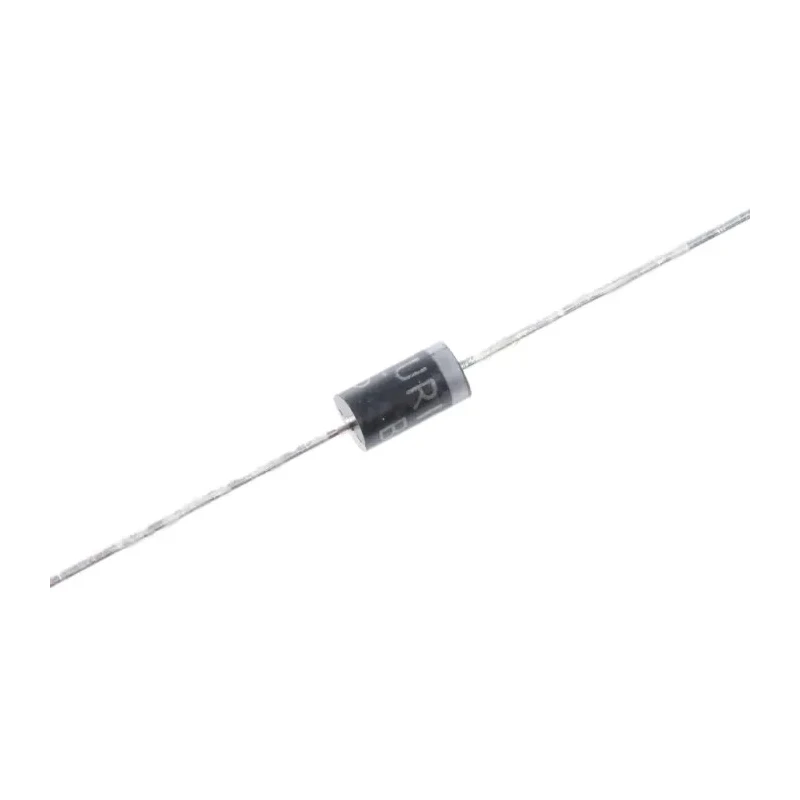

Taiwan Semiconductor 600 V 1 A Switching Diode 2-Pin DO-15 MUR160
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.6mm |
| Brand | Taiwan Semiconductor |
| Height | 3.6mm |
| Length | 7.6mm |
| Model | MUR160 |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 35A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- This diode supports a maximum continuous forward current of 1 ampere.
- It has a peak reverse repetitive voltage rating of 600 volts.
- The package type is DO-15 with single diode configuration.
- Maximum forward voltage drop is 1.25 volts ensuring efficient switching performance.
- Operating temperature range spans from -65°C to 175°C.
- Peak reverse recovery time is 50 nanoseconds, suitable for fast switching circuits.
- Peak non-repetitive forward surge current rating is 35 amperes.
- Pin count is 2, accommodating typical rectifier circuitry.
Product Description
The Taiwan Semiconductor MUR160 is a high-quality, switching-type rectifier diode designed for electronic applications requiring reliable performance at 600 volts and 1 ampere current capacity. This device uses a through-hole DO-15 package with a 2-pin configuration, making it suitable for mounting on conventional PCB layouts in power and signal switching circuitry.
With a maximum continuous forward current rating of 1 A and peak reverse repetitive voltage of 600 V, the MUR160 provides excellent rectification characteristics. Its forward voltage drop of 1.25 V ensures minimal power loss during operation. The diode operates efficiently across a wide temperature range from -65°C to 175°C, supporting demanding environmental conditions in industrial and automotive applications.
The fast switching capability is characterized by a peak reverse recovery time of 50 nanoseconds, allowing its use in high-frequency switching power supplies and converters. The diode also tolerates surge currents up to 35 A, protecting circuits from transient spikes.
Its compact physical dimensions enhance integration into space-constrained assemblies. Furthermore, the product complies with automotive standard AEC-Q101, attesting to its robustness for vehicular electronics.
Engineering designers and manufacturers will find the MUR160 diode suitable for applications in power management, industrial power conversion, automotive electronics, and general electronic device circuits where robust, fast-Switching Diode performance is essential.
This diode supports a maximum continuous forward current of 1 ampere. It has a peak reverse repetitive voltage rating of 600 volts. The package type is DO-15 with single diode configuration. Maximum forward voltage drop is 1.25 volts ensuring efficient switching performance.
Operating temperature range spans from -65°C to 175°C. Peak reverse recovery time is 50 nanoseconds, suitable for fast switching circuits. Peak non-repetitive forward surge current rating is 35 amperes. Pin count is 2, accommodating typical rectifier circuitry.
Physical dimensions: length 7.6 mm, width and height 3.6 mm each. Meets automotive standard AEC-Q101. Explore more semiconductor products and components at EnvMart for diverse industrial and commercial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 1 ampere.
The peak reverse repetitive voltage rating is 600 volts.
This model comes in a DO-15 package type with a single diode configuration.
The maximum forward voltage drop is 1.25 volts.
The operating temperature range spans from -65°C to 175°C.
The peak reverse recovery time is 50 nanoseconds, making it suitable for fast switching applications.
The peak non-repetitive forward surge current rating is 35 amperes.
This diode has a pin count of 2, accommodating typical rectifier circuitry.
The physical dimensions are 7.6 mm in length and 3.6 mm in both width and height.
This diode complies with the automotive standard AEC-Q101.
The MUR160 is classified as a switching rectifier type.
This diode is suitable for applications in power management, industrial power conversion, and automotive electronics.
