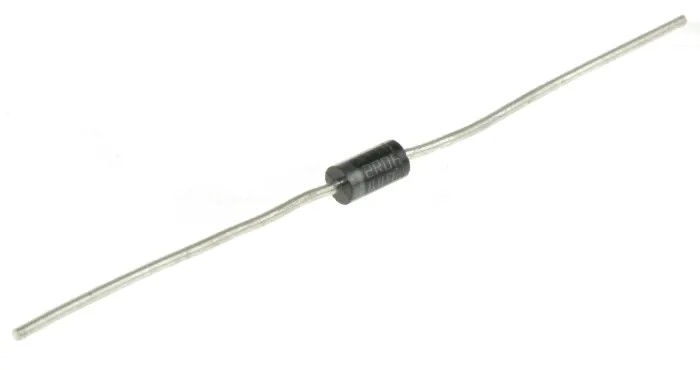

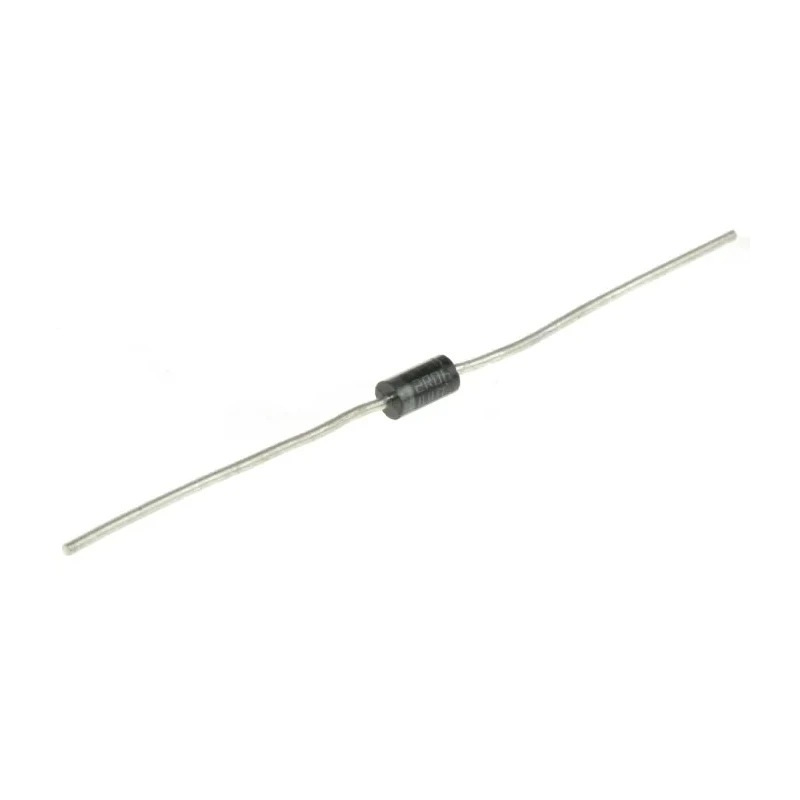

STMicroelectronics Switching Diode Single Silicon Junction 2 A 600 V DO-41 2-Pin STTH2R06

STMicroelectronics STTH2R06 is a high-performance switching diode with a single silicon junction configuration. It supports a maximum forward current of 2 A and can withstand a peak reverse voltage of 600 V, making it suitable for various industrial and electronic applications requiring reliable high-speed switching.

The device is housed in a DO-41 package with two pins and is intended for through-hole mounting, enabling straightforward incorporation into printed circuit boards. It exhibits a low maximum forward voltage drop of 1.7 V, contributing to efficient power handling and minimal losses during operation.

The diode features a fast peak reverse recovery time of 35 ns, which is critical for applications demanding rapid switching and high-frequency performance such as power supplies, motor drives, and industrial controllers. It operates reliably over a wide temperature range from -40°C to 175°C, ensuring stability under harsh environmental conditions.

Physically, the STTH2R06 has compact dimensions with a length of 5.2 mm and a diameter and width of 2.71 mm. It can safely endure a peak non-repetitive forward surge current of up to 40 A, providing robustness against transient overloads encountered in practical scenarios.

Although the diode does not carry specific automotive standards compliance, it is ideal for general-purpose switching applications in electronics, industrial automation, and power management systems.

Single silicon junction diode designed for switching applications. Maximum forward current rating of 2 amperes ensuring robust performance. Peak reverse voltage of 600 volts suitable for high voltage circuits. Low peak reverse recovery time of 35 nanoseconds for fast switching.

Through-hole mount type with 2-pin DO-41 package for easy PCB integration. Maximum forward voltage drop of 1.7 volts for efficient conduction. Wide operating temperature range from -40°C to 175°C enabling durability. Compact dimensions with length 5.2 mm and diameter/width 2.71 mm.

Peak non-repetitive forward surge current up to 40 amperes. Ideal for power electronics, industrial automation, and switching regulator circuits. Explore more semiconductor components and Switching Diodes in the Electronics & Electricals category on EnvMart for comprehensive industrial and commercial applications.
