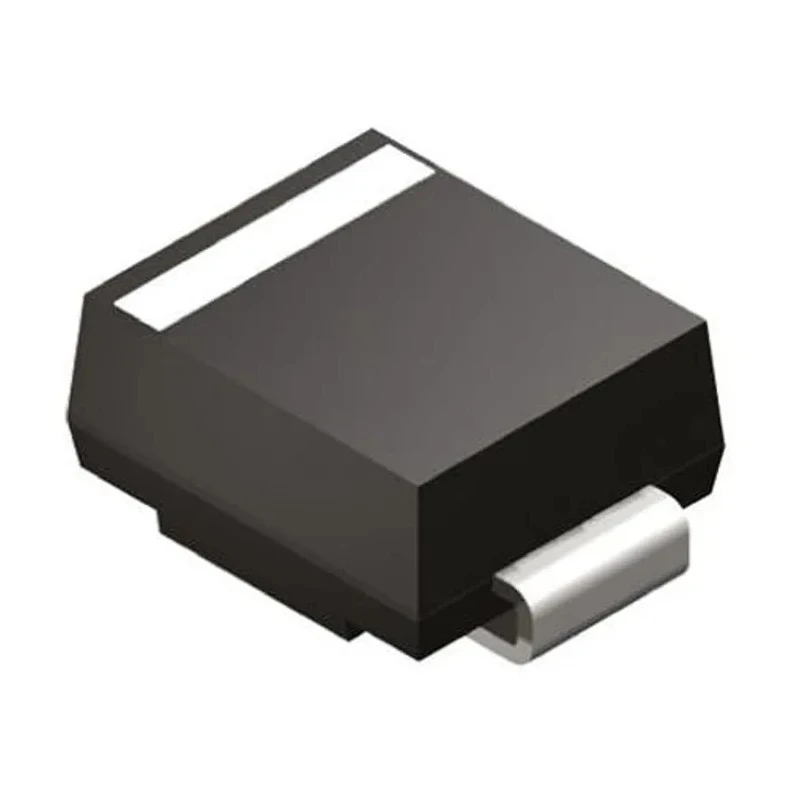

DiodesZetex Switching Diode Single Silicon Junction 30 A 3 V Forward Voltage Surface Mount SMB Package 2-Pin S1KB-13-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 2.3mm |
| Length | 4.57mm |
| Model | S1KB-13-F |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | S1KB |
| Maximum Operating Temperature | 150°C |
| Package Type | SMB |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 3V |
| Peak Reverse Recovery Time trr | 3ns |
| Maximum Forward Current If | 30A |
Key Features
- Rated for a maximum operating temperature of 150°C ensuring effective thermal performance.
- Features a fast peak reverse recovery time of 3 ns for high-speed switching applications.
- Constructed with a 2-pin SMB package type suitable for surface mounting.
- Designed to operate reliably from -65°C minimum to 150°C maximum temperature.
- Measures 4.57 mm in length, 3.94 mm in width, and 2.3 mm in height for compact PCB integration.
- Supports a peak non-repetitive forward surge current of 30 A for transient conditions.
- Appropriate for industrial, automotive, and electronic equipment requiring efficient power switching.
Product Description
DiodesZetex S1KB-13-F is a high-performance single switching diode designed with silicon junction technology. Rated for a maximum forward current of 30 A and a forward voltage drop of 3 V, this diode is optimized for surface mount applications in SMB packages, offering compact dimensions (4.57 mm length, 3.94 mm width, and 2.3 mm height) that facilitate space-saving PCB layouts.
This device features a fast peak reverse recovery time of 3 ns which makes it highly suitable for high-frequency switching and power conversion circuits commonly found in industrial and automotive electronics.
The diode operates reliably over a temperature range from -65°C to 150°C, supporting robust operation in demanding environments. Its peak non-repetitive forward surge current of 30 A allows it to handle transient surges effectively, enhancing circuit protection and durability.
The 2-pin SMB surface mount configuration enables automated assembly, improving manufacturing efficiency and product reliability in electronics manufacturing processes. This switching diode is ideal for a broad range of applications including power supplies, motor controls, and industrial automation, ensuring high efficiency and low power losses.
Rated for 30 A forward current at 3 V forward voltage drop. Compact SMB surface mount package for space-efficient design. Fast 3 ns peak reverse recovery time for high-speed switching. Wide operating temperature range from -65°C to 150°C.
Can sustain peak non-repetitive surge currents of 30 A. Designed for use in automotive and industrial electronic systems. 2-pin configuration supports easy PCB assembly.
Explore more semiconductor components from DiodesZetex and related Switching Diode products in the Electronics & Electricals category to meet your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode is rated for a maximum operating temperature of 150°C, ensuring effective thermal performance in various applications.
This model has a maximum forward voltage drop of 3 V, which is crucial for efficient power switching operations.
It features a fast peak reverse recovery time of 3 ns, making it suitable for high-speed switching applications.
The SMB package measures 4.57 mm in length, 3.94 mm in width, and 2.3 mm in height, allowing for compact PCB integration.
It can sustain a peak non-repetitive forward surge current of 30 A, which enhances its ability to handle transient conditions effectively.
The diode operates reliably from a minimum temperature of -65°C, making it suitable for demanding environments.
This model is designed with a 2-pin configuration, which supports easy PCB assembly and integration.
It is constructed for surface mounting, which facilitates automated assembly in manufacturing processes.
This diode is appropriate for a broad range of applications including power supplies, motor controls, and industrial automation.
The S1KB-13-F is configured as a single diode, optimized for various electronic applications.
This model belongs to the S1KB series, which includes other similar semiconductor components.
The diode is manufactured in India, contributing to its global availability in the electronics market.
