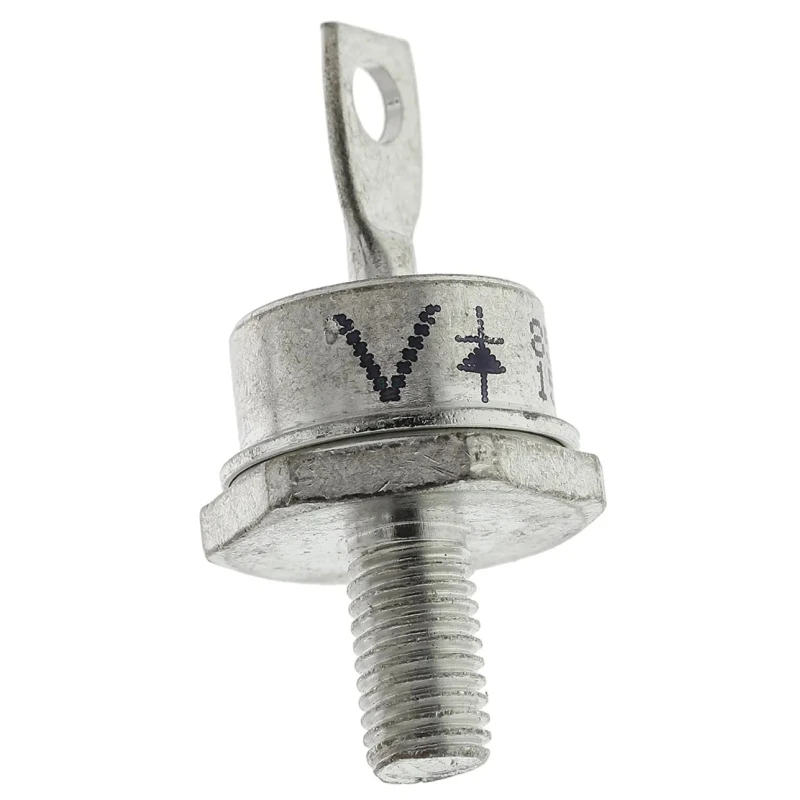

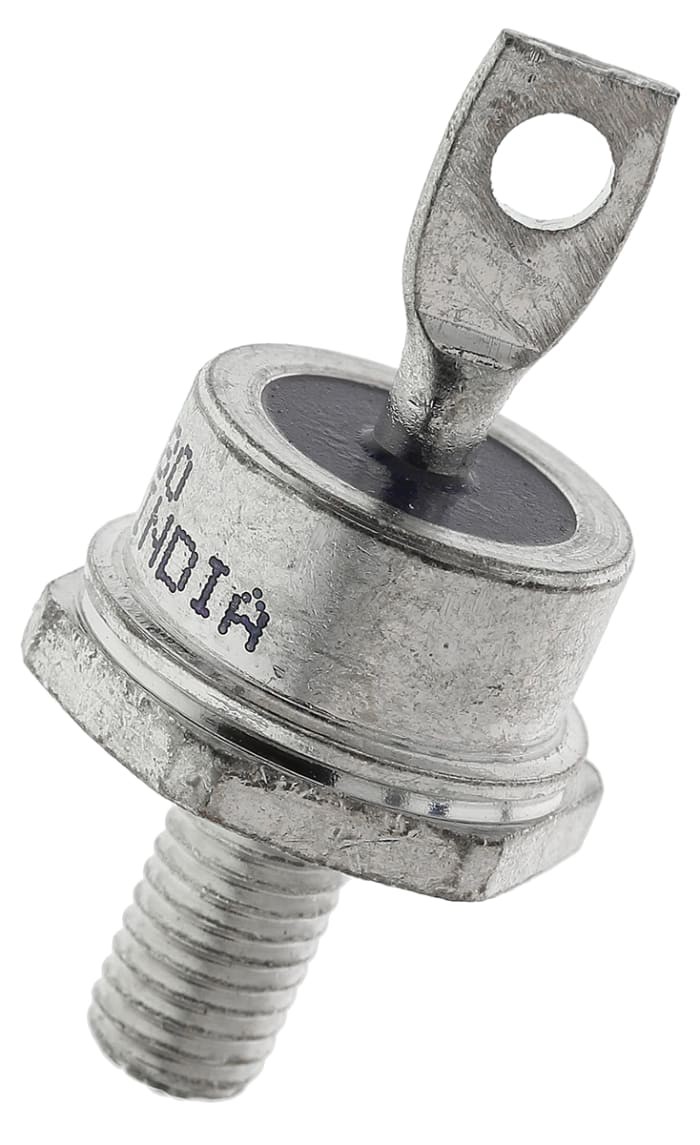

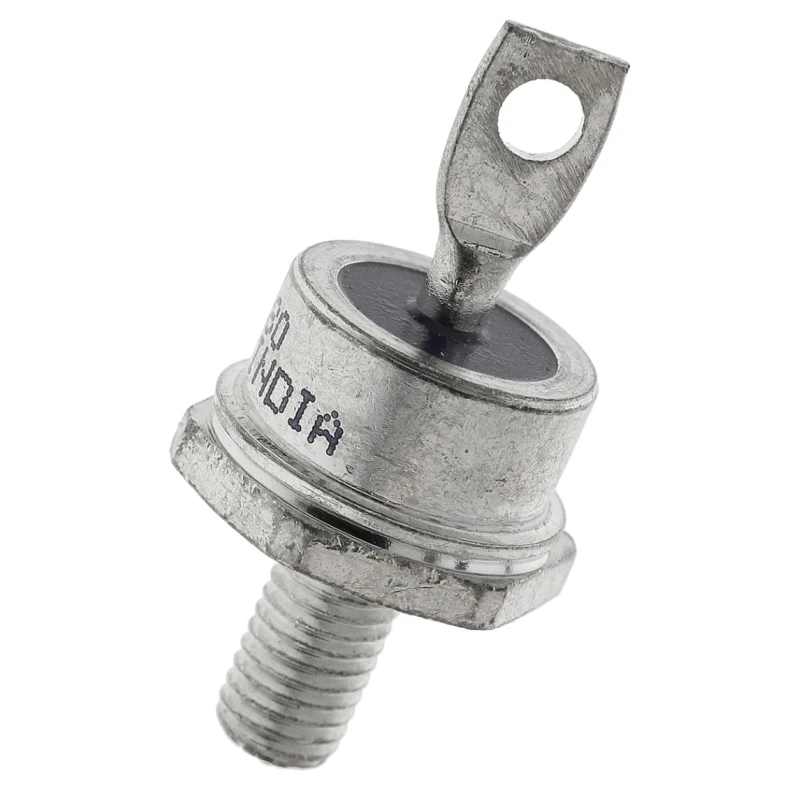

Vishay 800 V 85 A Switching Diode 2-Pin DO-203AB VS-85HFR80
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-85HFR80 |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | 85HFR |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 85A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.8kA |
| Maximum Forward Voltage Vf | 1.2V |
| Vishay 1200 V 85 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
Key Features
- Mount type is screw for secure installation.
- Standard recovery rectifier diode optimized for power applications.
- Operates between temperature range -65°C to 180°C.
- Features 1.2 V maximum forward voltage and 9 mA peak reverse current.
- Pin count is 2 with stud anode diode configuration.
- Capable of withstanding 1.8 kA peak non-repetitive forward surge current.
- Package type DO-203AB ensuring reliable mechanical and electrical performance.
Product Description
Vishay VS-85HFR80 is a robust switching diode designed for high power electronic applications requiring reliable rectification performance. It operates at a peak reverse repetitive voltage of 800 V and can handle a maximum continuous forward current of 85 A in a compact DO-203AB package type. Its screw mount type ensures firm and secure attachment in industrial and commercial semiconductor circuits.
This diode is a standard recovery rectifier, built to deliver efficient switching with low power loss and high reliability. It offers a maximum forward voltage of 1.2 V and peak reverse current of 9 mA, supporting stable operation in harsh electrical environments. The device supports a wide operating temperature range from -65°C to 180°C, suitable for demanding industrial and automotive conditions.
Physically, it measures 20.02 mm in length, 17.35 mm in width, and 22.9 mm in height, making it a versatile choice for power supply, converter, and inverter applications. The diode configuration features a stud anode with 2 pins, adhering to industry standard design for seamless integration in various semiconductor circuits.
Common industrial uses include power management in electronic devices, switching applications, and rectification in power supplies, making it suitable for electronics manufacturing, industrial automation, and automotive electronics sectors.
For engineers and designers, the Vishay VS-85HFR80 provides a dependable solution with high surge capability, rated for 1.8 kA peak non-repetitive forward surge current, enhancing durability under transient conditions.
Mount type is screw for secure installation. Standard recovery rectifier diode optimized for power applications. Operates between temperature range -65°C to 180°C. Features 1.2 V maximum forward voltage and 9 mA peak reverse current.
Pin count is 2 with stud anode diode configuration. Capable of withstanding 1.8 kA peak non-repetitive forward surge current. Dimensions: Length 20.02 mm, Width 17.35 mm, Height 22.9 mm. Package type DO-203AB ensuring reliable mechanical and electrical performance.
Explore Vishay brand products and Switching Diodes categories at EnvMart for your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-85HFR80 is 85 A.
This model has a peak reverse repetitive voltage rating of 800 V.
The dimensions of the VS-85HFR80 are 20.02 mm in length, 17.35 mm in width, and 22.9 mm in height.
It operates within a temperature range of -65°C to 180°C.
The diode features a screw mount type for secure installation.
The maximum forward voltage is 1.2 V.
The peak reverse current is specified at 9 mA.
This diode is packaged in a DO-203AB type.
It can withstand a peak non-repetitive forward surge current of 1.8 kA.
The diode configuration is a stud anode with a pin count of 2.
The country of origin for the Vishay VS-85HFR80 is India.
This model is classified as a standard recovery rectifier diode optimized for power applications.
