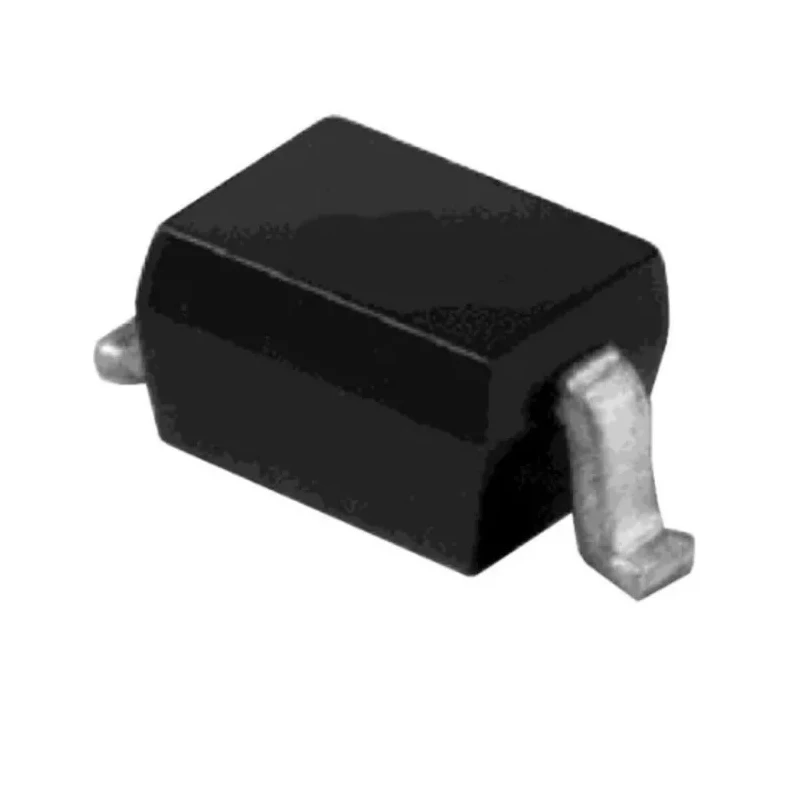

Toshiba 30 V 5 A Surface Mount Schottky Barrier Switching Diode 2-Pin USC Package CUS08F30,H3F(T)

The Toshiba CUS08F30,H3F(T) is a high-performance surface mount Schottky barrier diode designed primarily for high speed switching applications. Featuring a silicon epitaxial construction, this Switching Diode is enclosed in a compact USC package, which corresponds to the popular SOD-323 and SC-76 footprints. This form factor facilitates easy mounting on printed circuit boards where space constraints exist.

Capable of handling a maximum continuous forward current of 5 amperes, this diode supports robust operation under significant load currents. Its peak reverse repetitive voltage is rated at 30 volts, providing solid reverse voltage withstand capabilities suitable for a variety of power circuits.

With a low forward voltage drop of just 0.45 volts, the diode minimizes conduction losses, enhancing overall circuit efficiency and reducing heat dissipation requirements. The device operates reliably across a wide temperature range from -55°C up to 125°C, making it suitable for industrial, automotive, and commercial electronic applications exposed to varying environmental conditions.

The peak reverse current leakage is limited to 50 microamperes, ensuring minimal leakage currents and improved device reliability. Additionally, it supports a peak non-repetitive forward surge current of 5 amperes, capable of withstanding transient current spikes during switching events.

The CUS08F30,H3F(T) diode complies with RoHS environmental standards, guaranteeing the absence of hazardous substances in its manufacture, aligning with current electronic safety and environmental regulations.

Industrial use cases for this diode include power management circuits, rectification in DC power supplies, protection in automotive electronics, and fast switching elements in telecommunications equipment. Its reliable performance and compact design make it a preferred component in diverse semiconductor applications.

Maximum continuous forward current of 5 amperes ensures reliable performance under load. Peak reverse repetitive voltage rated at 30 volts for stable operation. Low forward voltage of 0.45 volts reduces power loss and improves efficiency.

Wide operating temperature range from -55°C to 125°C suitable for harsh environments. Compact USC package which is equivalent to SOD-323 and SC-76 packages for easy PCB integration. Peak reverse current is minimal at 50 microamperes for low leakage.

Compliant with RoHS standards ensuring environmental and safety adherence. Peak non-repetitive forward surge current rating of 5 amperes. Explore more Schottky diodes and rectifiers on EnvMart for advanced electronic component solutions suitable for industrial and commercial applications.
