| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | 74LVCE1G04SE-7 |
| Width | 1.35mm |
| Mount Type | Surface |
| Output type | Totem Pole |
| Series | 74LVCE1G04 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-353 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Inverter |
| Minimum Supply Voltage | 1.4V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 3.4ns |
| Maximum Low Level Output Current | 32mA |

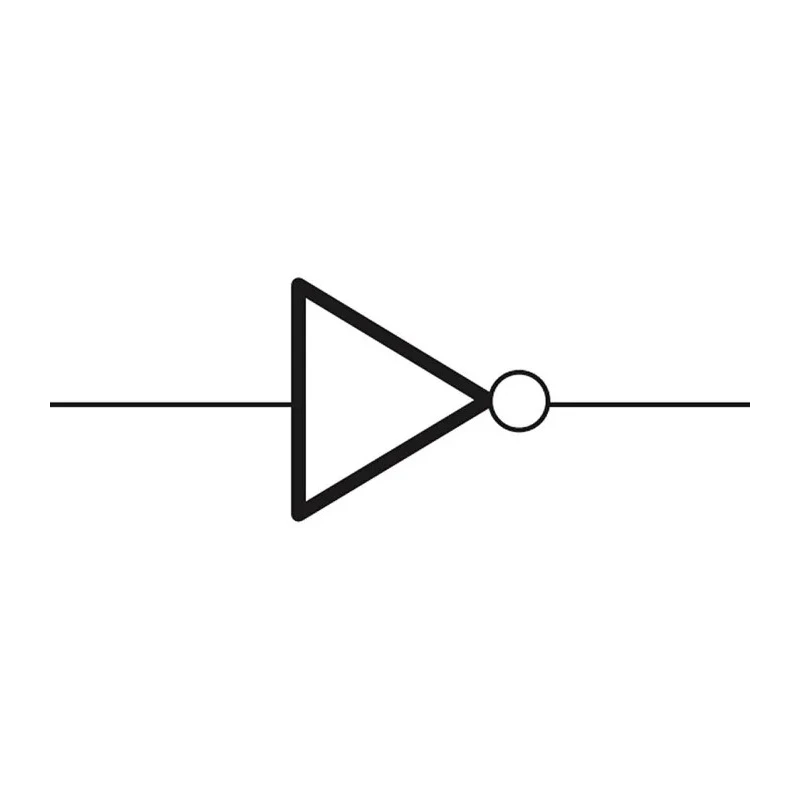

DiodesZetex 74LVCE1G04SE-7 is an advanced inverter logic IC optimized for electronic circuit applications requiring reliable signal inversion with high-speed switching capability. Packaged in a compact 5-Pin SOT-353 surface mount package, this device integrates one logic element on a chip designed for totem pole output type.
The IC operates over a wide voltage range from 1.4V minimum supply voltage to 5.5V maximum, making it suitable for low voltage logic circuits. It supports an output current of -32mA at the high level and 32mA at the low level ensuring robust signal drive capability.
Key performance includes a maximum propagation delay time of just 3.4 nanoseconds measured at a specified load capacitance, enabling rapid logic transitions needed in high-speed digital systems. The device has no Schmitt trigger input function and belongs to the LVC logic family which offers compatibility with low voltage CMOS technologies.
Physical dimensions are optimized for space-constrained applications with a length of 2.2mm, width of 1.35mm, and thickness of 1mm. It operates reliably within industrial temperature ranges from -40°C to 85°C, suitable for various embedded electronics, automation, and industrial control use cases.
This product does not carry automotive standard certifications and has no additional specified approvals, ensuring focused application in general semiconductor inverter sectors. It is designed for surface mount technology ensuring easy PCB assembly.
Operates at supply voltages from 1.4V to 5.5V. Max propagation delay is 3.4ns for fast switching. Totem pole output type for effective signal driving. Single logic element per chip for efficient circuit design. Surface mount package SOT-353 suitable for compact layouts.
Wide operating temperature range from -40°C to 85°C. Compact dimensions: 2.2mm x 1.35mm x 1mm.
This inverter IC is applicable in industrial, automation, electronic component manufacturing, and embedded system applications requiring high performance with low power consumption. Explore more inverter ICs and semiconductor products on EnvMart to find components tailored for your electronic design and manufacturing needs.
Explore more products in our Inverters ICs category.
Interested in this product? Drop us an email and we will let you know when it's available for order.
