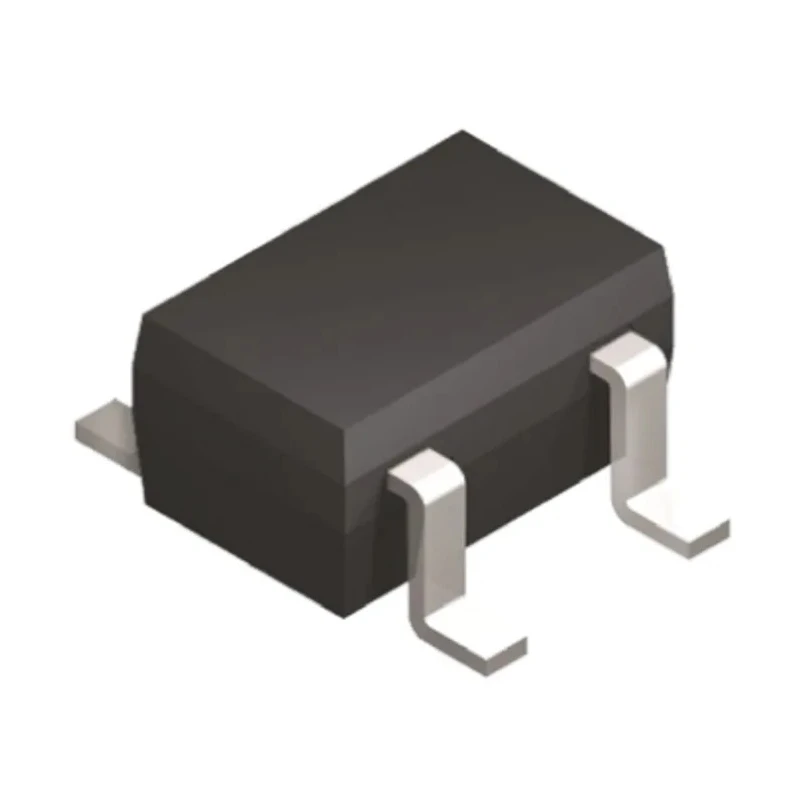

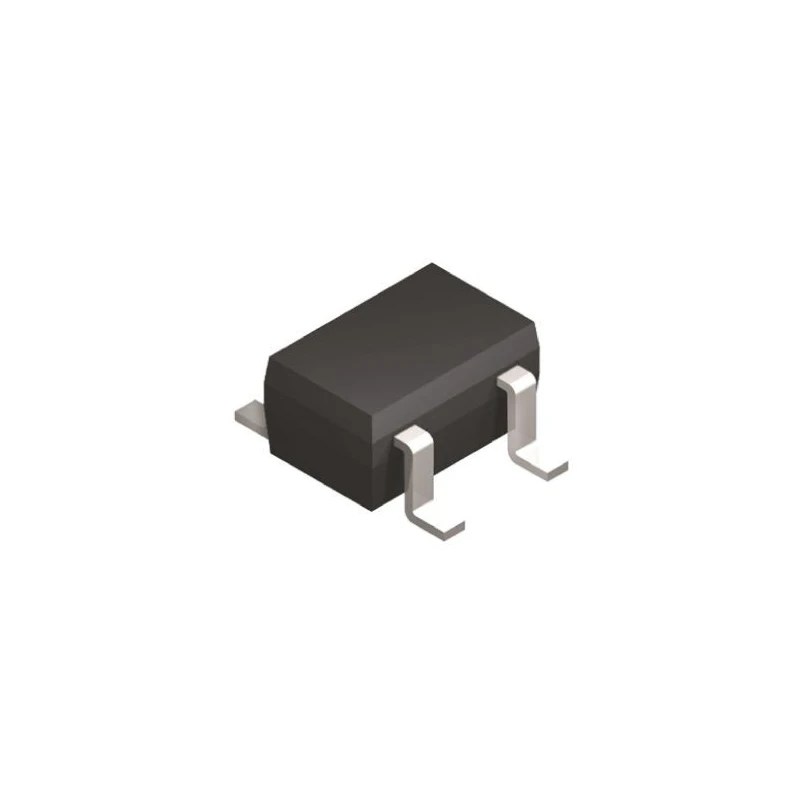

onsemi Inverter Logic IC LVCMOS 5-Pin SC-70 NC7SV04P5X

onsemi NC7SV04P5X inverter is a high-performance logic IC that provides a single inverter function using LVCMOS logic family. It comes in a compact 5-pin SC-70 surface mount package ideal for space-constrained applications. This inverter IC operates with a supply voltage between 0.9V and 3.6V and supports maximum operating temperatures from -40°C to 85°C, making it suitable for a wide range of industrial and commercial electronic devices.

The device features a maximum propagation delay time of 5.2ns at typical load capacitance, delivering fast switching speeds essential for modern digital circuits. Output current capability includes ±24mA at high and low logic levels, ensuring reliable signal driving capabilities without additional buffering in many designs.

Compact dimensions of 2mm length, 1.25mm width, and 1mm height optimize PCB real estate usage. The SC-70 package supports surface mounting, reducing assembly complexity and enhancing circuit density. The inverter does not employ Schmitt trigger input functionality, aligning it with conventional inverter logic needs in various design architectures.

onsemi's NC7SV04P5X reduces routing complexity and power consumption in logic circuits, benefiting embedded system developers, industrial automation applications, and laboratory instrumentation requiring reliable logic inversion. While lacking automotive certification, its broad operating temperature and supply voltage range make it broadly applicable.

The IC uses LVCMOS logic family suitable for various semiconductor applications. Single inverter element per chip providing fast logic inversion. Compact 5-pin SC-70 surface mount package dimensions 2x1.25x1 mm. Wide supply voltage range: 0.9V to 3.6V.

Operating temperature range from -40°C to 85°C for industrial use. Max propagation delay of 5.2ns at typical capacitive load. Output current ±24mA to drive downstream logic directly. Designed for reduced routing complexity and EMI minimization.

Ideal for industrial, laboratory, and embedded digital electronics. Standard semiconductor without automotive compliance.

This inverter IC from onsemi offers reliable, low-power logic inversion critical for industrial automation, electronic manufacturing, and embedded system development. Its small form factor and robust performance make it a dependable component for modern electronic designs. Explore more semiconductor and logic IC products in the EnvMart catalog to find compatible components and enhance your designs.
