onsemi Logic Inverter IC NC7SV04P5X 900mV-3.6V Supply, 5-Pin SC-70 Package

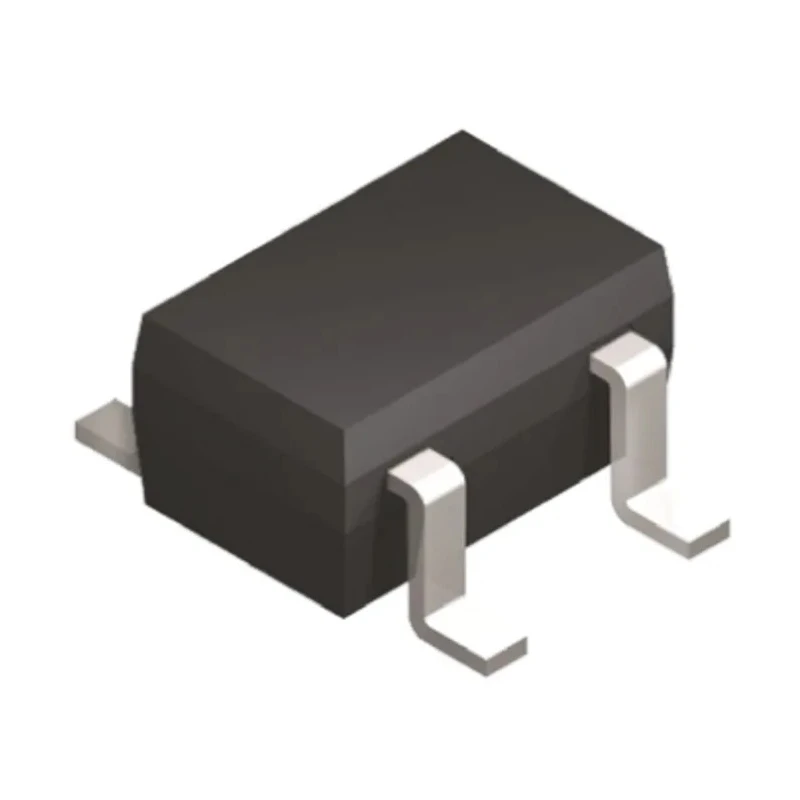

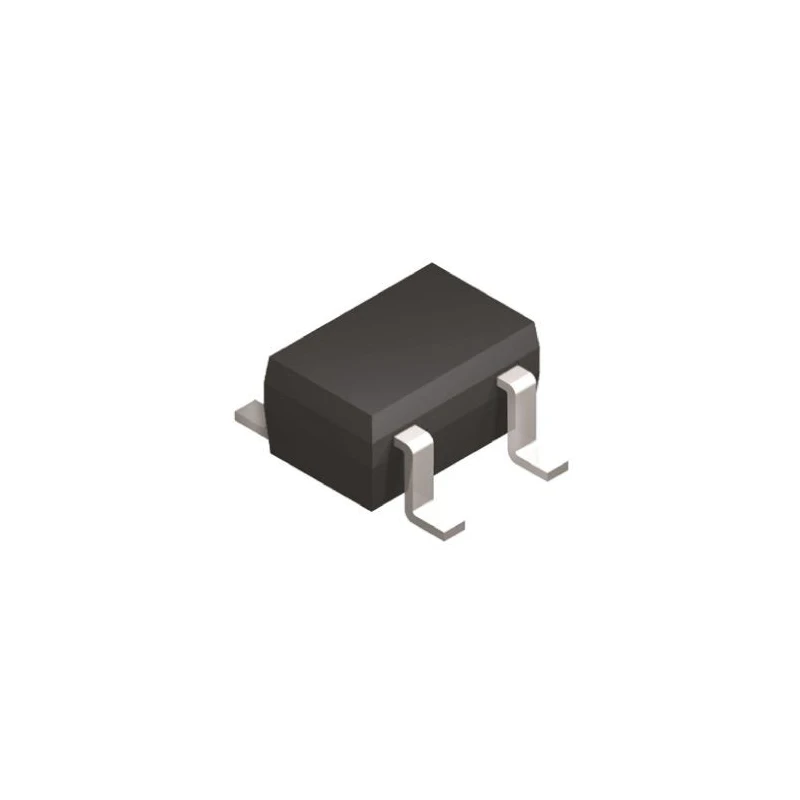

onsemi NC7SV04P5X is a high-performance logic inverter IC designed for low power and high-speed applications within the LVCMOS logic family. Packaged in a compact 5-pin SC-70 surface mount package measuring 2mm by 1.25mm by 1mm, this device delivers a single inverter function with a maximum propagation delay of 5.2 nanoseconds at capacitive load.

This inverter operates over a broad supply voltage range from 900mV to a maximum of 3.6V making it suitable for modern low-voltage electronic circuits. The operating temperature extends from -40°C up to 85°C, allowing deployment in demanding industrial and commercial environments.

The device delivers a maximum high-level output current of -24mA and maximum low-level output current of 24mA, supporting efficient switching performance. Absence of a Schmitt trigger input ensures straightforward logic inversion with fast response times.

The SC-70 package is ideal for surface mounting on compact PCBs, reducing routing complexity and minimizing EMI generation. This inverter IC finds applications in industrial control systems, consumer electronics, signal processing circuits, and other electronic manufacturing sectors requiring reliable logic inversion.

onsemi's NC7SV04P5X provides a robust solution in the TinyLogic Ultra-Low Power family, engineered for environments demanding high speed and low voltage operation. The component’s surface mount packaging and proven performance ensure compatibility with automated assembly lines and high-volume manufacturing processes.

The device operates with a supply voltage range from 900mV to 3.6V. Maximum propagation delay time is 5.2 nanoseconds at capacitive load. Packaged in a 5-pin SC-70 surface mount small outline package. Operating temperature from -40°C to 85°C extends suitability for industrial environments.

Logic family is LVCMOS with one inverter element per chip. Maximum output currents are -24mA (high) and 24mA (low) for efficient switching. No Schmitt trigger input included for standard logic inversion. Compact package dimensions 2mm x 1.25mm x 1mm reduce PCB space usage.

The NC7SV04P5X inverter IC is suited for electronics manufacturing, industrial automation, signal conditioning, and embedded system applications. It integrates well into designs requiring low power consumption and high switching speeds. Explore wide selections of semiconductor components and logic ICs at EnvMart for all your industrial and commercial needs.
