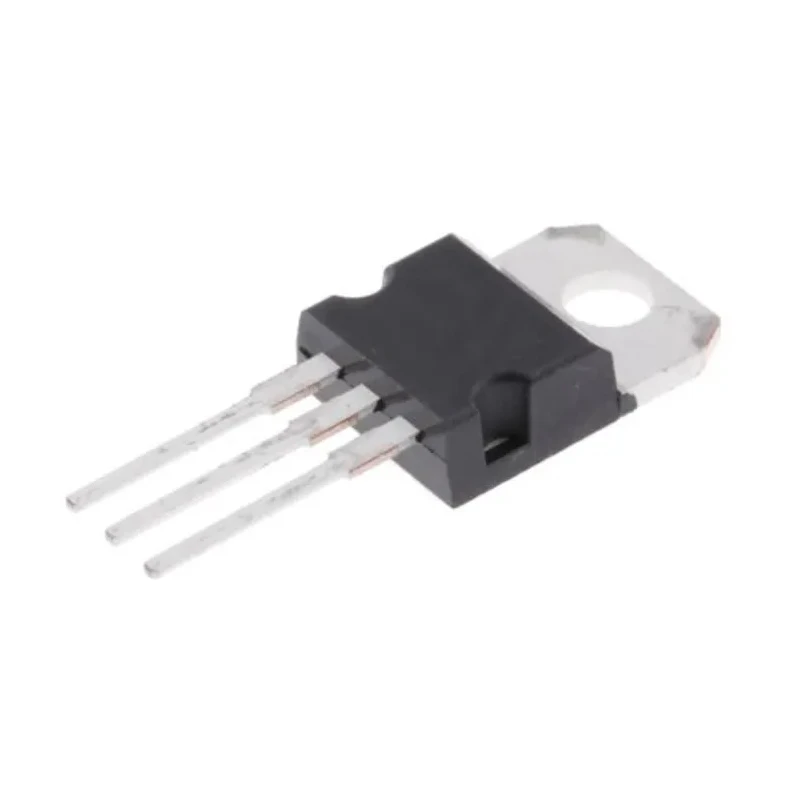

STMicroelectronics Through Hole 3-Pin TRIAC 500 V Gate Trigger 1 V T3050H-6T
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | T3050H-6T |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 30A |
| Repetitive Peak Reverse Voltage VDRM | 500V |
| Surge Current Rating | 284A |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 75mA |
| Maximum Gate Trigger Voltage Vgt | 1V |
| Peak Gate Power Dissipation | 1W |
Key Features
- Supports rated average on-state current of 30 A.
- Through hole mount with TO-220 package for robust installation.
- Maximum gate trigger current of 50 mA ensures reliable switching.
- Has a repetitive peak reverse voltage rating of 500 V for durability.
- Surge current rating of 284 A optimizes transient handling.
- Single configuration with 3 pins suitable for universal motor control.
- Operating temperature range from -40°C up to 150°C for high thermal endurance.
- Low thermal resistance with clip bonding and internal ceramic pad for voltage insulation up to 2500 VRMS.
Product Description
STMicroelectronics T3050H-6T is a high current 3-pin TRIAC designed for through hole mounting using a TO-220 package. Rated for a repetitive peak reverse voltage of 500 V and a rated average on-state current of 30 A, this device delivers enhanced dynamic performance and low power loss, making it suitable for demanding industrial and appliance applications.
Engineered specifically to operate up to a temperature of 150°C, it features excellent thermal dissipation supported by an internal ceramic pad providing voltage insulation rated at 2500 VRMS. The device incorporates ST Snubberless™ technology that allows for minimal commutation and superior noise immunity, which ensures reliable control of universal motors and inductive loads commonly found in power tools and household appliances.
This TRIAC supports a maximum gate trigger current of 50 mA and a maximum trigger voltage of 1 V with a maximum holding current of 75 mA. Additionally, it has a surge current rating of 284 A ensuring robustness against transient surges.
The TO-220 package and clip bonding improve the thermal resistance characteristics, allowing heatsink size optimization which results in cost-efficient and space-saving solutions when compared to electromechanical alternatives.
Applications include control of AC actuators in household appliances, industrial systems, and power tools thanks to its high noise immunity and strong current handling capabilities.
Supports rated average on-state current of 30 A. Through hole mount with TO-220 package. Maximum gate trigger current of 50 mA. Repetitive peak reverse voltage rating of 500 V. Surge current rating of 284 A. Single configuration with 3 pins.
Operating temperature range: -40°C to 150°C. Low thermal resistance enhanced with clip bonding. ST Snubberless™ technology for minimal commutation and noise immunity.
Explore the range of high-quality TRIAC components from STMicroelectronics and industrial discrete semiconductors available on EnvMart for reliable industrial and electronic applications.
Explore more products in our TRIACs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 150°C.
It supports a rated average on-state current of 30 A.
The repetitive peak reverse voltage rating is 500 V.
The surge current rating is 284 A, which optimizes transient handling.
This model features a single configuration with 3 pins.
The maximum gate trigger current is 50 mA, ensuring reliable switching.
It is designed for through hole mounting with a TO-220 package.
The minimum operating temperature is -40°C.
The maximum holding current is 75 mA.
It incorporates ST Snubberless™ technology for minimal commutation and superior noise immunity.
The dimensions are 15.9 mm in height and 10.4 mm in length.
This model complies with RoHS standards.
