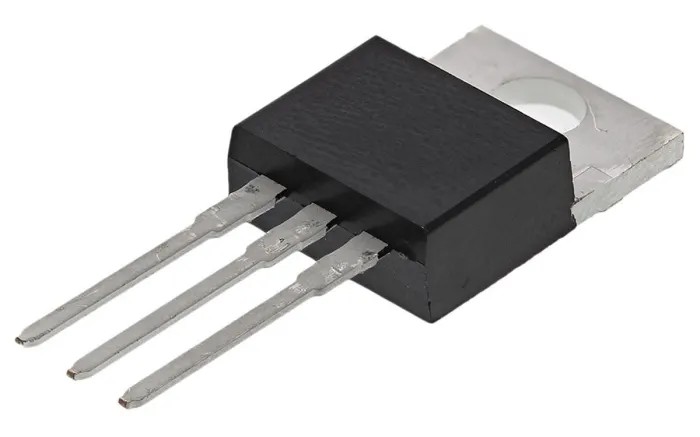

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTA16-600CRG
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTA16-600CRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 16A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 168A |
| Maximum Gate Trigger Current Igt | 50mA |
| Maximum Holding Current Ih | 25mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 2mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current of 16 A for robust power handling.
- Through hole mount type with TO-220 package for easy soldering and reliable connection.
- Maximum gate trigger current of 50 mA ensuring effective triggering of the device.
- Repetitive peak reverse voltage of 600 V to withstand high voltage spikes.
- Surge current rating of 168 A to tolerate transient overloads.
- Compact dimensions measuring 15.9 mm in height and 10.4 mm in length for efficient PCB space usage.
- Operating temperature range from -40°C up to 125°C for wide environmental applications.
- Single configuration TRIAC suitable for AC power control.
Product Description
STMicroelectronics BTA16-600CRG is a high-performance 3-pin TRIAC designed for through hole mounting in a TO-220 package. Rated for 600 V repetitive peak reverse voltage and an average on-state current of 16 A, this semiconductor device is ideal for reliable AC power control in industrial and electronic equipment.
The device features a gate trigger voltage of 1.3 V and a maximum gate trigger current of 50 mA, ensuring efficient triggering control. It also supports a surge current rating of 168 A to withstand transient power surges, making it suitable for demanding environments. Its operating temperature range from -40°C to 125°C accommodates diverse industrial conditions.
With compact dimensions of 15.9 mm height and 10.4 mm length, the BTA16-600CRG provides space-saving benefits on printed circuit boards. This single configuration TRIAC delivers consistent performance with a maximum holding current of 25 mA and a peak gate power dissipation of 1 W.
Manufactured under strict quality standards, this component is commonly used in power regulation, motor control, lighting dimmers, and heating applications within industrial, HVAC, and home appliance systems.
Rated average on-state current of 16 A for robust power handling. Through hole mount type with TO-220 package for easy soldering and reliable connection. Maximum gate trigger current of 50 mA ensuring effective triggering of the device.
Repetitive peak reverse voltage of 600 V to withstand high voltage spikes. Surge current rating of 168 A to tolerate transient overloads. Compact dimensions measuring 15.9 mm in height and 10.4 mm in length for efficient PCB space usage.
Operating temperature range from -40°C up to 125°C for wide environmental applications. Single configuration TRIAC suitable for AC power control. Maximum gate trigger voltage of 1.3 V and maximum holding current of 25 mA for precise control.
Peak gate power dissipation rated at 1 W and peak on-state voltage of 1.55 V. Manufactured in China with new product condition.
Explore EnvMart for a wide selection of discrete semiconductor components including TRIACs from trusted brands such as STMicroelectronics for your industrial and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 16 A, suitable for robust power handling.
The maximum repetitive peak reverse voltage is 600 V, allowing it to withstand high voltage spikes.
This TRIAC has a surge current rating of 168 A, enabling it to tolerate transient overloads.
The dimensions of this model are 15.9 mm in height and 10.4 mm in length, making it compact for PCB space usage.
The maximum gate trigger current is 50 mA, ensuring effective triggering of the device.
It operates within a temperature range of -40°C to 125°C, accommodating diverse industrial conditions.
This model uses a through hole mount type with a TO-220 package for easy soldering and reliable connection.
The maximum holding current for the BTA16-600CRG is 25 mA, which allows for precise control.
The peak gate power dissipation is rated at 1 W, which is important for managing power levels during operation.
This TRIAC is a single configuration type suitable for AC power control applications.
The peak on-state voltage is rated at 1.55 V, which is relevant for its operational characteristics.
This component is manufactured in China, adhering to strict quality standards.
