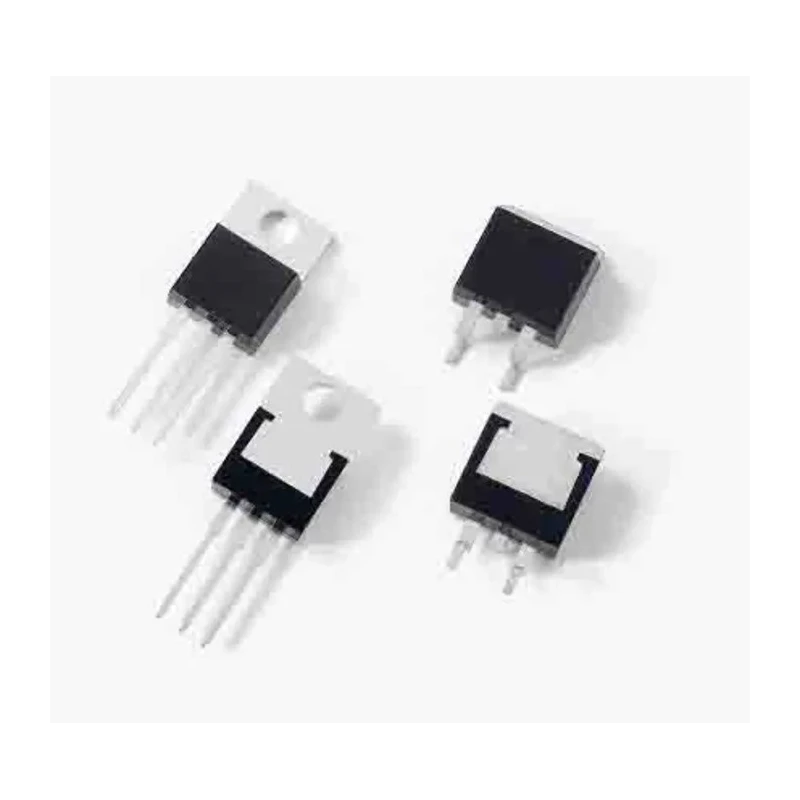

Littelfuse Through Hole 3-Pin TRIAC, 600 V Repetitive Peak Reverse Voltage, Gate Trigger Voltage 1.3 V QV6016LH4TP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 15.75mm |
| Length | 10.67mm |
| Model | QV6016LH4TP |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -45°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 200A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Maximum Gate Trigger Current Igt | 35mA |
| Maximum Holding Current Ih | 50mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.6V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 0.5W |
Key Features
- This TRIAC supports a rated average on-state current of 200 A.
- Featuring a TO-220 package type for robust mechanical and thermal performance.
- Maximum gate trigger current is 35 mA ensuring reliable triggering.
- Operational temperature range from -45°C up to 150°C for versatile environments.
- Halogen-free construction with internal isolation enhances durability and safety.
- High dv/dt capability makes it ideal for inductive load switching.
- Peak gate power dissipation is 0.5 W, limiting gate stress.
- The device features a repetitive peak off-state current of 5 μA to reduce leakage.
Product Description
Littelfuse QV6016LH4TP is a Through Hole 3-Pin TRIAC capable of handling a repetitive peak reverse voltage of 600 V and gate trigger voltage of 1.3 V, designed primarily for AC switching and phase control applications. It excels particularly in environments requiring high commutation performance such as inductive loads.
The device is packaged in a TO-220 casing, which is mechanically and thermally robust to support high current operations. Its rated average on-state current is 200 A, allowing it to handle significant power levels reliably.
Constructed to be halogen-free and with high dv/dt capability, this TRIAC offers enhanced safety and performance in industrial and commercial electronic systems. The peak gate power dissipation rating is 0.5W, protecting the gate circuitry during operation while the maximum gate trigger current of 35 mA ensures precise triggering under various conditions.
Functional across a wide temperature range from -45°C to 150°C, it is suitable for demanding environments. The device features a maximum holding current of 50 mA and a low repetitive peak off-state current of 5 μA to minimize leakage when switched off.
Its compact form factor with length 10.67 mm and height 15.75 mm enables easy integration onto PCBs requiring space efficiency. Its single configuration with 3 pins supports straightforward mounting and connection in electronic circuit assemblies.
This TRIAC is ideal for use in industrial electronics, power controllers, HVAC systems, and phase control circuits requiring reliable switching under high voltage and current conditions.
Halogen-free and RoHS compliant, the QV6016LH4TP supports safer, environment-friendly manufacturing.
Set within Littelfuse’s range of discrete semiconductors, this model combines robustness and precision to meet professional electronic design standards. Thorough technical documentation and CAD models are available for advanced engineering integration.
Explore more high-performance components within the Semiconductor category on EnvMart for comprehensive electronic solutions.
Explore more products in our TRIACs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage for this model is 600 V.
This TRIAC has a rated average on-state current of 200 A.
It is packaged in a TO-220 casing, which provides robust mechanical and thermal performance.
The operational temperature range for this TRIAC is from -45°C to 150°C.
The maximum gate trigger current for this TRIAC is 35 mA.
The peak gate power dissipation rating is 0.5 W, which helps limit gate stress during operation.
The maximum holding current for this model is 50 mA.
The repetitive peak off-state current is 5 μA, which helps reduce leakage when switched off.
This model features a 3-pin configuration for easy mounting and connection.
Yes, this TRIAC is RoHS compliant, supporting safer, environmentally friendly manufacturing.
It excels in applications requiring high commutation performance, particularly for inductive loads.
The country of origin for this TRIAC is India.
