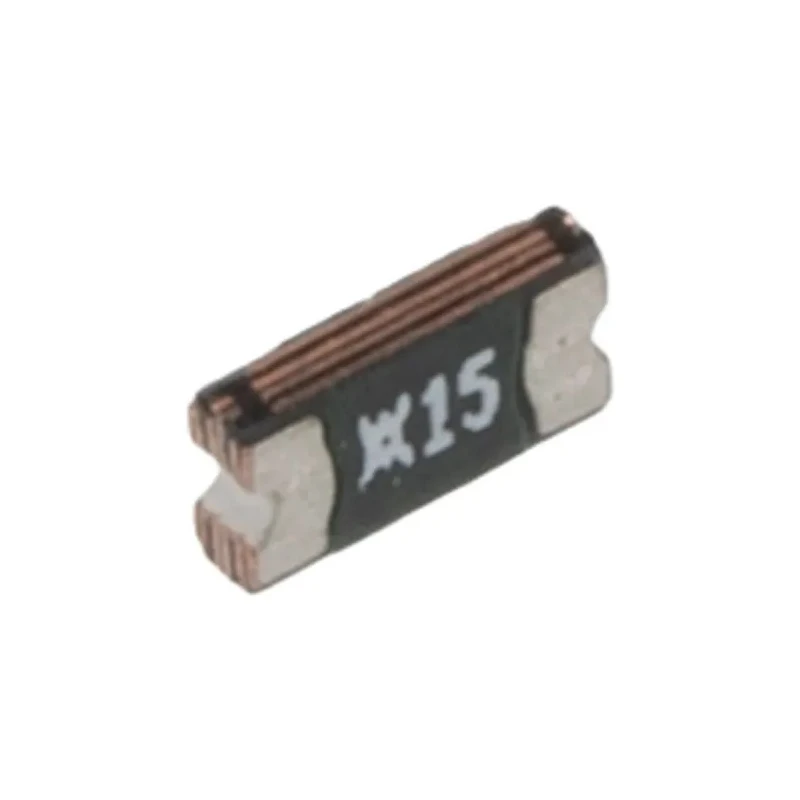

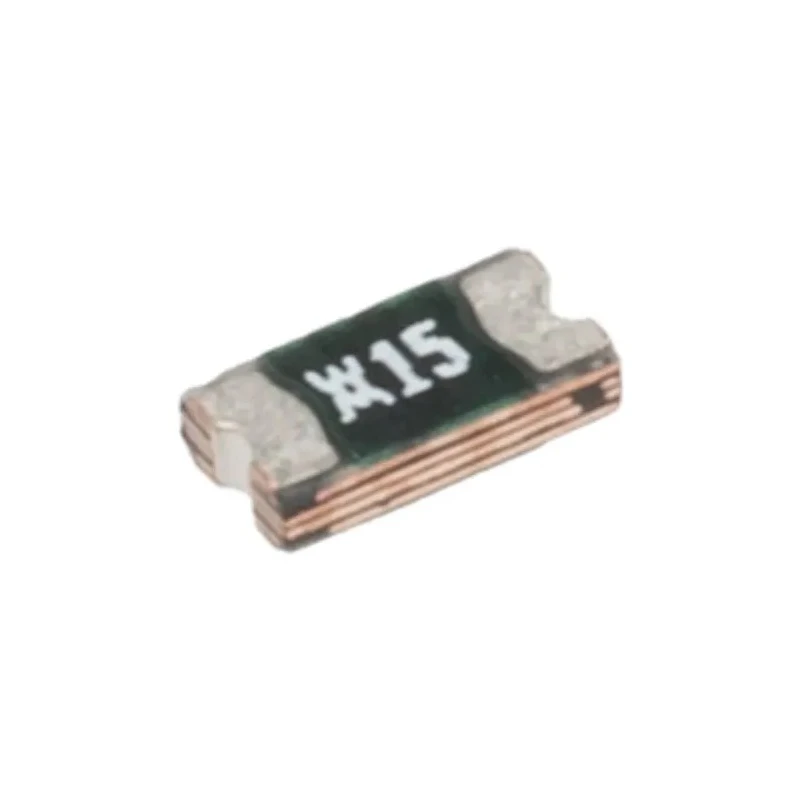

Littelfuse 1.5 A Resettable Fuse 6V DC Surface Mount nanoSMDC150F Series NANOSMDC150F-2

Littelfuse NANOSMDC150F-2 is a high-quality 1.5 A resettable fuse rated for 6V DC operation, part of the nanoSMDC150F surface mount technology series. This fuse rapidly switches from a low resistance state to a high resistance state under electrical overload or short circuit conditions, protecting sensitive electronic circuits effectively. Upon removal of fault conditions and power, it automatically resets, enabling thousands of maintenance-free protection cycles.

The small physical size of 3.4 mm length, 1.8 mm width, and 0.89 mm height makes it suitable for compact instrumentation, security systems, power supplies, automotive systems, and medical devices. The tin plated terminal material ensures excellent solderability and connectivity reliability.

Key features include a trip current of 3 A with a hold current and current rating both of 1.5 A, allowing precise current threshold protection for a variety of applications. Operating temperature up to 85°C and power dissipation rating of 0.8 W provide robustness for demanding environments.

This device helps in protecting power switching devices, instrumentation and control circuits, computers, audio-visual and telecommunication equipment by preventing damage from overcurrent faults. Its surface mount form factor reduces assembly complexity and requires no fuse holder, improving production efficiency.

Automatically resets after electrical faults for maintenance-free use. Compact and lightweight for space-saving applications. Trip current of 3 A protects against high current surges. Hold current of 1.5 A ensures accurate protection threshold.

Tin plated terminals improve solder joint reliability. Rated for continuous operation up to 85°C ambient temperature. Power dissipation of 0.8 W supports thermal durability. Resistance range keeps power losses minimal during normal operation.

Suitable for security, automotive, medical, and industrial electronics. Part of nanoSMDC150F series surface mount Resettable Fuses.

Choose Littelfuse NANOSMDC150F-2 for reliable overcurrent protection in modern electronic assemblies requiring compact, automatic-reset fuses. Browse more fuse and circuit protection components on EnvMart to find ideal solutions for industrial, laboratory, commercial, and consumer electronics applications.
