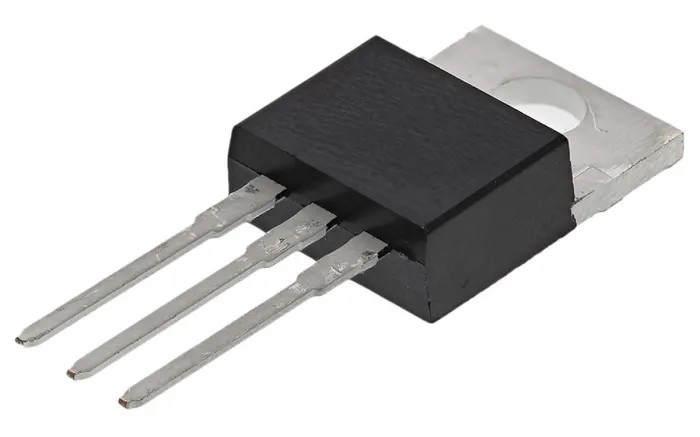

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTA08-800BWRG

STMicroelectronics BTA08-800BWRG is a 3-pin TRIAC designed for high performance switching and phase control in a variety of electronic applications. It is housed in a through hole TO-220 package, making it compatible with many PCB mounting methodologies. This TRIAC device supports a rated average on-state current of 8 A and a maximum repetitive peak reverse voltage of 800 V, enabling operation under demanding electrical conditions.

The gate trigger voltage of 1.3 V paired with a maximum gate trigger current of 50 mA allows for efficient gate control with minimal power consumption. It has a surge current rating of 84 A to handle brief current spikes safely, ideal for inductive loads or transient conditions.

Operational over a wide temperature range from -40 °C to 150 °C, this TRIAC is well suited for industrial, commercial, and consumer electronic environments that require reliable switching performance. The peak gate power dissipation of 1 W ensures durability during switching events.

The device’s compact dimensions of 15.9 mm height and 10.4 mm length allow for integration into compact circuit designs without compromising functionality. The single configuration and 3-pin count design simplify implementation in AC switching circuits.

This product is made in China and conforms to current industry standards. Its applications span general-purpose phase control, motor speed controls, light dimmers, and other power control scenarios.

STMicroelectronics continues to provide quality semiconductor components optimized for varied electronic and power management needs. Supports a rated average on-state current of 8 A for moderate power loads. Features a TO-220 package suitable for through-hole mounting and easy PCB integration.

Maximum repetitive peak reverse voltage of 800 V ensures high voltage tolerance. Low gate trigger current of 50 mA enables efficient triggering control. Operates reliably in temperatures from -40 °C to 150 °C for extended industrial use.

Compact size with height 15.9 mm and length 10.4 mm for space-constrained designs. Surge current rating of 84 A provides capability to withstand transient current spikes. Peak gate power dissipation of 1 W supports robust switching performance.

Single configuration with 3 pins allowing straightforward circuit implementation. Manufactured in China with new condition and compliant to applicable industrial standards. Explore more semiconductor components and TRIACs at EnvMart to find solutions suited to your industrial and electronic design requirements.
