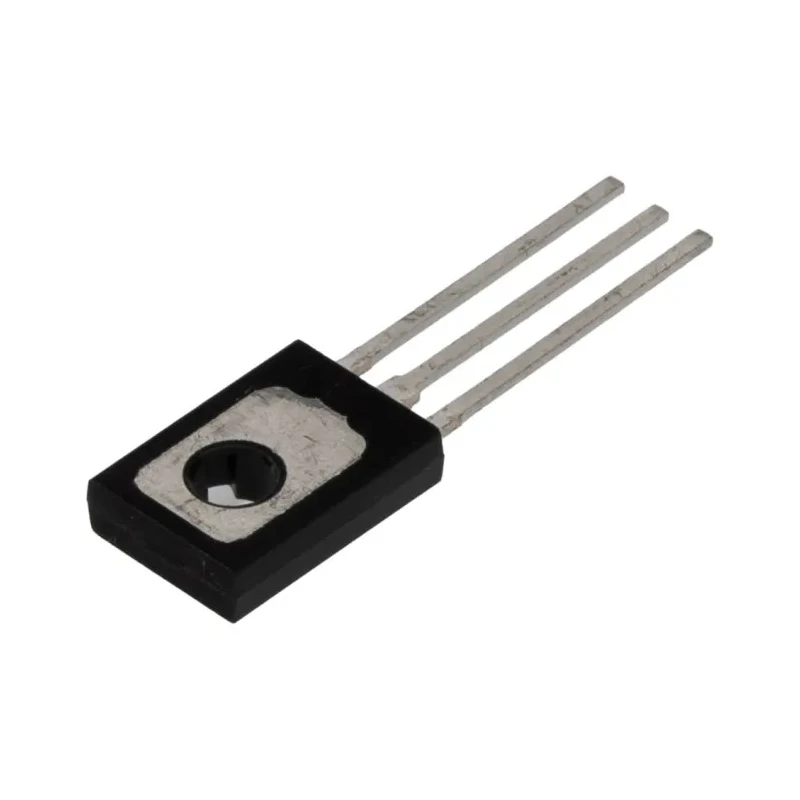

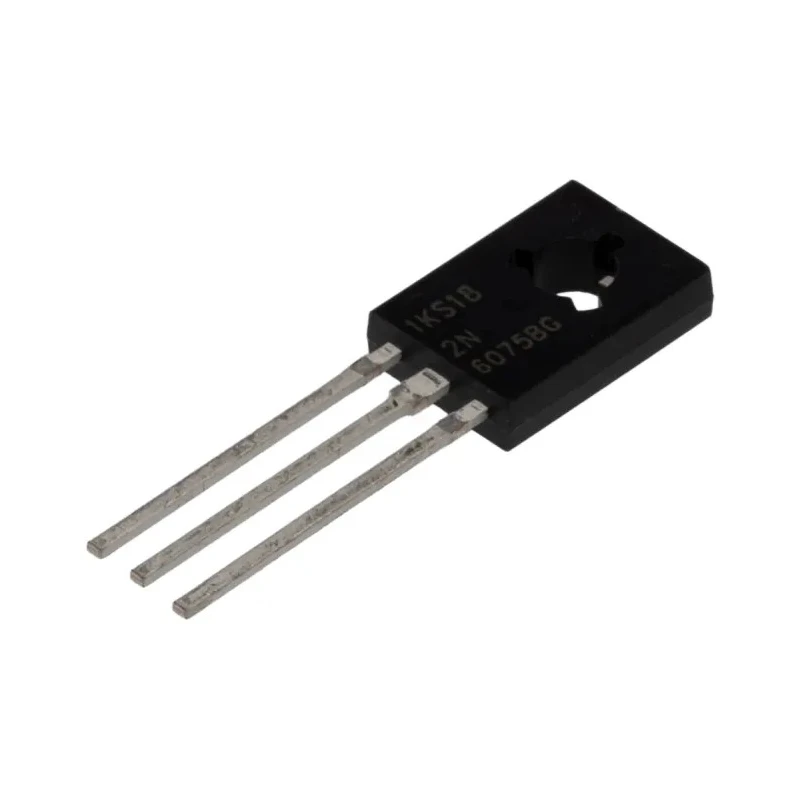

Littelfuse Through Hole 3-Pin TRIAC 600 V Gate Trigger 2.5 V 2N6075BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 11.04mm |
| Length | 7.74mm |
| Model | 2N6075BG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 110°C |
| Package Type | TO-225 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 4A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 30A |
| Maximum Gate Trigger Current Igt | 5mA |
| Maximum Holding Current Ih | 15mA |
| Maximum Gate Trigger Voltage Vgt | 2.5V |
| Peak On-State Voltage | 2V |
| Repetitive Peak Off-State Current | 0.01mA |
Key Features
- Rated average on-state current IRMS is 4 A ensuring reliable current flow control.
- Equipped with a maximum gate trigger voltage of 2.5 V for efficient switching.
- Surge current rating is 30 A to handle transient currents.
- Compact TO-225 package with three pins for through-hole mounting.
- Operating temperature range from -40°C to 110°C for versatile environments.
- Maximum holding current is 15 mA for stable device performance.
- Repetitive peak off-state current of 0.01 mA ensures low leakage.
- Complies with RoHS standards for environmental safety.
Product Description
Littelfuse 2N6075BG is a through-hole mounted TRIAC with a 3-pin configuration designed for alternating current switching and control applications. It supports a repetitive peak reverse voltage of 600 V and operates with a gate trigger voltage of 2.5 V, making it suitable for precise AC load control in industrial and consumer electronics.
The device is rated for a maximum average on-state current of 4 A IRMS and can withstand surge currents up to 30 A, providing robustness against transient conditions. Its TO-225 package provides easy integration and mounting in PCB assemblies with through-hole technology.
Operating safely between temperatures of -40°C to 110°C, this TRIAC is engineered for a wide range of environments, including industrial automation, HVAC control, manufacturing equipment, and general electronics applications.
Key electrical parameters include a maximum gate trigger current of 5 mA and a holding current of 15 mA. The device shows minimal leakage current with a repetitive peak off-state current of only 0.01 mA, enhancing energy efficiency and circuit stability.
Compliant with RoHS standards, the 2N6075BG TRIAC supports environmental safety and regulatory requirements. Its compact form with a height of 11.04 mm and length of 7.74 mm allows for versatile design usage.
Rated average on-state current IRMS is 4 A ensuring reliable current flow control. Equipped with a maximum gate trigger voltage of 2.5 V for efficient switching. Surge current rating is 30 A to handle transient currents.
Compact TO-225 package with three pins for through-hole mounting. Operating temperature range from -40°C to 110°C for versatile environments. Maximum holding current is 15 mA for stable device performance. Repetitive peak off-state current of 0.01 mA ensures low leakage.
Complies with RoHS standards for environmental safety.
This TRIAC is ideal for industrial, laboratory, HVAC, manufacturing, and commercial applications requiring robust AC switching components. Explore more Littelfuse TRIAC and semiconductor options on EnvMart for your electronics design and production needs.
Explore more products in our TRIACs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 110°C.
It has a rated average on-state current of 4 A IRMS.
The maximum gate trigger voltage is 2.5 V, which facilitates efficient switching.
The surge current rating for this unit is 30 A, allowing it to handle transient currents effectively.
This TRIAC has a height of 11.04 mm and a length of 7.74 mm.
The maximum holding current is 15 mA, ensuring stable device performance.
It is designed for through-hole mounting, featuring a 3-pin configuration.
The TRIAC complies with RoHS standards for environmental safety.
The peak on-state voltage for this model is 2 V.
The maximum gate trigger current is 5 mA.
