Digilent Breadboard Blank Canvas RoHS Compliant Prototyping Board 410-391

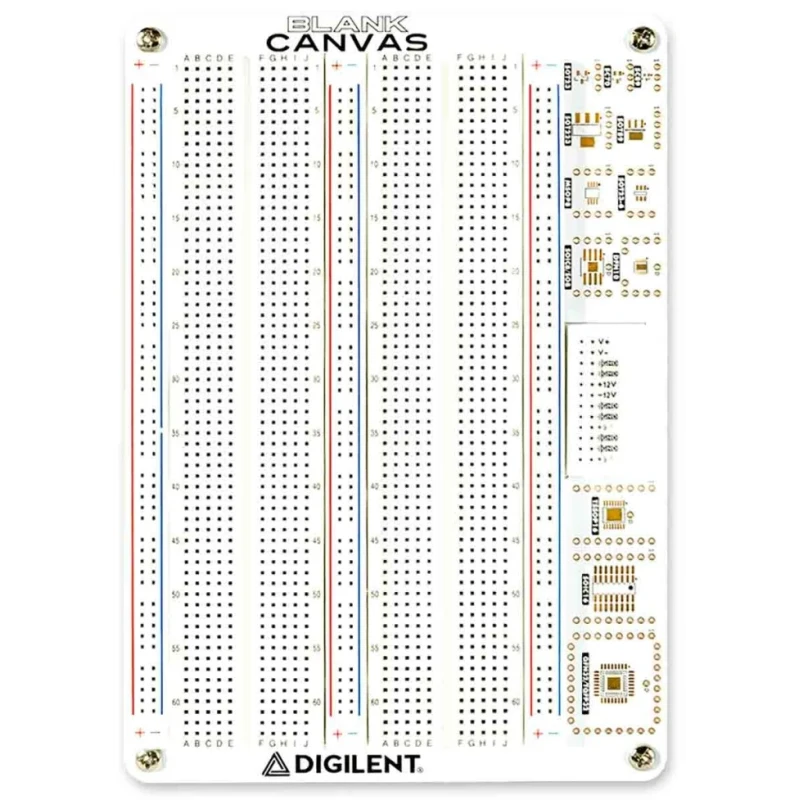

Digilent 410-391 Breadboard Blank Canvas is a RoHS compliant prototyping board designed to provide a large, flexible surface for experimental circuit construction. It is engineered for compatibility with analogue discovery studios and features connections to six power supplies, namely 3.3V, 5V, ±12V, and ± variable voltage sources, facilitating complex design work and testing.

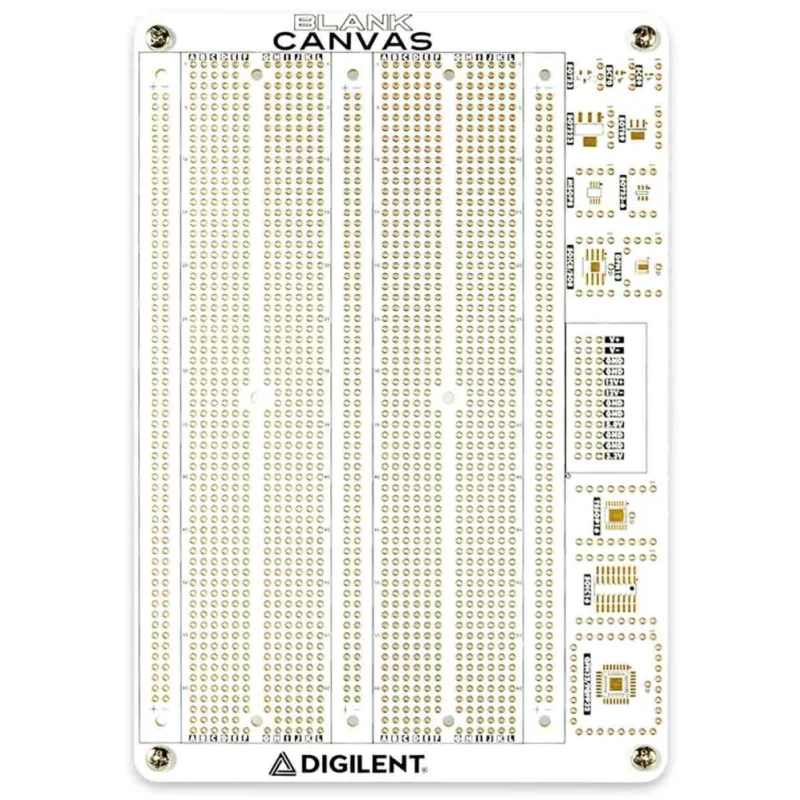

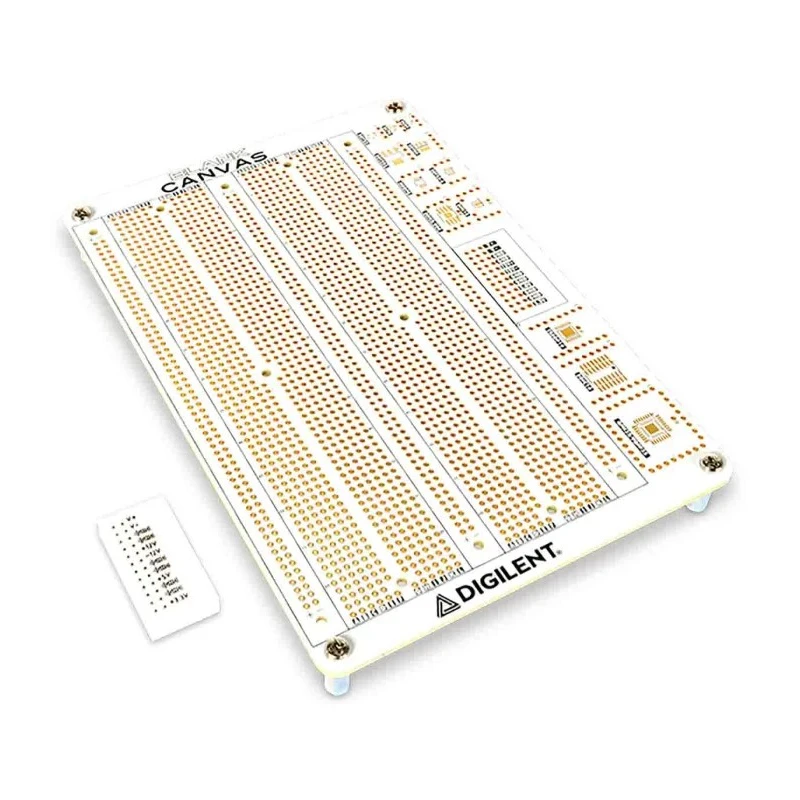

The board's layout mimics two standard breadboards wired together, each with three power rails allowing efficient power distribution across large circuit setups. Power supply connections are provided as copper pads, permitting direct soldering, or alternatively, the supplied power supply breadboard can be soldered on to enable solderless connections.

Eleven breakout pads located at the top support a variety of common IC package types, enhancing versatility in prototyping various integrated circuits. To further extend its utility, users can optionally attach two solderless breadboards, thus accommodating prototype assembly without permanent soldering.

Additional features include standard screw terminal adapters that provide secure and easy connectivity for external devices and instrumentation. This board is specifically designed to mount directly on top of the OpenLogger hardware, streamlining integration into measurement setups.

Its robust design and RoHS certification make it suitable for use in industrial, laboratory, and educational environments focusing on electronics development, quality control, and research. Applications include prototyping for embedded systems, analog/digital circuit design, and test setups in cleanroom conditions where ESD control is critical.

The board offers an extensive prototyping area wired as two standard breadboards with three power rails for convenience. Power supply connections include copper pads for soldering or an included supply breadboard for solderless use.

Eleven breakouts at the top accommodate common IC package types for versatile prototyping. Optional addition of two solderless breadboards can expand solderless prototyping capabilities. Standard screw terminal adapters facilitate simple and reliable connectivity.

Designed to fit directly on top of the OpenLogger device. RoHS compliance ensures safe use in ESD control and cleanroom prototyping environments. Explore the full range of Prototyping Boards and electronic components at EnvMart for enhanced project development and reliable experimental setups.
