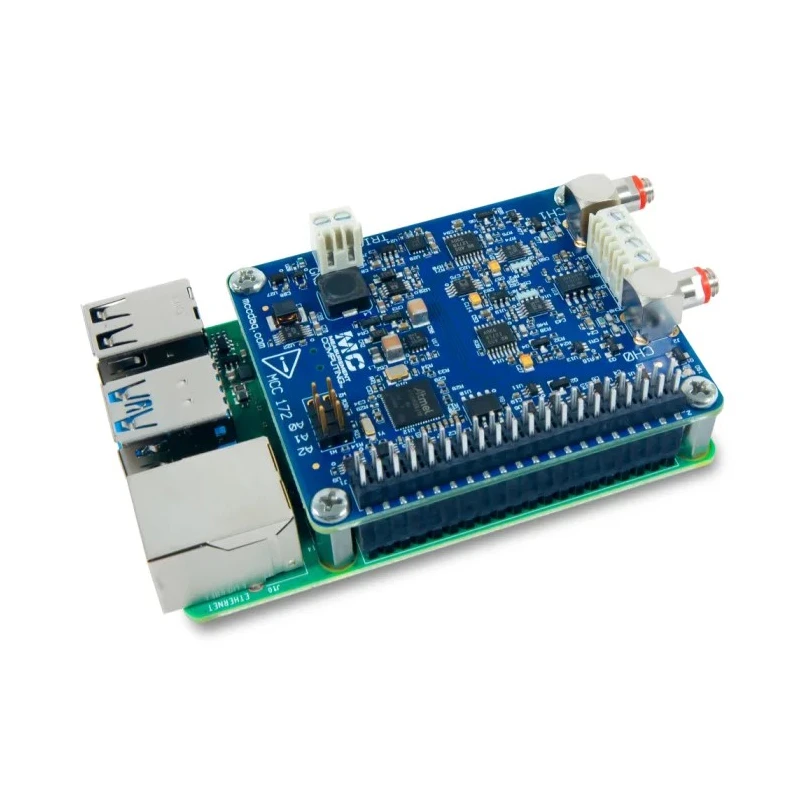

Digilent IEPE Measurement DAQ Raspberry Pi HAT 2 Analog Inputs 24-bit 51.2 kS/s 6069-410-004
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Digilent |
| Form Factor | HAT |
| Accessory Category | Dataloggers |
| Standards/Approvals | RoHS |
| SpecificationsBrandDigilentProduct TypeRaspberry Pi HATProduct NameMCC 172 | IEPE Measurement DAQ HAT for Raspberry PiAccessory CategoryDataloggersForm FactorHATStandards/ApprovalsRoHSCountry of OriginHungary |
| Product NameMCC 172 | IEPE Measurement DAQ HAT for Raspberry Pi |
| MCC 172 | IEPE Measurement DAQ HAT for Raspberry Pi |
Key Features
- Designed for Raspberry Pi single-board computer with 40-pin GPIO HAT connector.
- Features two IEPE inputs with 24-bit analog-to-digital converters sampling at 51.2 kS/s per channel.
- Supports AC coupling at ±5 V for precise signal acquisition.
- Allows synchronous ADC conversions across multiple stacked MCC 172 HAT boards.
- Equipped with on-board sample buffers enabling high-speed data acquisition.
- External digital trigger input facilitates synchronized measurements.
- Up to eight MCC 172 HATs can be stacked on a single Raspberry Pi for expanded channel counts.
- RoHS compliant and manufactured in Hungary ensuring quality standards.
Product Description
The Digilent MCC 172 (model 6069-410-004) is an IEPE Measurement DAQ HAT designed specifically for the Raspberry Pi platform. This add-on board conforms to the Raspberry Pi HAT specification, featuring a 40-pin GPIO connector that enables seamless integration with the Raspberry Pi single-board computer popular for educational, development, and industrial applications.
This device provides two high-quality analog inputs tailored for sound and vibration measurements commonly used in industrial monitoring, laboratory testing, and acoustic research. Each channel includes a dedicated 24-bit analog-to-digital converter capable of sampling signals at 51.2 kS/s, delivering precise and high-fidelity data acquisition performance.
The on-board sample buffers optimize high-speed data capture and minimize data loss during intensive measurement phases.
One of the key strengths of this product is its ability to stack up to eight MCC 172 HAT boards on a single Raspberry Pi, enabling scalable multi-channel measurement systems. Synced ADC conversions across boards and an external digital trigger input allow for advanced synchronized data acquisition setups, making this HAT suitable for industrial machinery monitoring, laboratory instrumentation, and prototyping environments.
Manufactured in Hungary and compliant with RoHS standards, the MCC 172 combines quality engineering with environmental responsibility. It caters to engineers, researchers, and developers looking to extend the capabilities of Raspberry Pi for sound, vibration, and sensor data logging applications.
Designed for Raspberry Pi single-board computers with HAT form factor. Two IEPE inputs with 24-bit, 51.2 kS/s sampling per channel. AC coupled inputs at ±5 V range for sensor compatibility. Supports stacking of up to eight MCC 172 HAT boards.
Synchronous ADC operation across multiple boards. On-board sample buffering for high-speed data acquisition. External digital trigger input for synchronized measurements. RoHS compliant and produced in Hungary. Explore a comprehensive range of Raspberry Pi Accessories and development tools at EnvMart to enhance your measurement, prototyping, and IoT projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each of the two IEPE inputs features a 24-bit analog-to-digital converter that samples at a rate of 51.2 kS/s per channel.
Up to eight MCC 172 HAT boards can be stacked on a single Raspberry Pi, allowing for expanded channel counts in measurement systems.
The inputs are AC coupled and operate at a voltage range of ±5 V, which is suitable for sensor compatibility.
Yes, the device allows for synchronous ADC conversions across multiple stacked MCC 172 HAT boards, facilitating synchronized measurements.
The Digilent MCC 172 is designed in a HAT form factor, which is compatible with Raspberry Pi single-board computers.
It is manufactured in Hungary, ensuring adherence to quality standards.
This DAQ HAT is suitable for sound and vibration measurements, commonly used in industrial monitoring, laboratory testing, and acoustic research.
The on-board sample buffers are designed to optimize high-speed data capture and minimize data loss during intensive measurement phases.
The Digilent MCC 172 is RoHS compliant, reflecting its adherence to environmental responsibility standards.
It features a 40-pin GPIO HAT connector for seamless integration with Raspberry Pi single-board computers.
Yes, the device is equipped with an external digital trigger input that facilitates synchronized measurements.
The brand of this measurement DAQ HAT is Digilent.
