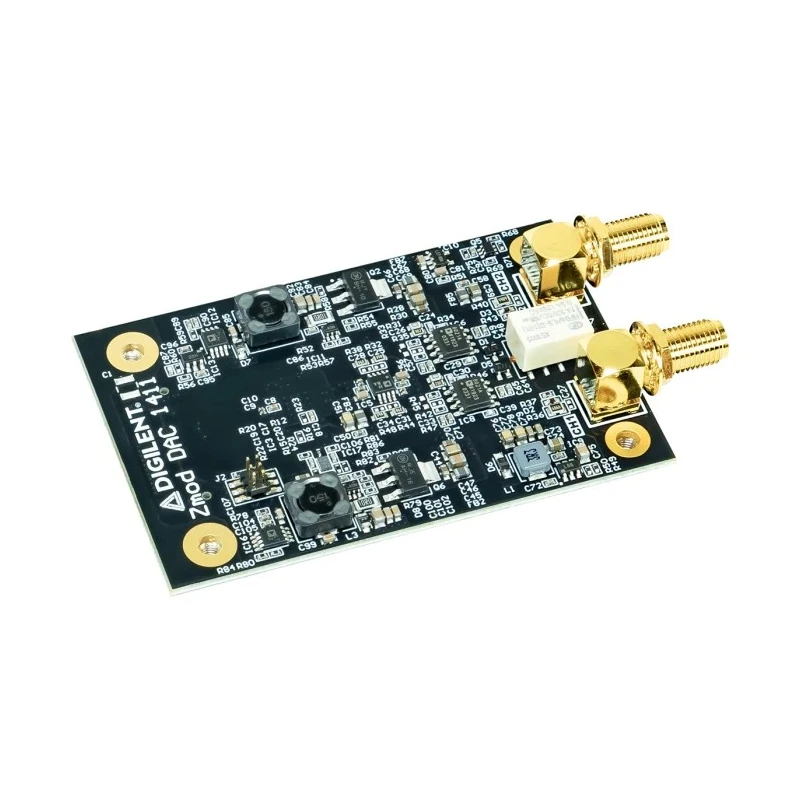

Digilent Expansion Module 2-Channel 14-Bit 100MS/s ±5V Analog Output 410-397
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 14-bit |
| Brand | Digilent |
| Model | 410-397 |
| Output Impedance | 50Ω |
| Bandwidth | 40 MHz @ 3dB, 20 MHz @ 0.5dB, 14 MHz @ 0.1dB |
| Number Of Channels | 2 |
| Channel Type | single-ended |
| Kit Classification | Expansion Module |
| BrandDigilent | Kit ClassificationExpansion Module |
| Sample rate (real time) | 100MS/s |
| Absolute Resolution (amplitude ≤1.25V) | 167μV |
| AC amplitude (max) | ±5 V |
| Slew rate (2V step) | 180V/μs |
Key Features
- Two single-ended analog channels support high-speed signal generation.
- Output impedance is standardized at 50Ω for signal integrity.
- Resolution provides 167μV absolute resolution at ≤1.25V amplitude.
- Wide analogue bandwidth ensures accurate frequency response up to 40 MHz at -3 dB.
- Maximum AC amplitude output reaches ±5 volts.
- Sample rate of 100MS/s allows fast and detailed signal replication.
- Slew rate of 180V/μs on 2V step ensures rapid voltage transitions.
- Easy connection to circuits via SMA cables for flexible integration.
Product Description
Digilent 410-397 Expansion Module is a precision signal generation expansion module designed to be driven by SYZYGY carriers, typically used with base boards like the Eclypse Z7 and Genesys ZU. It features two single-ended channels capable of delivering analog outputs with 14-bit resolution across a ±5 volt range. The module supports real-time sample rates up to 100 megasamples per second (MS/s), making it suitable for advanced electronic system prototyping and development.
The module’s analog outputs connect to external circuits using SMA cables, ensuring robust signal integrity with a 50Ω output impedance matching industry standards. Its wide analogue bandwidth of 40 MHz at -3 dB and high slew rate of 180 V/μs enable the precise generation of rapidly changing signals, essential for instrumentation, software defined radio (SDR), and high-speed control applications.
With absolute resolution down to 167 μV for signals with amplitude up to 1.25 V, the 410-397 provides high fidelity output critical for experimental and development environments in laboratory, industrial, and manufacturing settings.
This expansion module lets engineers focus on system-level design by handling complex signal generation internally, reducing the need to manage low-level hardware interaction. When combined with SYZYGY-compatible base boards, it forms a powerful prototyping platform for cutting-edge electronic applications.
Dual channel, single-ended, 14-bit resolution output. ±5 V maximum output amplitude with 50Ω impedance. Supports real-time sampling rate of 100 MS/s. Analogue bandwidth up to 40 MHz at -3 dB. High slew rate output ensures rapid voltage steps.
Integration over SMA connectors for easy expansion. Supports SYZYGY carrier boards including Eclypse Z7 and Genesys ZU. Ideal for instrumentation, SDR, high-speed control, and prototyping platforms.
It is made in India and complies with relevant technical standards for expansion signal modules. It enables diverse industrial and laboratory applications requiring precise analog signal generation.
For further exploration of similar products, users can browse the Electronics Components section in the EnvMart catalog.
Explore more products in our Electronic Modules category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum AC amplitude output of this module is ±5 volts.
It supports a real-time sample rate of 100 megasamples per second (MS/s).
The module features a resolution of 14 bits, providing an absolute resolution of 167μV for signals with amplitude up to 1.25V.
This model has two single-ended channels for analog output.
The output impedance is standardized at 50Ω, which helps maintain signal integrity.
The module has a wide analogue bandwidth of 40 MHz at -3 dB.
It connects to external circuits using SMA cables, allowing for flexible integration.
The slew rate for a 2V step is 180 V/μs, enabling rapid voltage transitions.
This expansion module is designed to be used with SYZYGY carriers, such as the Eclypse Z7 and Genesys ZU.
It is suitable for advanced electronic system prototyping, instrumentation, software defined radio (SDR), and high-speed control applications.
The Digilent Expansion Module is made in India.
The absolute resolution of 167μV at ≤1.25V amplitude ensures high fidelity output, critical for experimental and development environments.
