Digilent 2-Channel 14-Bit 100MS/s SYZYGY Expansion Module 410-396

Free Delivery in India | Lowest Global Shipping Charges

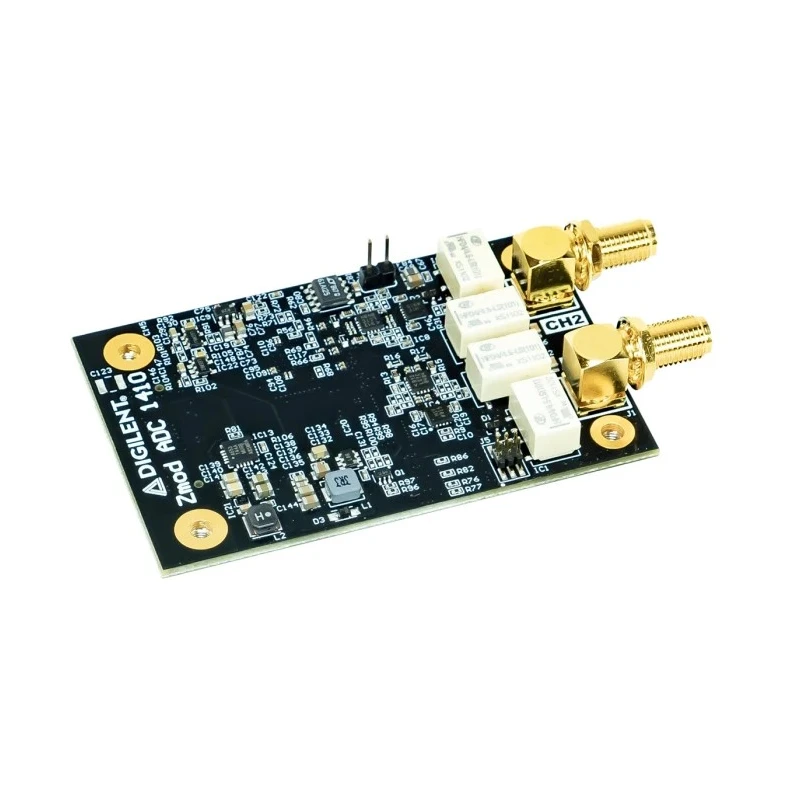

Digilent 2-Channel 14-Bit 100MS/s SYZYGY Expansion Module 410-396

Name: Digilent 2-Channel 14-Bit 100MS/s SYZYGY Expansion Module 410-396
Brand: Digilent
SKU: 267968
Price: 357.24 USD
Availability: InStock



Category Electronic Modules Brand Digilent Condition New

Specifications

Country of Origin	India
Resolution	14-bit
Brand	Digilent
Model	410-396
Bandwidth	70 MHz+ @ 3dB, 30 MHz @ 0.5dB, 20 MHZ @ 0.1dB
Input Impedance	1MΩ\|\|18pF
Number Of Channels	2
Input Range	±1V (High Gain) or ±25V (Low Gain)
Channel Type	single-ended
Kit Classification	Expansion Module
BrandDigilent	Kit ClassificationExpansion Module
Sample rate (real time)	100MS/s
Input protected to	±50V

Key Features

Equipped with two single-ended channels for simultaneous signal acquisition.
Offers a high-resolution 14-bit ADC with input range of ±1V (High Gain) or ±25V (Low Gain).
Achieves a real-time sampling rate of up to 100MS/s for fast and accurate data capture.
Input impedance is 1MΩ in parallel with 18pF ensuring signal fidelity.
Provides analogue bandwidth exceeding 70 MHz at 3dB attenuation for wide frequency response.
Protection circuitry supports input voltage tolerance up to ±50V to safeguard module components.
Designed to interface using SMA cables for stable analog input connections.
Compatible with SYZYGY carrier bases such as Eclypse Z7 or Genesys ZU for robust prototyping platforms.

Product Description

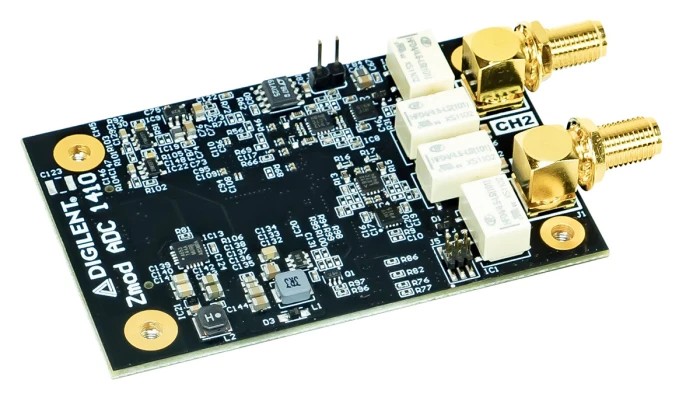

Digilent 410-396 Expansion Module is a precision 14-bit analog-to-digital converter (ADC) module capable of sampling two simultaneous single-ended channels at rates up to 100 million samples per second (100MS/s). It features selectable input ranges of ±1V for high gain or ±25V for low gain operation. This module employs SMA connectors for analog input signal integration and offers a high analog bandwidth of 70 MHz at a 3dB roll-off, ensuring minimal signal distortion during conversion.

Input protection is implemented to tolerate voltages up to ±50V, protecting the device from accidental overload conditions. Its input impedance of 1 megaohm in parallel with 18 picofarads maintains signal integrity for high precision measurements.

Designed for use with SYZYGY expansion compatible base boards, such as the Eclypse Z7 or Genesys ZU platforms, this module facilitates rapid prototyping and development of instrumentation, software-defined radio (SDR), high-speed control, and measurement applications. By offloading the component-level details, users can focus on analytical and system-level design aspects.

The module’s dual-channel capability is ideal for simultaneous acquisition of sensor or test signals where timing and resolution are critical. Its industrial-grade design supports integration in laboratory, manufacturing, and research environments requiring precise and reliable analog signal conversion.

Equipped with two single-ended analog input channels for simultaneous data capture. Features 14-bit resolution for high accuracy measurement. Supports real-time sample rates up to 100MS/s for high-speed applications. Selectable input voltage ranges of ±1V (high gain) or ±25V (low gain).

Provides input impedance of 1MΩ || 18pF for stable input conditions. Wide analog bandwidth of over 70 MHz at 3dB reduction, suited for RF signals. Input protection up to ±50V ensures device robustness. Interfaces via SMA connectors compatible with SYZYGY carrier boards.
