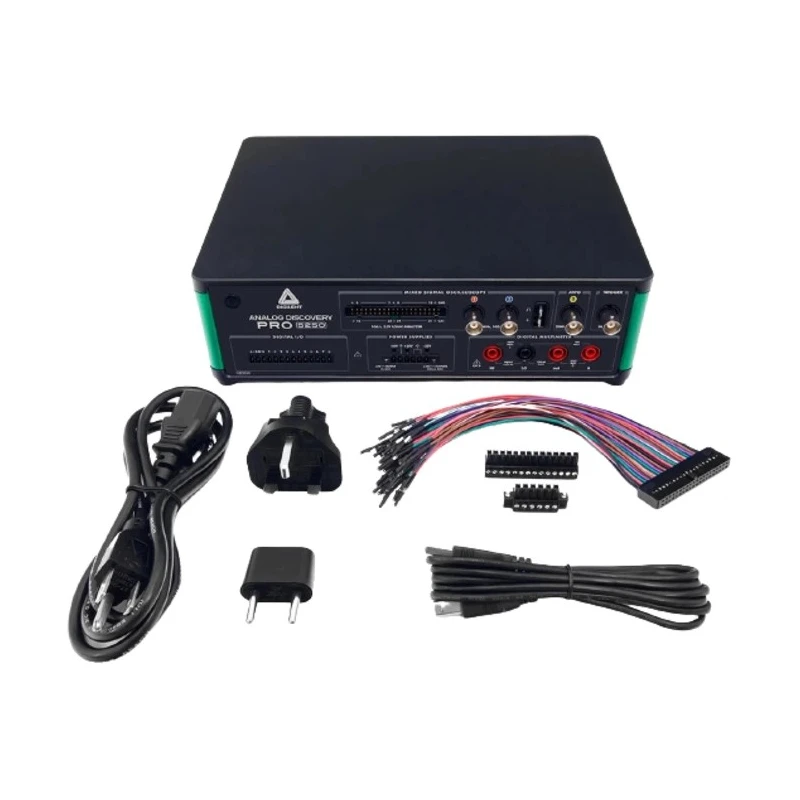

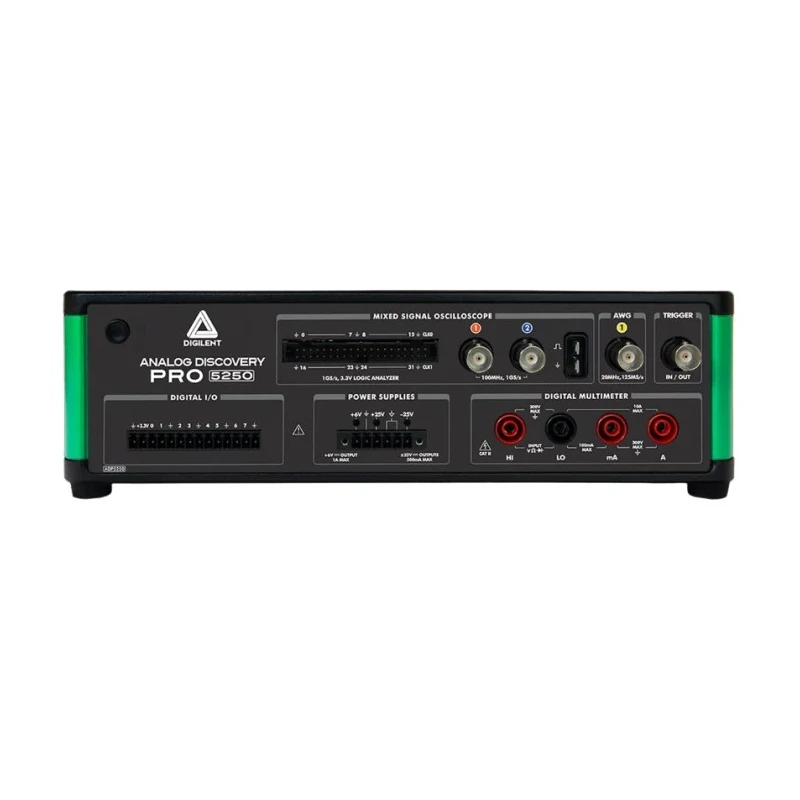

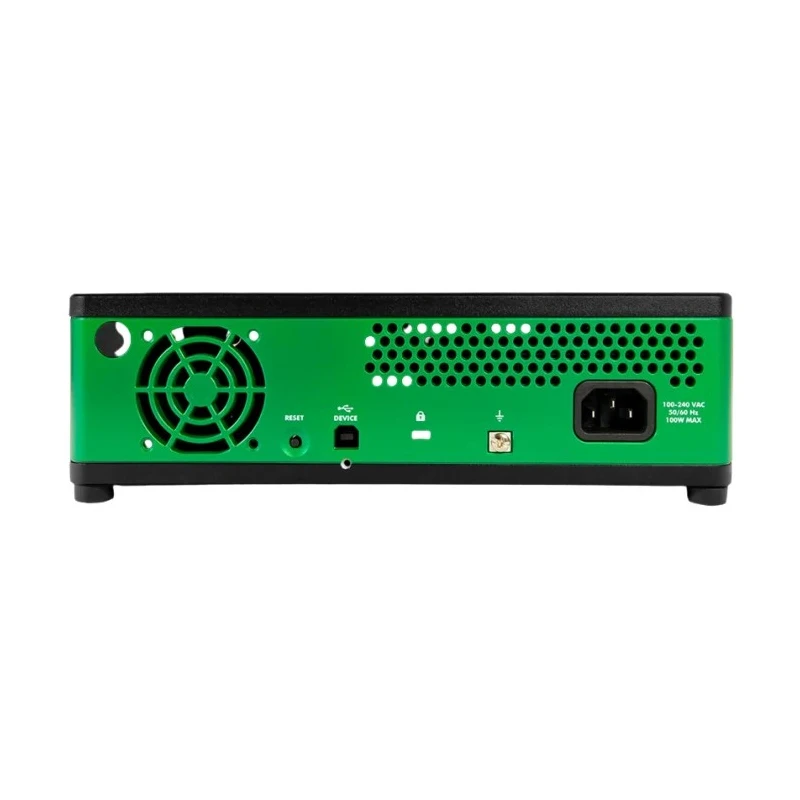

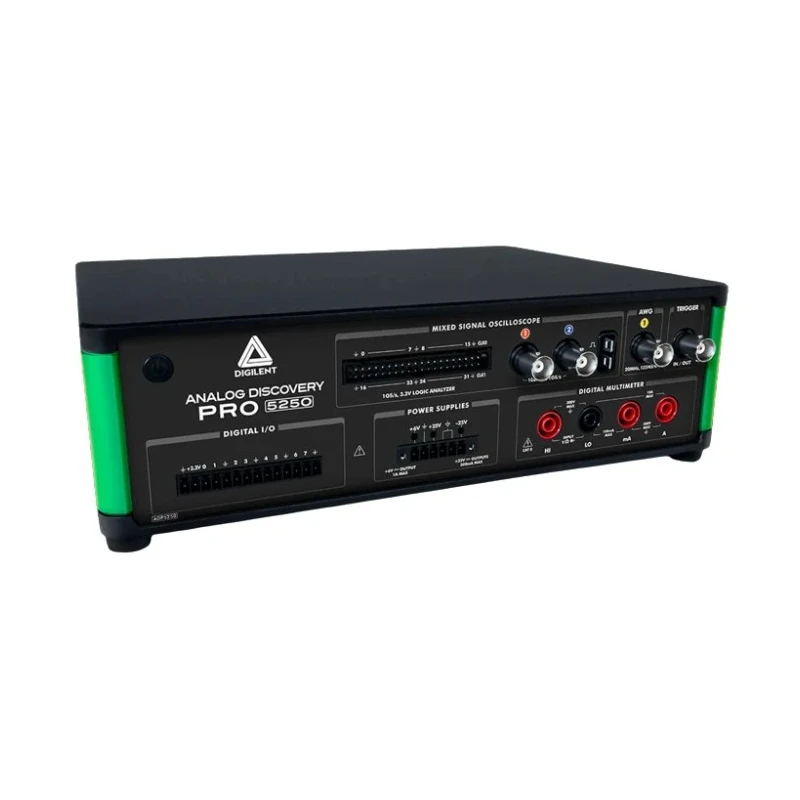

Digilent 100 MHz Bandwidth Bench Mixed Domain Oscilloscope, 34 Digital Channels, USB 2.0 Interface 471-058

Digilent 471-058 is a high-performance 100 MHz bandwidth bench mixed domain oscilloscope designed to deliver versatile testing and measurement capabilities. It features 34 digital channels alongside two 100 MHz analog channels, enabling simultaneous analysis of analog and digital signals.

This mixed signal oscilloscope provides a 1 GS/s maximum sampling rate, ensuring detailed and accurate waveform acquisition. The device includes a built-in programmable digital multimeter (DMM) supporting true current and resistance measurements with a broad 300 V input range, enhancing its measurement versatility beyond typical scopes.

The Analog Discovery Pro ADP5250 series incorporates a tri-output power supply capable of providing up to 25 V, useful for powering circuits under test directly from the oscilloscope. Connectivity is facilitated by cable and USB 2.0 interface types, allowing easy integration into testing setups or computer-based measurement systems.

With a mixed domain form factor, this oscilloscope supports advanced industrial, laboratory, and electronics engineering applications, including logic analysis and waveform generation. Channels include 32 digital inputs for logic analysis, with input voltage ranging from 0 V to 5 V and threshold from 0 V to 2 V. Typical record length reaches 1 MS.

This device is ideal for engineers and technicians requiring a flexible, programmable test instrument that combines oscilloscope, logic analyzer, power supply, waveform generator, and multimeter functionalities in a single bench instrument.

Features 100 MHz analog bandwidth with 1 GS/s sampling for precise signal measurement. Includes 34 digital channels for comprehensive mixed-signal analysis. Built-in DMM provides true current and resistance measurements with 300 V input range.

Tri-output power supply supports up to 25 V output for powering circuits. USB 2.0 and cable interfaces enable versatile connectivity options. Ideal for industrial, laboratory, construction, HVAC, and electronics testing environments.
