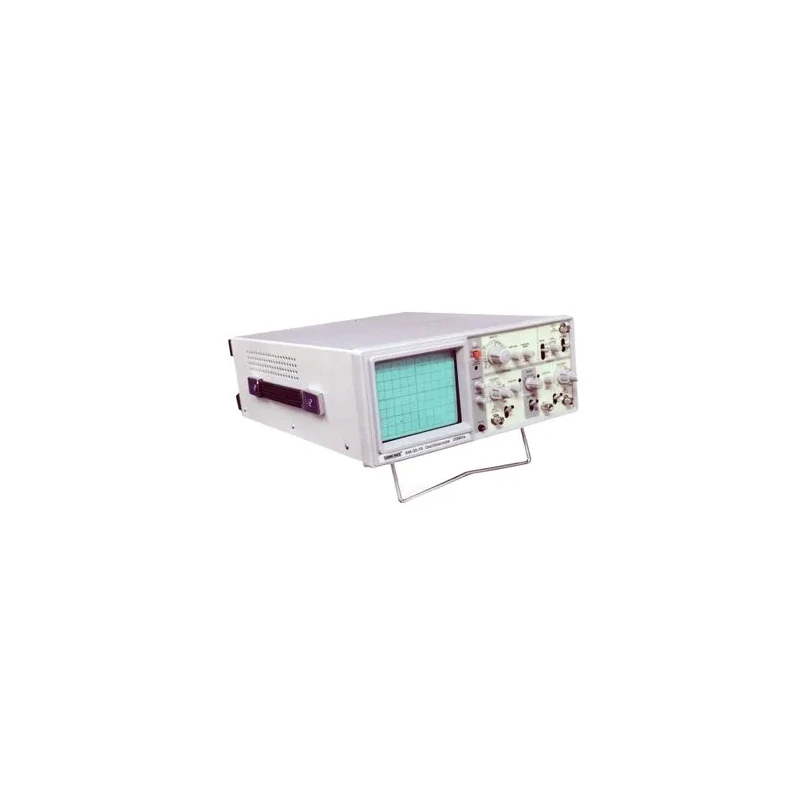

Kusam Meco Analog Oscilloscope KM20-10
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM-20-10 Analog Oscilloscope / User Manual / Mains Power Cord. |
| Accuracy | ±3% |
| Max Input Voltage | 40V (DC+AC Peak) At ≤1kHz |
| Brand | Kusam Meco |
| Power Supply | AC220V/110V ±10% / 50/60Hz |
| Dimensions | 370×310×130mm |
| Function | Analog Oscilloscope |
| Model | KM20-10 |
| Display Mode | CH1 / CH2 / CH3 / ADD ALT & CHOP |
| Input Impedance | 1MΩ |
| Triggering Mode | NORM / AUTO / TV-V / TV-H |
| Time Base | 0.2ms/Div To 0.5s/Div / 20 Ranges |
| Input Coupling | AC / DC / Grounding |
| Rise Time | ≤17.5ns |
| CRT | 6-Inch Rectangular Screen With Internal Graticule / 8×10 Div (1 Div Equal to 1cm) Vertical Deflection |
| Deflection Factor | 5mV/Div To 5V/Div ±3% / (1mV/Div To 1V/Div ±5% At ×5) 10 Steps |
| Polarity Selection | ± (CH2 Only) |
| Trigger Source | CH1 / CH2 / LINE / EXT |
| Sensitivity & Frequency (Auto) | 20Hz–100MHz (VERT) |
| Norm | 0.5div INT / 0.8Vp–P EXT |
| TV-H | ≥1div Or 1Vp–P |
| X–Y Operation Phase Difference | ≤3° / DC–50kHz |
| Horizontal Display Mode | 1 / 10 / X–Y |
| Sweep Expansion Width | ×10 |
| Calibration Waveform | 1kHz±20% 0.5V±1% |
Key Features
- Dual-channel oscilloscope with 6″ high-brightness CRT display
- High sensitivity 1 mV/div and TV-sync separation for stable signals
- Trigger modes: AUTO/NORM/AV-V/AV-H
- Vertical modes: ALT/CHOP/ADD with polarity reversal and CH1 sync out
- Operates on AC 220 V (110 V optional)
Product Description
The Kusam Meco KM20-10 Analog Oscilloscope is a 20MHz dual-trace instrument designed for reliable electrical waveform observation. It features a high-brightness 6-inch CRT display offering sharp and stable signal visualization. With sensitivity up to 1mV/div and X-Y mode functionality, it provides excellent versatility for waveform study and signal testing. Built for precision and durability, it’s an ideal tool for engineers, laboratories, and repair professionals who prefer analog signal testing.
Available on EnvMart, these Analog Oscilloscopes feature dual-trace 20 MHz bandwidth for waveform visualization. Kusam Meco Devices ensure precision and durability for traditional analog testing.
