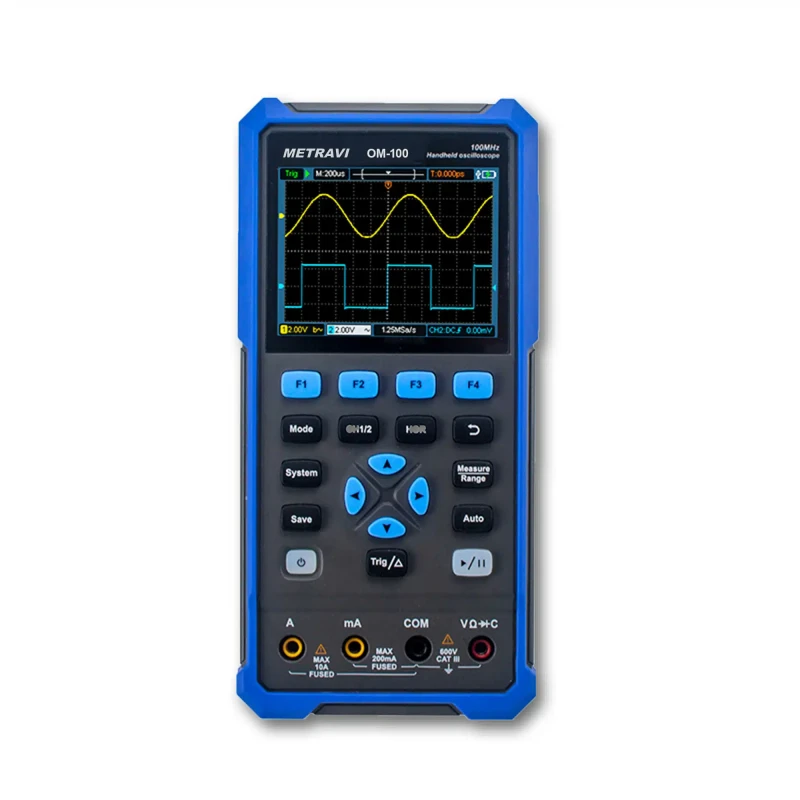

Metravi Handheld Oscilloscope OM-100 image-1

Free Delivery in India | Lowest Global Shipping Charges

Metravi Handheld Oscilloscope OM-100

Name: Metravi Handheld Oscilloscope OM-100
Brand: Metravi
SKU: ADSLA
Price: 308.61 USD
Availability: InStock



SKU ADSLA Category Oscilloscope Brand Metravi Condition New

Specifications

Country of Origin	India
Package Contents	Metravi OM-100 Handheld Oscilloscope / USB Cable / Passive Probes / Crocodile Clip Cable / Multimeter Test Leads / Probe Correction Adjustment Knife / User Manual / Carrying Case
Max Input Voltage	400V(DC+AC PK-PK 1MΩ input impedance 10
Power Consumption	Less than 5W
Display Type	3.5-inch color LCD
Brand	Metravi
Power Supply	100–240VAC RMS 50/60Hz CAT II/DC input 5VDC 2A
Operating Temperature	0°C–40°C
Dimensions	198×96×38mm
Storage Temperature	-20°C–60°C
Battery	2×2200mAh(3.7V 18650)
Calibration Interval	1 year recommended
Humidity	≤90%
Model	OM-100
Weight	Approx.0.6kg(without battery)
Bandwidth	100MHz
Communication Interface	USB Type-C
Display Resolution	320×240 pixels
Input Impedance	1MΩ±2% parallel with 16pF±10pF
Cooling Method	Natural Cooling
Operating Height	3000m
Sample Rate	500MSa/s
DC Current range	200.00mA/10.000A
AC Current range	200.00mA/10.000A
DC Current Accuracy	±(0.8%+10dgt)/±(2.5%+10dgt)
Channels	2-CH oscilloscope
Record Length	8K
AC Current Accuracy	±(1%+10dgt)/±(2.8%+10dgt)
Input Coupling	DC/AC/Ground
Trigger Modes	Auto/Normal/Single
Vertical Resolution	8 bits
Trigger Type	Edge
Display Color	65536 colors
Contrast	Adjustable
Non-Operating Height	15000m
Acquisition Mode	Normal/Peak detect
Waveform Refresh Rate	10000wfrms/s
Probe Attenuation Factors	1X/10X/100X/1000X/10000X
Bandwidth Limit	20MHz
Horizontal Scale	2ns/div–1000s/div(step 1-2-5)
Vertical Sensitivity	10mV/div–10V/div
Automatic Measurement	Frequency/Period/Amplitude/Max/Min/Mean/PK-PK
Cursor Measurement	ΔV/ΔT/ΔT&ΔV between cursors
Multimeter Max Resolution	20000 counts
Multimeter Testing Mode	Voltage/Current/Resistance/Capacitance/Diode/Continuity test
Multimeter Input Impedance	10MΩ
Multimeter Max Input Voltage	AC750V/DC1000V
Multimeter Max Input Current	AC10A/DC10A
Multimeter Diode Range	0–2V
Dc Current Min Resolution	0.01mA/1mA
Ac Current Min Resolution	0.01mA/1mA

Key Features

Simultaneous monitoring and comparison of two signals
Portable and compact
Intuitive controls and interface
Clear and vibrant display
Various measurement functions to analyse signal characteristics
Trigger options for precise waveform captures
Recording and storing of data for further analysis

Product Description

Metravi Handheld Oscilloscope OM-100 is a compact and versatile diagnostic tool designed for real-time signal analysis and on-site troubleshooting. Ideal for engineers, technicians, and maintenance professionals, this portable oscilloscope combines precision measurement with user-friendly operation. Its lightweight handheld design makes it perfect for field applications, enabling easy monitoring of electrical waveforms, circuits, and electronic components. Equipped with a clear display and intuitive controls, it delivers accurate signal visualization for efficient fault detection and analysis. The OM-100 is suitable for applications in electronics repair, industrial maintenance, automotive diagnostics, and educational labs. Built for reliability and convenience, it ensures stable performance in demanding environments. Whether testing voltage signals, analyzing frequency patterns, or diagnosing circuit issues, the Metravi OM-100 handheld oscilloscope offers dependable functionality, making it an essential tool for modern electrical and electronic testing needs. Available on EnvMart, these Oscilloscopes provide detailed visualization of electrical signals, essential for diagnostics, troubleshooting, and design in electronics and engineering. Metravi Oscilloscopes stand out for their accuracy, intuitive interface, and robust performance—ideal for labs, R&D, and field applications alike.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The bandwidth of this model is 100MHz, allowing for detailed signal analysis.

The maximum input voltage for this unit is 400V (DC+AC PK-PK) with a 1MΩ input impedance.

It features a 2-channel oscilloscope, enabling simultaneous monitoring of two signals.

The dimensions are 198×96×38mm, and it weighs approximately 0.6kg without the battery.

It uses a 3.5-inch color LCD display with a resolution of 320×240 pixels.

The power supply requirement is 100–240VAC RMS 50/60Hz or a DC input of 5VDC 2A.

The sample rate for this model is 500MSa/s, which facilitates high-resolution signal capture.

It supports automatic measurements for frequency, period, amplitude, max, min, mean, and PK-PK.

The operating temperature range is from 0°C to 40°C, suitable for various environments.

Included accessories are a USB cable, passive probes, crocodile clip cable, multimeter test leads, a probe correction adjustment knife, a user manual, and a carrying case.

The recommended calibration interval for this unit is once a year to ensure accurate measurements.

This model can analyze voltage signals, frequency patterns, and diagnose circuit issues, making it versatile for various applications.
