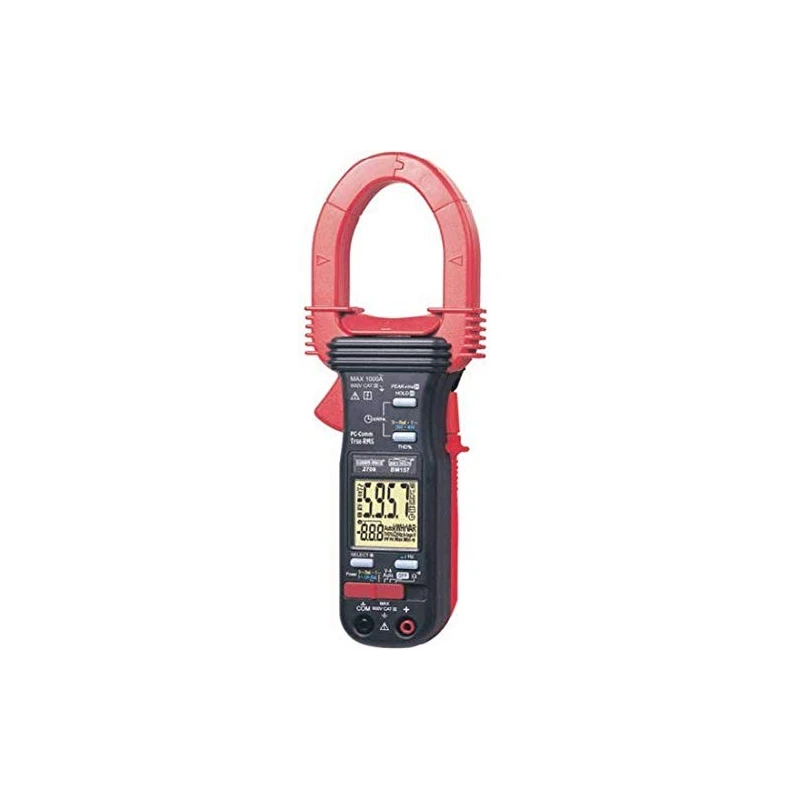

Kusam Meco Ac/Dc Power Clamp On Meter 2709
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco 2709 AC/DC POWER CLAMP - ON - METER / Test Leads (Pair) / Batteries Installed / User’s Manual / Soft Carrying Case |
| Power Consumption | Voltage/ACA/Hz & Power Functions 11mA Typical |
| Display | Voltage Function 6000 Counts LCD/Power/Ohm & Hz Functions 9999 Counts LCD/ACA Clamp-On Function 4000 Counts LCD |
| Relative Humidity | Max80% Upto31°C Linearly Decreasing To50% At40°C |
| Brand | Kusam Meco |
| Power Supply | Standard1.5V AAA Battery×2 |
| Dimension | 224(L)×78(W)×40(H)mm |
| Storage Temperature | -20°C To 60°C Less Than 80%RH(With Battery Removed) |
| Function | AC/DC Power Clamp-On Meter |
| Altitude | Operating Below2000m |
| Model | 2709 |
| Temperature | 0°C To 40°C |
| Weight | Approx 224g |
| Temperature Coefficient | Nominal0.15x(Specified Accuracy)/°C |
| Sensing | True RMS sensing |
| Update Rate | Power Function 2 Per Second Nominal/Voltage/ACA Clamp-On & Ohm Functions 2 Per Second Nominal/Hz Function 1 Per Second Nominal |
| Polarity | Automatic |
| Low Battery | Below approx 2.4V |
| APO Timing | Idle For 30 Min |
| APO Consumption | 4μA Typical |
| Jaw Opening & Conductor Diameter | 45mm Max |
| Ohm Function | 5.5mA Typical |
Key Features
- Measures KW, KVAr, KVA, and Total Power Factor with dual display
- Records kWHr and Total Harmonic Distortion (THD%)
- AutoVA function for automatic selection of ACV, DCV, or ACA
- Peak RMS hold, backlight display, and display hold function
- Optional PC communication interface for data transfer
Product Description
The Kusam Meco 2709 AC/DC Power Clamp Meter is designed for precise measurement of electrical parameters including voltage, current, power, and resistance. Featuring TRMS accuracy, auto-ranging, and safety insulation, it’s suitable for professional electricians and engineers. Its ergonomic build, large backlit LCD, and durable jaw design make it ideal for field applications.
Available on EnvMart, these Power Clamp Meters measure AC/DC voltage, current, and power accurately. Kusam Meco Devices offer safe and efficient testing for electrical professionals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco 2709 can measure AC/DC voltage, current, power (KW, KVAr, KVA), and resistance, along with total power factor and total harmonic distortion (THD%).
The Kusam Meco 2709 features a 6000 counts LCD for voltage functions and 9999 counts LCD for power, ohm, and Hz functions, with a 4000 counts LCD for the ACA clamp-on function.
The maximum jaw opening of the Kusam Meco 2709 is 45mm, accommodating various conductor diameters.
The Kusam Meco 2709 operates on two standard 1.5V AAA batteries, which are included with the product.
The Kusam Meco 2709 weighs approximately 224 grams, making it portable for field applications.
The operating temperature range for the Kusam Meco 2709 is 0°C to 40°C.
The Kusam Meco 2709 can operate in relative humidity conditions up to 80% at 31°C, decreasing linearly to 50% at 40°C.
Yes, the Kusam Meco 2709 has an optional PC communication interface for data transfer.
The Kusam Meco 2709 features true RMS sensing and safety insulation, suitable for professional electricians and engineers.
The storage temperature range for the Kusam Meco 2709 is -20°C to 60°C, with less than 80% relative humidity and with the battery removed.
The package of the Kusam Meco 2709 includes the clamp meter, a pair of test leads, installed batteries, a user’s manual, and a soft carrying case.
The update rate for the power function of the Kusam Meco 2709 is 2 readings per second nominally.
