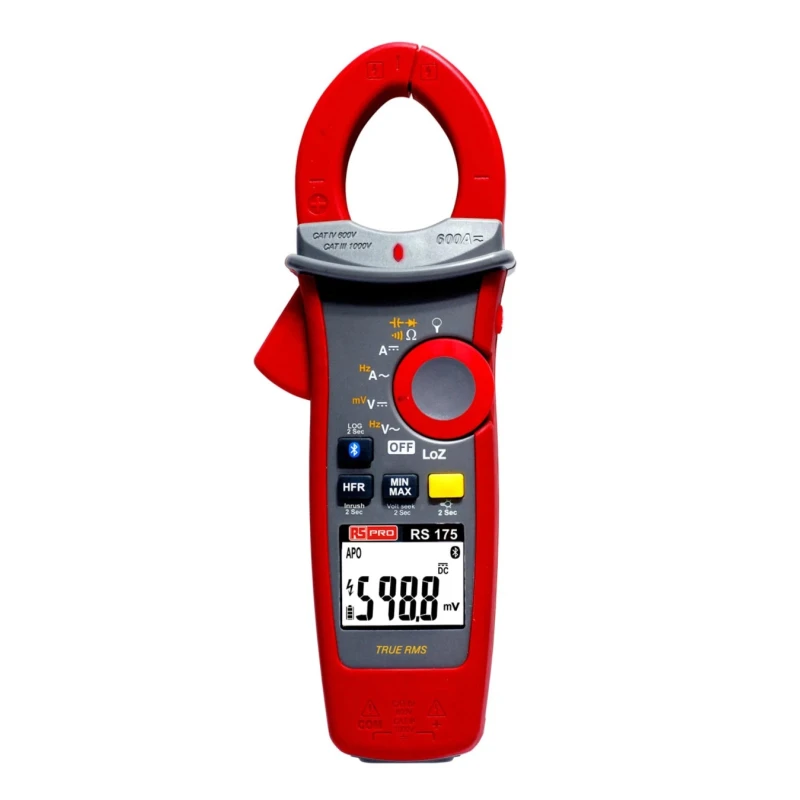

RS PRO Industrial Clamp Meter 600 A AC/DC 1000 V AC/DC True RMS Bluetooth Data Logger 175 204-8312

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Industrial Clamp Meter 600 A AC/DC 1000 V AC/DC True RMS Bluetooth Data Logger 175 204-8312

Name: RS PRO Industrial Clamp Meter 600 A AC/DC 1000 V AC/DC True RMS Bluetooth Data Logger 175 204-8312
Brand: RS PRO
SKU: 401914
Price: 461.89 USD
Availability: InStock



Category Clamp Meters Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Display Type	LCD
Brand	RS PRO
Battery Life	300h
Battery type	AA
Height	41mm
Length	240mm
Model	204-8312
Gross Weight	430g
Width	62mm
Maximum Operating Temperature	50°C
AC Voltage Resolution	0.1V ac
Minimum Operating Temperature	-10°C
DC Current Accuracy	±2 % rdg + 5 Digits
DC Voltage Resolution	0.1 mV dc
Resistance Measurement Accuracy	±0.9 % rdg + 2 Digits
Resistance Resolution	0.1Ω
DC Current Resolution	10mA
Standards/Approvals	CE/EN/IEC
Functions Measured	DC Voltage, Diode, Resistance, DC Current, Frequency, Continuity, AC Voltage, Capacitance, AC Current
Maximum Resistance Measurement	60kΩ
Maximum DC Voltage Measurement	1000V dc
Maximum DC Current Measurement	600A
Maximum AC Voltage Measurement	1000V ac
Safety Category Level	CAT IV 600 V, CAT III 1000 V
Safety Category Voltage	1000V ac
Maximum Conductor Size	37mm
Clamp Meter Type	Industrial Clamp Meter
Testo 770-3 Clamp Meter, 600 A dc 600 A 600 V dc 600 V CAT III, CAT IVBrand	Testo

Key Features

True RMS measurement ensures accurate AC and DC current and voltage readings.
Features Bluetooth low-power wireless data transmission for efficient monitoring.
Built-in data logger supports current measurements up to 600 A AC/DC.
Includes non-contact voltage detection technology for added safety.
Large backlit LCD screen with torchlight for excellent visibility in low light environments.
Robust fixed jaw probe 45 mm x 10 mm provides precise current measurement.
High-Frequency Rejection and LoZ functions prevent false readings from ghost voltages.
Designed for industrial electricians and versatile troubleshooting across applications.

Product Description

RS PRO 175 Industrial Clamp Meter is a high-performance True RMS measuring instrument designed for industrial electricians and technicians. It accurately measures AC and DC current up to 600 A and voltage up to 1000 V AC/DC. The clamp meter offers integrated Bluetooth wireless technology for real-time data transfer, enhancing the efficiency of electrical testing and troubleshooting tasks.

This clamp meter features a sturdy fixed jaw probe of 45 mm by 10 mm, enabling reliable and precise current measurements. The device is equipped with advanced High-Frequency Rejection (HFR) and Low Impedance (LoZ) functionalities to eliminate false readings caused by ghost voltages.

The large backlit LCD display ensures clear readings even in dimly lit or poorly visible work areas, complemented by a built-in torchlight for additional lighting support. Non-contact voltage detection enhances safety by allowing the operator to detect live voltages without direct contact.

Powered by two AA batteries, this meter delivers up to 300 hours of uninterrupted operation. It is certified for use within CAT IV 600 V and CAT III 1000 V safety categories, making it suitable for industrial electrical environments.

The RS PRO 175 supports measuring multiple electrical parameters including DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, diode testing, and continuity, making it a versatile tool for comprehensive electrical diagnostics.

True RMS measurement technology for precision readings. Bluetooth wireless data logging and transmission enhances testing efficiency. Non-contact voltage detection and visible continuity indicator increase safety. High safety ratings for industrial and commercial electrical systems.

Robust and ergonomic design with large backlit LCD and integrated torchlight.

This clamp meter is ideal for industrial applications, electrical maintenance, HVAC systems, manufacturing diagnostics, and laboratory testing. It provides reliable and efficient current and voltage measurement solutions, making it an essential instrument for professional electricians and technicians.

Explore more measuring and testing instruments and RS PRO brand products with EnvMart for comprehensive industrial solutions.

Explore more products in our Clamp Meters category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model can measure AC and DC currents up to 600 A.

It can measure AC and DC voltages up to 1000 V.

It is certified for use within CAT IV 600 V and CAT III 1000 V safety categories.

It utilizes True RMS measurement technology, High-Frequency Rejection, and Low Impedance functionalities to ensure accurate readings and prevent false readings from ghost voltages.

This unit can measure DC voltage, diode, resistance, DC current, frequency, continuity, AC voltage, capacitance, and AC current.

The AC voltage resolution is 0.1 V.

It has a battery life of up to 300 hours, powered by two AA batteries.

The dimensions are 240 mm in length, 62 mm in width, and 41 mm in height.

The integrated Bluetooth technology allows for low-power wireless data transmission, enhancing real-time monitoring and data logging capabilities.

It can measure resistance up to a maximum of 60 kΩ.
