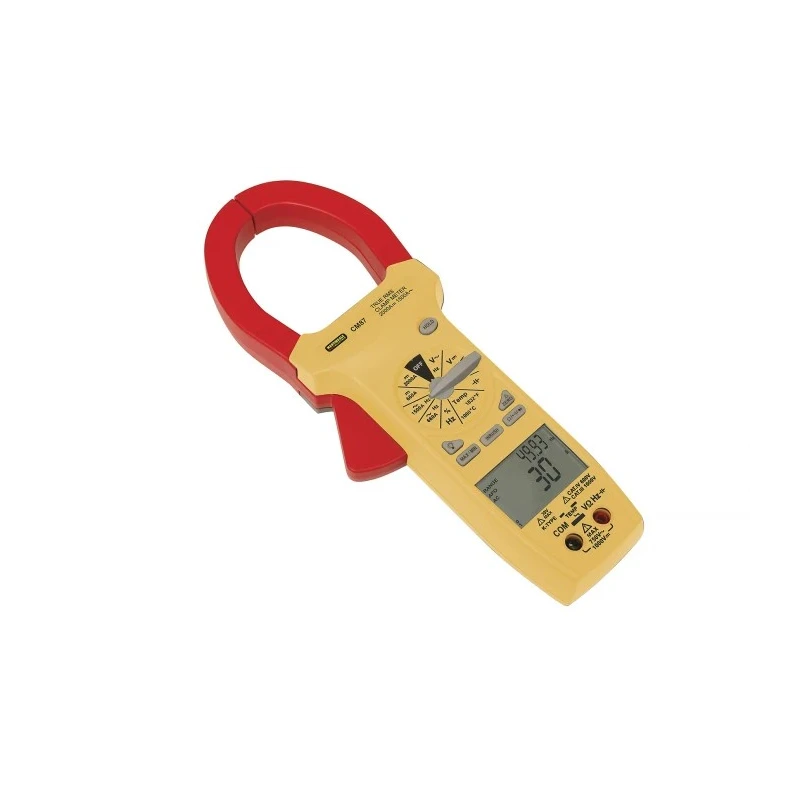

Martindale High Current AC/DC True RMS Clamp Meter 2000 A DC, 1500 A AC, 1000 V DC, 750 V AC MARCM87
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | Bar Graph Display |
| Brand | Martindale |
| Temperature Resolution | 1°C |
| Battery Life | 75h |
| Height | 281mm |
| Length | 108mm |
| Model | MARCM87 |
| Gross Weight | 585g |
| Width | 53mm |
| Maximum Operating Temperature | 40°C |
| AC Voltage Resolution | 1mV ac |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±2 % rdg + 5 Digits |
| DC Voltage Resolution | 1 mV dc |
| Resistance Measurement Accuracy | ±1% + 5 Digits |
| Temperature Measurement Accuracy | ±1.0 % rdg + 2 Digits |
| AC Current Accuracy | ±3% + 5 Digits (60 Hz → 400 Hz) |
| Resistance Resolution | 100mΩ |
| DC Current Resolution | 100mA |
| Maximum Jaw Opening | 57mm |
| Maximum Temperature Measurement | 1000°C |
| Functions Measured | AC Current, Capacitance, Frequency, Temperature, Resistance, DC Current, AC Voltage, DC Voltage |
| Maximum Resistance Measurement | 66mΩ |
| Maximum AC Current Measurement | 1500A ac |
| Maximum DC Voltage Measurement | 1000V dc |
| Maximum DC Current Measurement | 2000A dc |
| Maximum AC Voltage Measurement | 750V ac |
| Safety Category Level | CAT II, CAT III, CAT IV |
| Safety Category Voltage | 600V |
| Maximum Conductor Size | 57mm |
| Clamp Meter Type | AC/DC Clamp Meter |
Key Features
- Measures AC current up to 1500 A and DC current up to 2000 A with True RMS accuracy.
- Supports AC voltage up to 750 V and DC voltage up to 1000 V for versatile testing.
- Equipped with a large 57 mm jaw opening for easy conductor clamping.
- Includes temperature measurement using type K thermocouple up to 1000°C.
- Features resistance measurement to 66 MΩ and capacitance measurement to 6.6 mF.
- Offers frequency testing up to 1 MHz and duty cycle measurement from 5 to 95%.
- True RMS technology ensures accuracy on irregular waveforms in complex electrical environments.
- Robust design with bar graph display and 6600 count LCD for clear readings.
Product Description
Martindale MARCM87 clamp meter delivers high performance for AC and DC current measurements with True RMS technology ensuring precision on irregular waveforms. This clamp meter can measure AC current up to 1500 A and DC current up to 2000 A, alongside AC voltage up to 750 V and DC voltage to 1000 V, making it suitable for a wide range of electrical testing tasks.
The large 57 mm jaw opening allows easy clamping of conductors while resistance measurements reach up to 66 MΩ and capacitance up to 6.6 mF. It supports frequency tests up to 1 MHz and duty cycle measurements between 5 to 95%. Temperature measurement is enabled via a type K thermocouple (included) capable of measuring up to 1000°C (1832°F), suitable for HVAC and industrial temperature diagnostics.
The device features a 6600 count LCD display with bar graph for clear, easy-to-read output. It operates at temperatures between 0°C and 40°C and complies with safety category ratings CAT II, CAT III, and CAT IV, with 600 V safety voltage rating, ensuring safe operation in industrial environments.

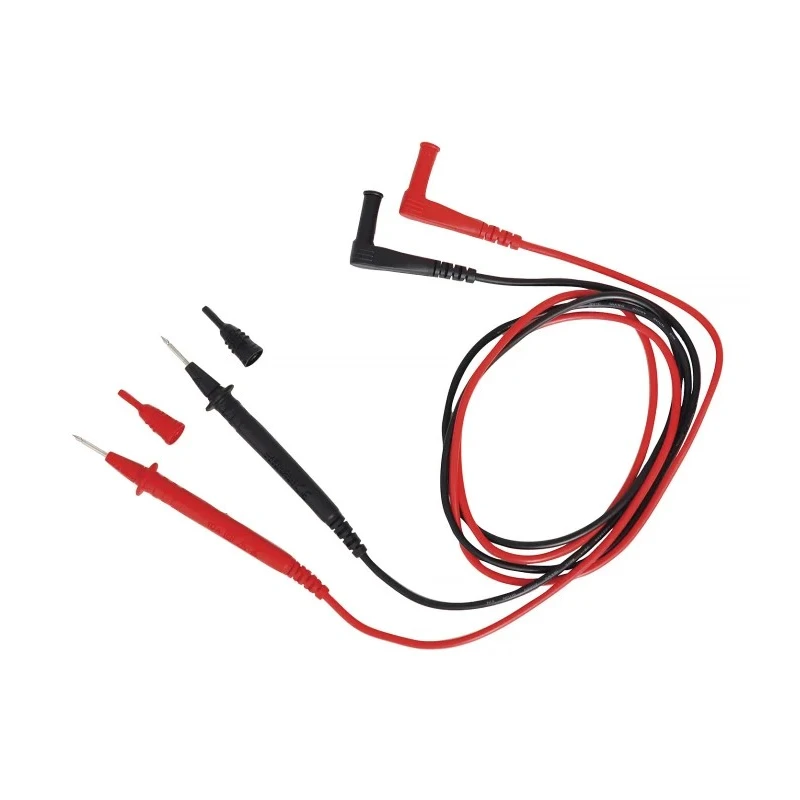

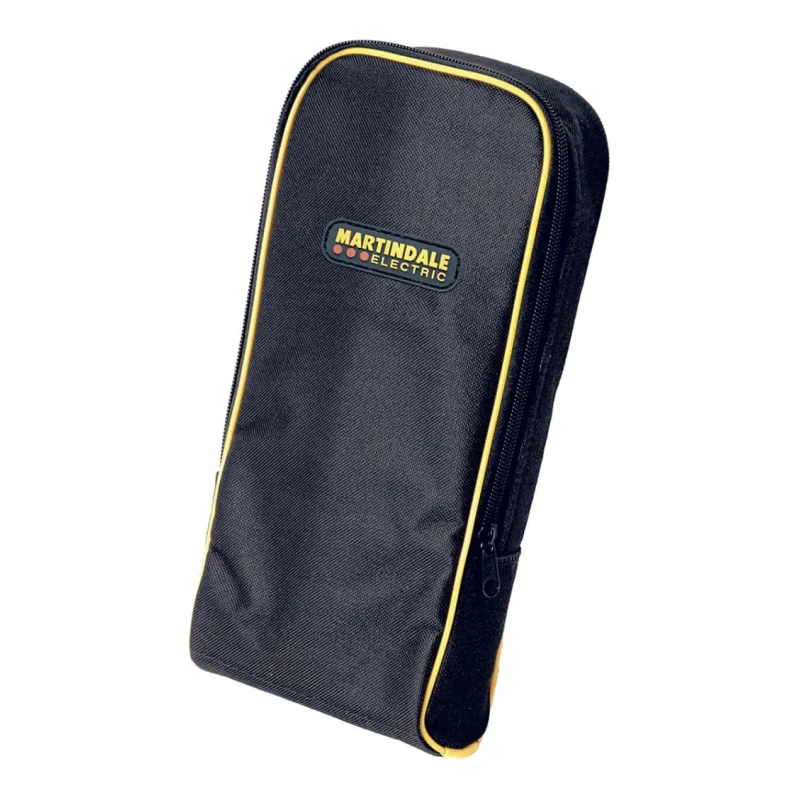

This clamp meter is powered by a 9V PP3 battery (installed) with a battery life of approximately 75 hours, making it reliable for extended fieldwork. The unit is supplied with a carrying case, TL16 test leads, and instructions to facilitate user convenience and tool protection.
Martindale MARCM87 is ideal for professional use in industrial, laboratory, HVAC, construction, electrical maintenance, and quality control applications, providing accurate and versatile measurement capabilities.
AC and DC current measurement up to 1500 A and 2000 A respectively with True RMS accuracy. Voltage measurements up to 750 V AC and 1000 V DC for broad electrical applications. Large jaw opening of 57 mm accommodates various conductor sizes for flexible use.
Temperature measurements with included type K thermocouple up to 1000°C. Resistance testing up to 66 MΩ and capacitance up to 6.6 mF for component diagnostics. Explore more Measuring & Testing Instruments on EnvMart for your professional needs.
Explore more products in our Clamp Meters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure AC current up to 1500 A.
It can measure DC current up to 2000 A.
The clamp meter supports AC voltage measurements up to 750 V and DC voltage up to 1000 V.
It features a bar graph display along with a 6600 count LCD for clear readings.
It can measure temperatures up to 1000°C using a type K thermocouple.
The accuracy for DC current measurements is ±2 % reading + 5 digits.
It can measure resistance up to 66 MΩ with an accuracy of ±1% + 5 digits.
The dimensions of this unit are 281 mm in height, 108 mm in length, and 53 mm in width.
It has a battery life of approximately 75 hours, powered by a 9V PP3 battery.
It complies with safety category ratings CAT II, CAT III, and CAT IV, with a safety voltage rating of 600 V.
It measures AC current, DC current, AC voltage, DC voltage, resistance, capacitance, frequency, and temperature.
The maximum jaw opening is 57 mm, allowing for easy clamping of various conductor sizes.
