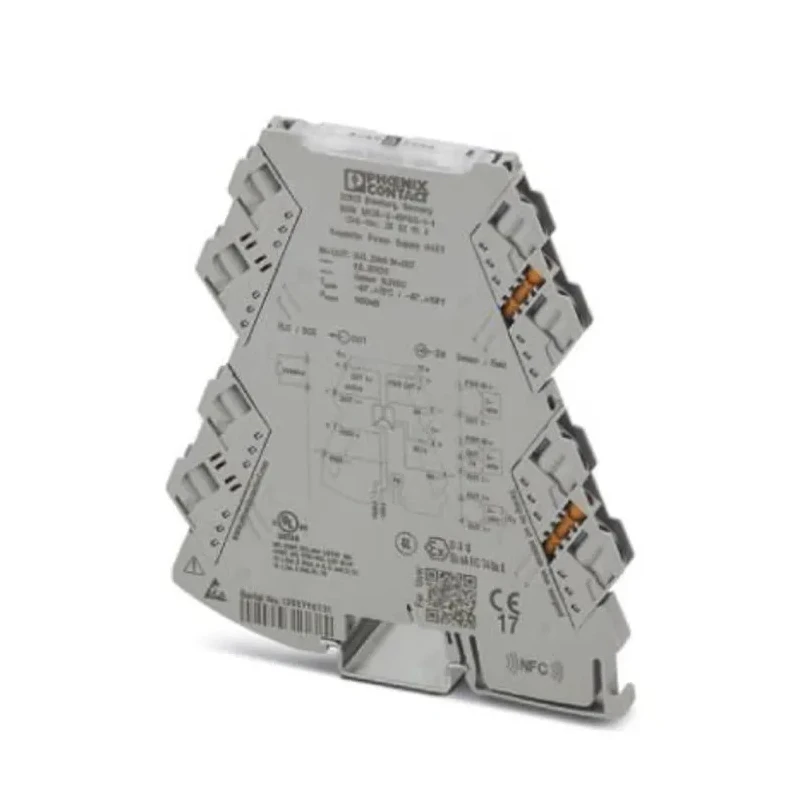

Phoenix Contact MINI MCR Series Signal Conditioner Current Input Current Output 30 V dc 9.6 V dc Supply 2902014
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Model | 2902014 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | MINI MCR |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Output Range | 0 → 24 mA, 4 → 24 mA |
| Input Range | 0 → 20 mA, 4 → 20 mA |
| Supply Voltage | 30, 9.6V dc |
| Hazardous Area Certification | C, Groups A, Class I, Group IIC, ATEX, B, D T5, Div 2, Zone 2 |
| Input Signal Type | Current |
| Easy startup and servicing | measures signals without disconnecting current loops and optional disconnect function |
Key Features
- This signal conditioner supports input ranges of 0 to 20 mA and 4 to 20 mA.
- Output ranges include 0 to 24 mA and 4 to 24 mA for flexible signal transmission.
- It features DIN rail mounting and screw terminal connections for secure installation.
- Designed for hazardous areas with certifications including ATEX and UL 508 listed.
- Operating temperature ranges from -40°C to 70°C providing excellent environmental tolerance.
- The product has a compact housing with a width of 6 mm enabling space-saving control panel layouts.
- Easy startup with measures signals without disconnecting current loops and optional disconnect function.
- Supports NFC communication for configuration via software or smartphone without additional accessories.
Product Description
Phoenix Contact 2902014 MINI MCR Series Signal Conditioner is a highly compact device designed for industrial automation and electrical control applications. It provides reliable signal conditioning with current input and output interfaces, operating with supply voltages of 30 V dc and 9.6 V dc. The unit is suited for harsh environments, certified for hazardous areas including ATEX, C Groups A and B, Class I Groups IIC, and features robust standards compliance such as EN 61000 and UL 508.
The product features a slim 6 mm housing with plug-in connection technology for convenient installation on DIN rails. Screw terminal connections ensure secure wiring. Operating temperature range extends from -40°C to 70°C allowing use in varied industrial conditions. IP20 rating offers protection from solid intrusions.
Startup is straightforward with the ability to measure signals without disconnecting current loops and an optional disconnect function. Extended configuration options via software or smartphone apps are enabled through NFC communication, avoiding the need for additional accessories.
This signal conditioner supports input current ranges of 0 to 20 mA and 4 to 20 mA. Output current ranges are from 0 to 24 mA and 4 to 24 mA, facilitating precise current signal scaling. Mounting is via DIN rail, with screw-type terminal connections for wiring security.
Certified for hazardous environments including ATEX and UL standards ensuring safe operation. Wide operating temperature window from -40°C to 70°C enhances environmental robustness. Compact 6 mm width housing promotes efficient use of panel space in industrial control setups.
Easy commissioning and servicing reduce downtime and maintenance complexity. Supports NFC communication for tool-free configuration and diagnostics.
This MINI MCR Series Signal Conditioner is ideal for industrial automation, manufacturing, process control, and HVAC applications requiring precise and reliable current signal conditioning. Its compliance with international standards and hazardous area certifications makes it suitable for demanding electrical installations.
Explore more Phoenix Contact Signal Conditioners and components at EnvMart to enhance your industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input range for this model is 0 to 20 mA and 4 to 20 mA.
It supports output ranges of 0 to 24 mA and 4 to 24 mA.
This signal conditioner operates with supply voltages of 30 V dc and 9.6 V dc.
The operating temperature range extends from -40°C to 70°C.
It features DIN rail mounting for secure installation.
It uses screw terminal connections for secure wiring.
It is certified for hazardous areas including ATEX, Class I Groups A and B, and Group IIC.
Yes, it supports NFC communication for configuration via software or smartphone without additional accessories.
The IP rating is IP20, providing protection from solid intrusions.
This model has one channel for signal conditioning.
It can measure signals without disconnecting current loops and includes an optional disconnect function for convenience.
The country of origin for this signal conditioner is Germany.
