Amprobe AC/DC Clamp Meter 600 A AC, 600 V DC, 600 V AC, LCD Display, CAT III Safety Rating ACD-10 PLUS

Name: Amprobe AC/DC Clamp Meter 600 A AC, 600 V DC, 600 V AC, LCD Display, CAT III Safety Rating ACD-10 PLUS
Brand: AMPROBE
SKU: 371843
Price: 205.59 USD
Availability: InStock



Category Clamp Meters Brand AMPROBE Condition New

Specifications

Country of Origin	Taiwan
Display Type	LCD
Brand	Amprobe
Battery type	3 V Coin Battery
Height	32mm
Length	190mm
Model	ACD-10 PLUS
Gross Weight	139g
Width	63mm
Maximum Operating Temperature	40°C
Minimum Operating Temperature	0°C
Resistance Measurement Accuracy	±2% + 4 Digits
AC Current Accuracy	±1.5 % rdg + 8 Digits
Maximum Jaw Opening	26mm
Functions Measured	AC Current, AC Voltage, DC Voltage, Frequency, Resistance
Maximum Resistance Measurement	40mΩ
Maximum AC Current Measurement	600A ac
Maximum DC Voltage Measurement	600V dc
Maximum AC Voltage Measurement	600V ac
Safety Category Level	CAT III
Safety Category Voltage	600V
Maximum Conductor Size	26mm
Clamp Meter Type	AC/DC Clamp Meter

Key Features

Capable of measuring AC current up to 600 A for comprehensive current diagnostics.
Measures AC and DC voltage levels up to 600 V for versatile electrical testing.
Features resistance measurement capability up to 40MΩ for insulation and continuity checks.
Equipped with a 26mm maximum jaw opening to accommodate various conductor sizes.
Compact and lightweight design at 139g reduces user fatigue during extended use.
AC current measurement accuracy is specified at ±1.5% reading plus 8 digits for precise results.
DC voltage accuracy is ±0.3% reading plus 4 digits, ensuring reliable low voltage readings.
Battery-powered using a 3 V coin cell battery, suitable for field portability.

Product Description

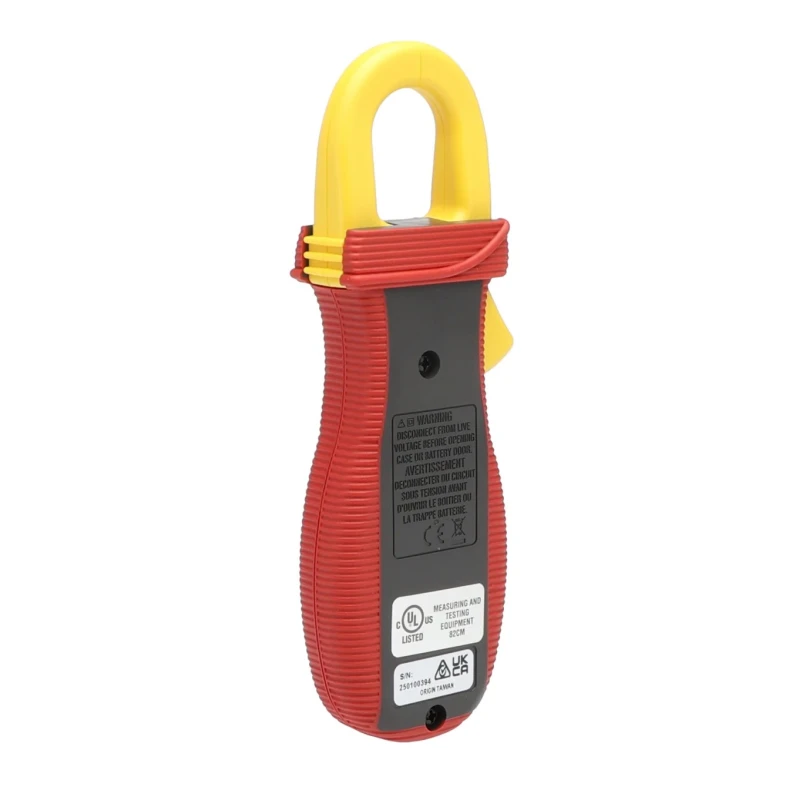

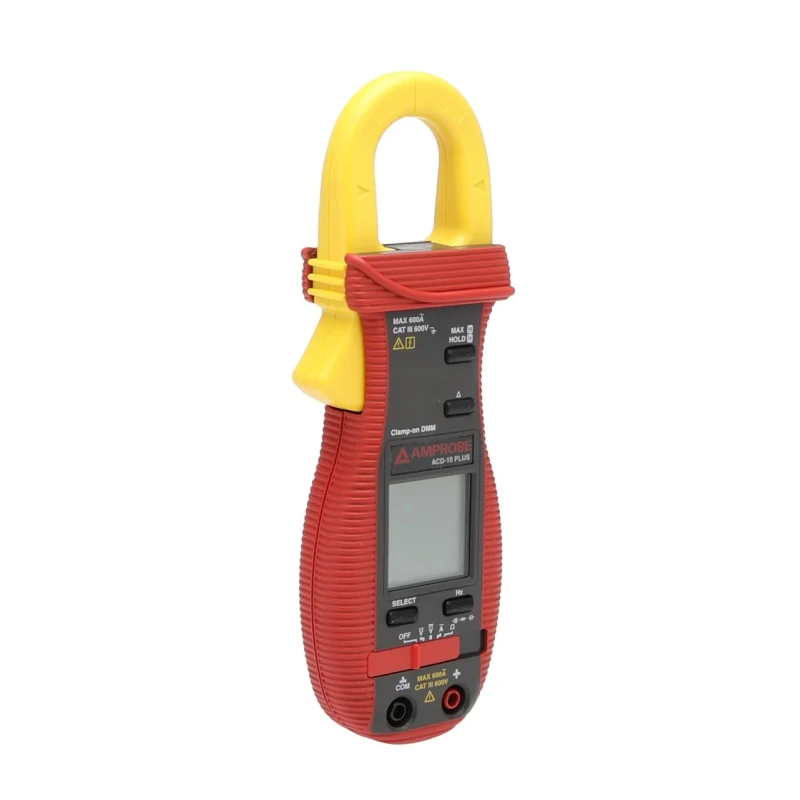

The Amprobe ACD-10 PLUS AC/DC Clamp Meter is a handheld instrument engineered for precise measurement of electrical parameters in industrial and maintenance applications. Designed for installations rated up to 600 V CAT III, this meter enables electricians and maintenance technicians to perform AC current, AC and DC voltage, frequency, and resistance measurements safely and efficiently.

Its maximum AC current measurement reaches 600 A, allowing non-invasive current checks through conductors up to 26mm in diameter. The meter accommodates AC and DC voltage measurements up to 600 V with high accuracy, suitable for live circuit diagnostics and control panel inspections.

This clamp meter offers resistance measurement capabilities up to 40 megaohms, making it a versatile tool for continuity and insulation testing. Despite lacking True RMS capability, it delivers reliable readings for standard industrial troubleshooting and motor and generator frequency analysis.

Constructed for comfort and prolonged use, the meter weighs only 139 grams and features an LCD display for clear reading under various light conditions. It operates on a 3 V coin battery, ensuring portability without the need for external power sources.

Applications include troubleshooting electrical distribution circuits up to 600 V, verifying AC current draw on motors and pumps, assessing DC supply rails in control panels, and conducting component resistance checks during field repairs. The compact jaw facilitates access to conductors where space is limited.

Measures AC current up to 600 amps for reliable load verification. AC and DC voltage measurement up to 600 volts for live circuit testing. Resistance measurement up to 40 megaohms for thorough insulation checks. Lightweight and compact design minimizes operator fatigue.

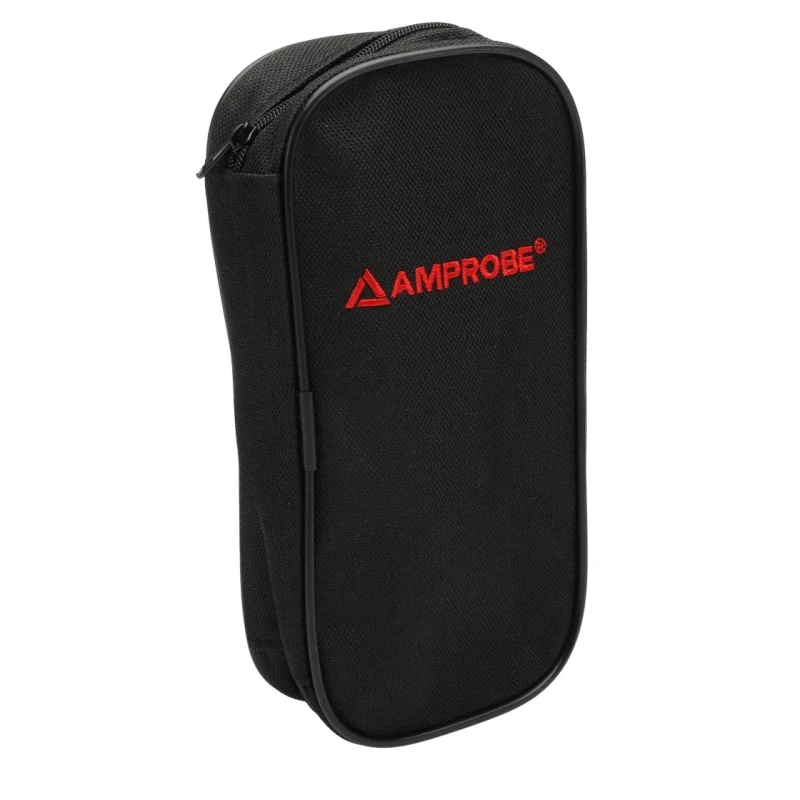

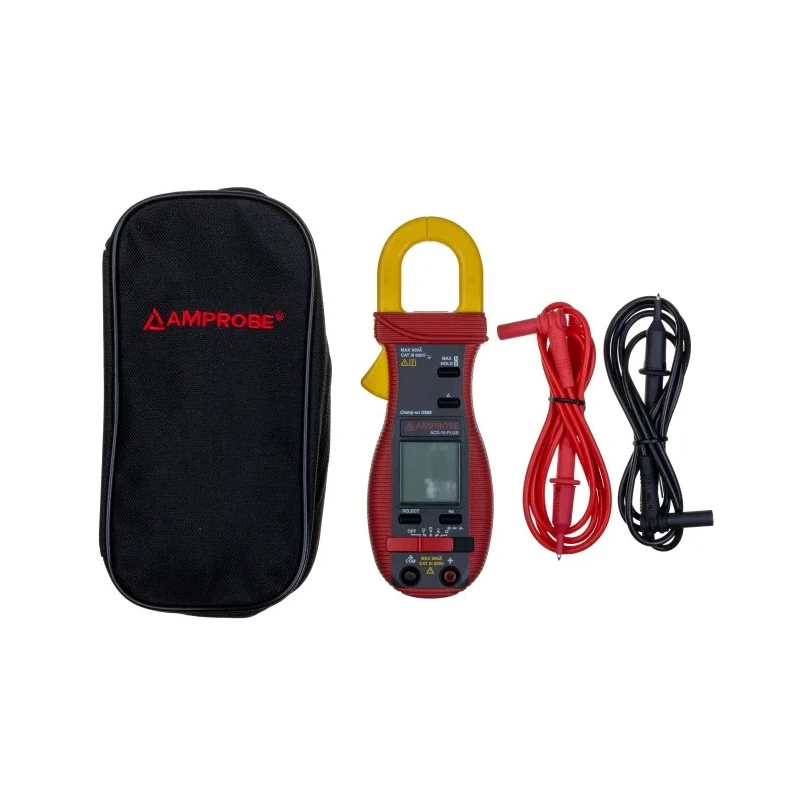

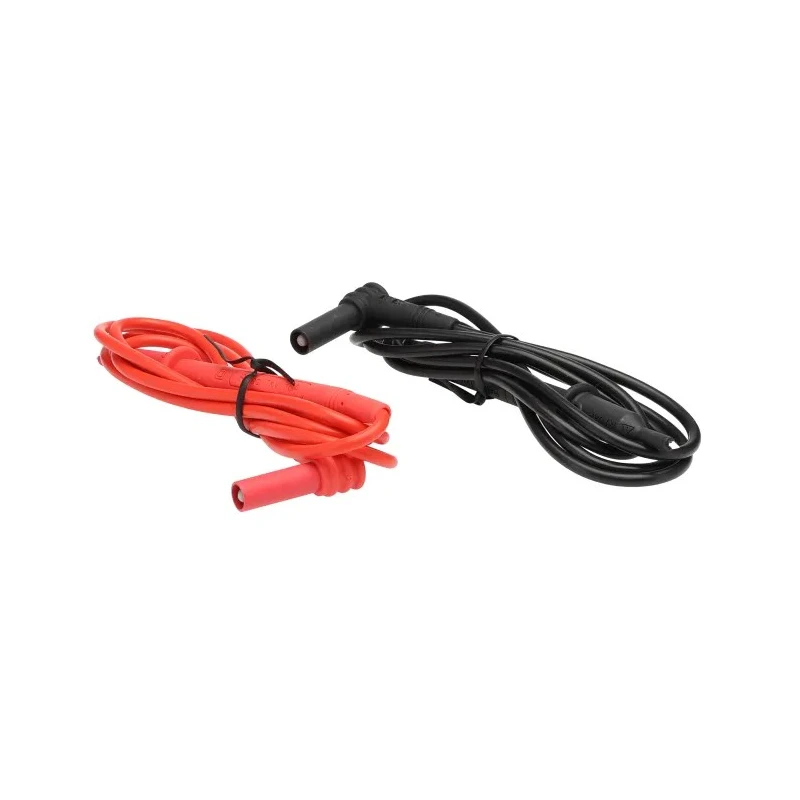

Includes test leads, battery installed, soft carrying pouch, and user manual for complete usage.

This clamp meter is ideal for industrial, maintenance, and electrical testing scenarios requiring a practical and portable solution. Explore more precision measuring instruments in the EnvMart Clamp Meter category for complementary tools and accessories.
