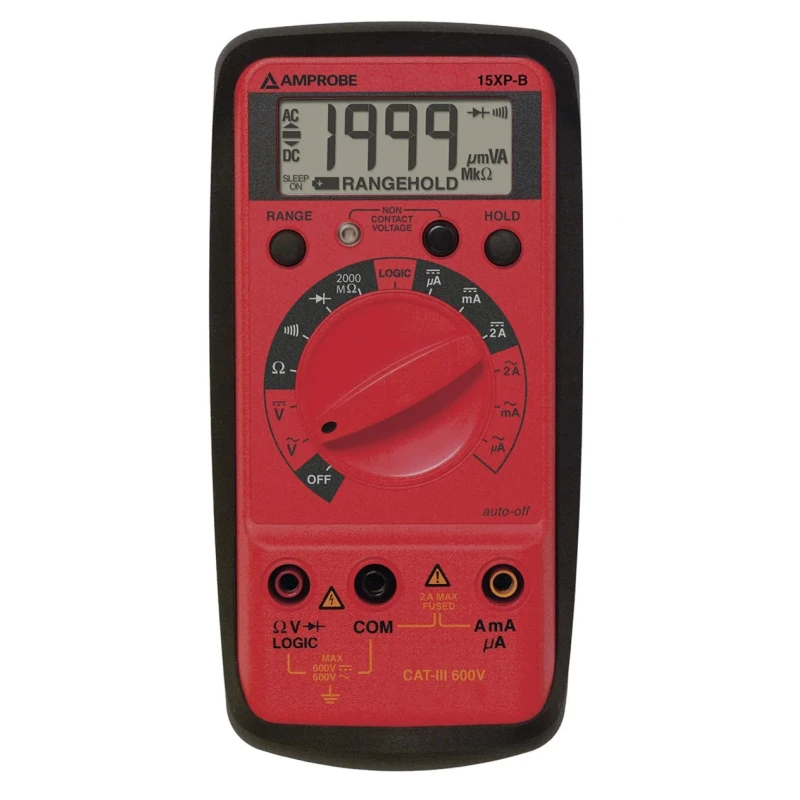

Amprobe Handheld Digital Multimeter 2 A AC/DC, 750 V AC 15XP-B

Free Delivery in India | Lowest Global Shipping Charges

Amprobe Handheld Digital Multimeter 2 A AC/DC, 750 V AC 15XP-B

Name: Amprobe Handheld Digital Multimeter 2 A AC/DC, 750 V AC 15XP-B
Brand: AMPROBE
SKU: 215148
Price: 171.89 USD
Availability: InStock



Category Multimeter Brand AMPROBE Condition New

Specifications

Country of Origin	Taiwan
Display Type	LCD
Brand	Amprobe
Battery Life	200h
Height	155mm
Length	32mm
Model	15XP-B
Gross Weight	210g
Width	72mm
Series	15XP-B
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
DC Current Accuracy	±2 % rdg + 3 Digits
DC Voltage Resolution	100 V dc
Resistance Measurement Accuracy	±5 % rdg + 20 Digits
AC Current Accuracy	±2.5 % + 5 Digits
Resistance Resolution	100mΩ
AC Current Resolution	0.1μA ac
DC Current Resolution	0.1μA dc
Standards/Approvals	IEC 6F22, NEDA 1604, JIS 006P
Multimeter Type	Handheld
Functions Measured	AC Current, AC Voltage, DC Current, DC Voltage, Diode Test, Logic Test, Resistance
Maximum Resistance Measurement	2Ω
Maximum AC Current Measurement	2A ac
Maximum DC Voltage Measurement	600V dc
Maximum DC Current Measurement	2A dc
Maximum AC Voltage Measurement	750V ac
Maximum Frequency	500Hz
Safety Category Level	CAT II, CAT III
Safety Category Voltage	600V

Key Features

Measures AC and DC voltage up to 750 V and 600 V respectively with high accuracy.
Supports AC and DC current testing up to 2 A for versatile electrical troubleshooting.
Includes resistance measurement up to 2 Ω for electrical component diagnostics.
Features LCD display with clear 3.5-digit readout and automatic polarity indication.
Equipped with diode test and logic-level test functions for comprehensive circuit analysis.
Battery powered with up to 200 hours of operation for extended field use.
Operates safely within CAT II and CAT III safety levels at 600 V.
Compact and portable design with ergonomic dimensions of 155 mm height and 72 mm width.

Product Description

Amprobe 15XP-B handheld digital multimeter is a compact, battery-powered instrument designed for electrical measurement and component diagnostics in industrial and field environments. This multimeter offers AC and DC voltage and current testing up to 750 V AC, 600 V DC, and 2 A current, making it suitable for technicians working on automation, electronics, and mechanical systems.

The device includes resistance and diode measurement capabilities along with logic-level testing for digital circuit verification. It features a 3.5-digit LCD display with automatic polarity and a nominal measurement update rate of approximately 2.5 times per second, providing clear and stable readings during troubleshooting.

Designed for safety and durability, the 15XP-B is rated for CAT II and CAT III safety categories at 600 V and includes a 2A/1000V fast-blow ceramic fuse for input circuit protection. Its compact ergonomic design with dimensions of 155 mm height, 72 mm width, and 32 mm length makes it easy to handle during field work.

The multimeter operates on batteries with an expected battery life of 200 hours, supporting extended use in industrial, laboratory, construction, HVAC, manufacturing, and electrical maintenance applications.

Measures AC and DC voltage and current with accuracies tailored for industrial troubleshooting. Provides component-level diagnostics through resistance, diode, and logic test functions. Compact and rugged design suitable for field technicians and industrial environments.

Wide temperature range and compliance with international standards ensure reliability. Safety features include overload protection and certified safety categories for user protection.

This Amprobe handheld multimeter 15XP-B is ideal for use in industrial control panels, automation equipment commissioning, HVAC system maintenance, and on-site voltage safety verification. Explore the Multimeters category at EnvMart for more professional measurement instruments.
