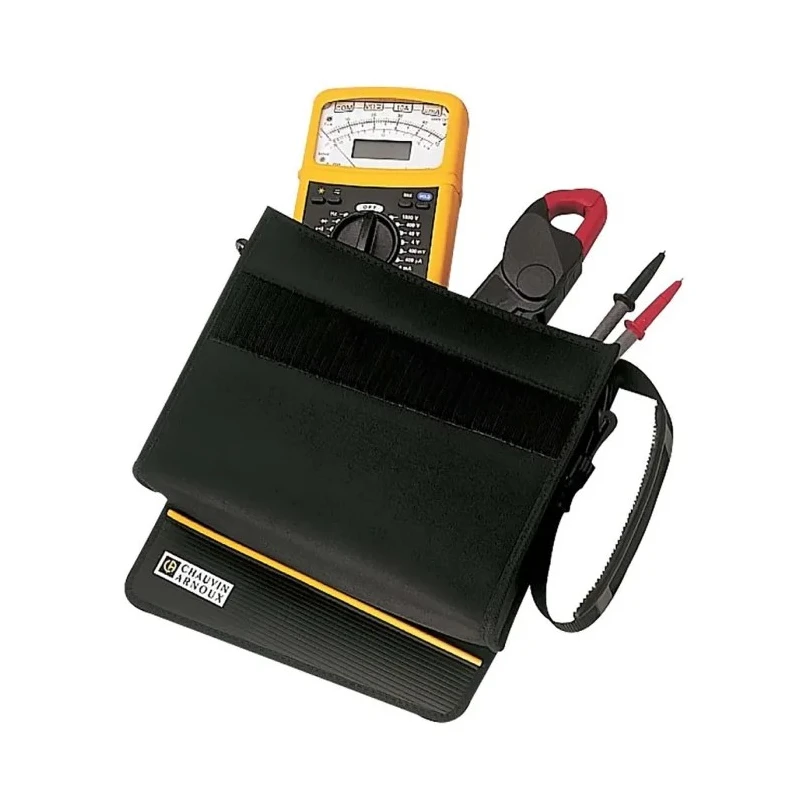

Chauvin Arnoux Handheld Multimeter CA 5011, 5 AC/DC Voltage Ranges up to 600 V, 6 AC/DC Current Ranges up to 10 P01196311E

Free Delivery in India | Lowest Global Shipping Charges

Chauvin Arnoux Handheld Multimeter CA 5011, 5 AC/DC Voltage Ranges up to 600 V, 6 AC/DC Current Ranges up to 10 P01196311E

Name: Chauvin Arnoux Handheld Multimeter CA 5011, 5 AC/DC Voltage Ranges up to 600 V, 6 AC/DC Current Ranges up to 10 P01196311E
Brand: Chauvin Arnoux
SKU: 323585
Price: 975.44 USD
Availability: InStock



Category Multimeter Brand Chauvin Arnoux Condition New

Specifications

Country of Origin	France
Frequency	3 ranges 4 kHz / … / 400 kHz
Brand	Chauvin Arnoux
Battery Life	300h
Height	56mm
Length	160mm
Model	P01196311E
Gross Weight	500g
Width	105mm
Resistance	6 ranges 400 Ω / … / 40 MΩ
AC Current Accuracy	±2 % rdg + 5 Digits
Standards/Approvals	IEC 61010-1/IEC 61326-1
Multimeter Type	Handheld
Functions Measured	AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance
Maximum Resistance Measurement	40mΩ
Maximum Frequency	10kHz
dB scale	-20 to 16 dB
AC and DC voltage	5 ranges 400 mV / … / 600 V
AC and DC current	6 ranges 400 μA / … / 10 A

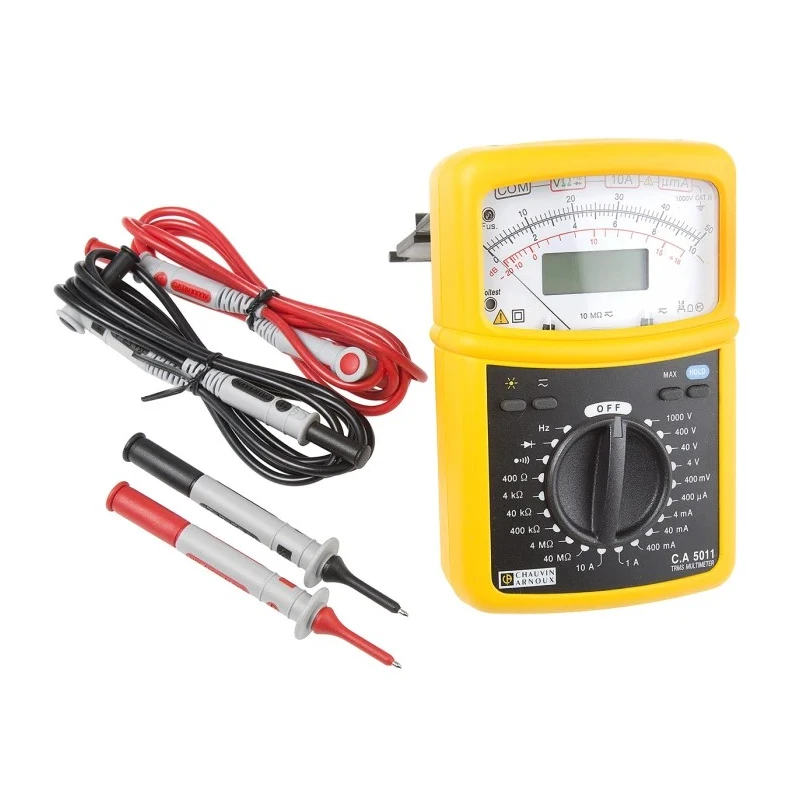

The CA 5011 multimeter is supplied with	1 set of silicone leads straight banana plug / angled banana plug, 1 set of safety test probes, 1 9V 6LR06 battery
Two additional readings	- digital for accuracy, backlit - analogue to assess measurement trends

Key Features

Measures AC/DC voltage from 400 mV to 600 V with 5 ranges.
Measures AC/DC current from 400 µA to 10 A with 6 ranges.
Resistance measurement up to 40 MΩ across 6 ranges.
Includes frequency measurement up to 10 kHz and dB scale -20 to 16 dB.
Equipped with diode test, continuity check, and automatic AC/DC recognition.
Backlit 4000-count digital display plus analog display for trend analysis.
Robust shockproof casing with fold-away multi-purpose stand for worksite and laboratory use.
Long battery life of 300 hours on a single 9V battery.

Product Description

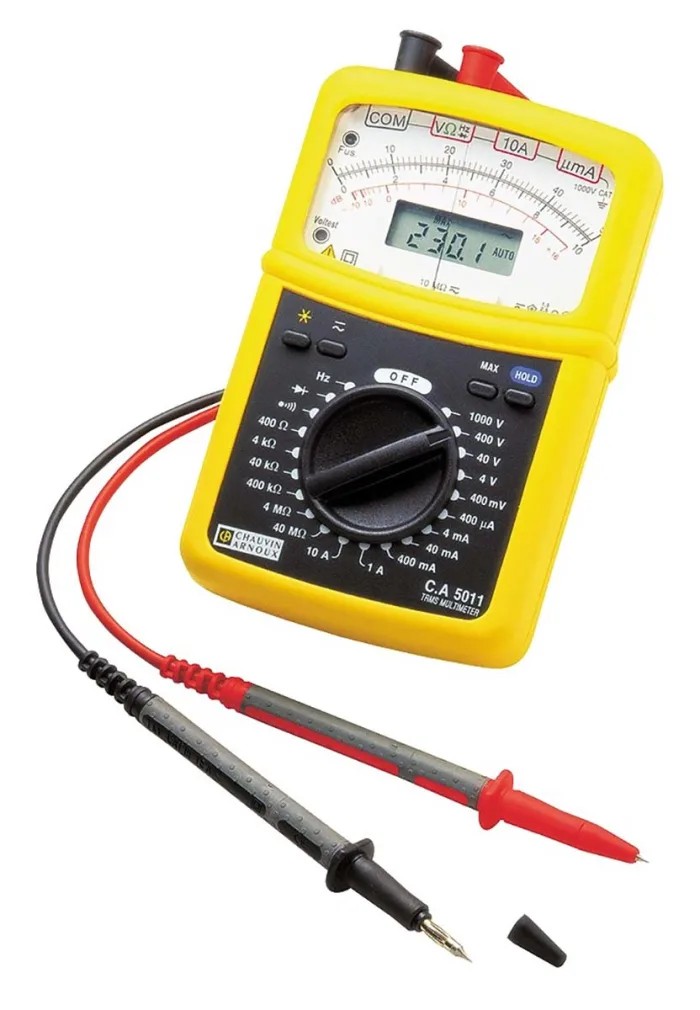

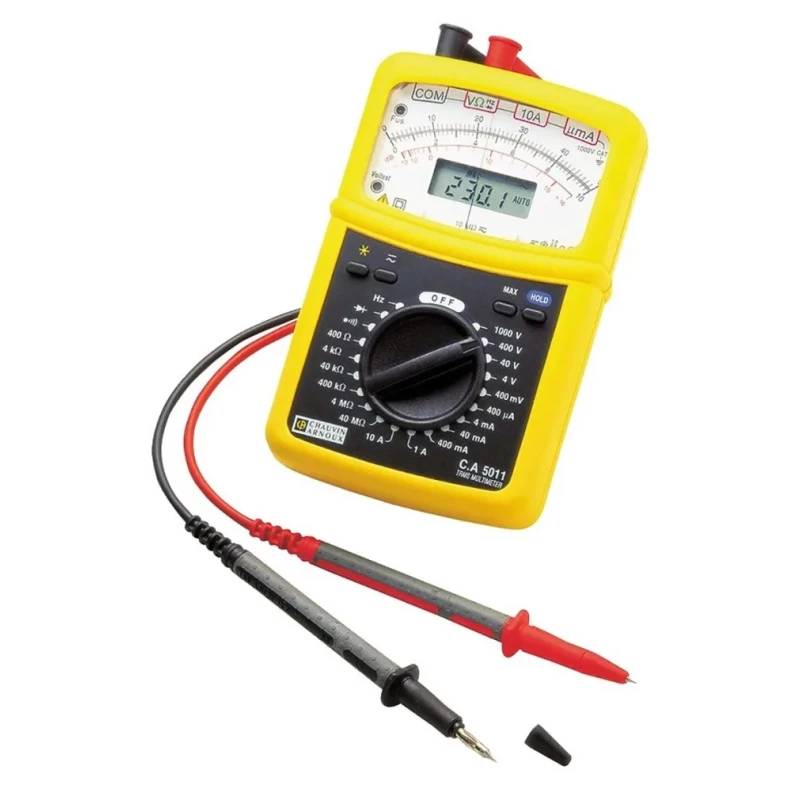

Chauvin Arnoux P01196311E handheld multimeter CA 5011 combines analogue and digital measurement methods to provide accurate and reliable testing of electrical parameters. It supports True RMS measurements for AC signals ensuring precision on sinusoidal and distorted signals, while automatic AC/DC recognition simplifies operation.

This multimeter is designed with durability and fieldwork in mind, featuring a shockproof casing and a folding “Multistand” stand for stability and ease of use both on worksites and in laboratory environments.

The CA 5011 model offers versatile functionality including AC and DC voltage with 5 measurement ranges up to 600 V, AC and DC current with 6 ranges up to 10 A, resistance measurement up to 40 MΩ, frequency measurement up to 10 kHz, diode testing, continuity testing, and a dB scale for audio or acoustic measurements.

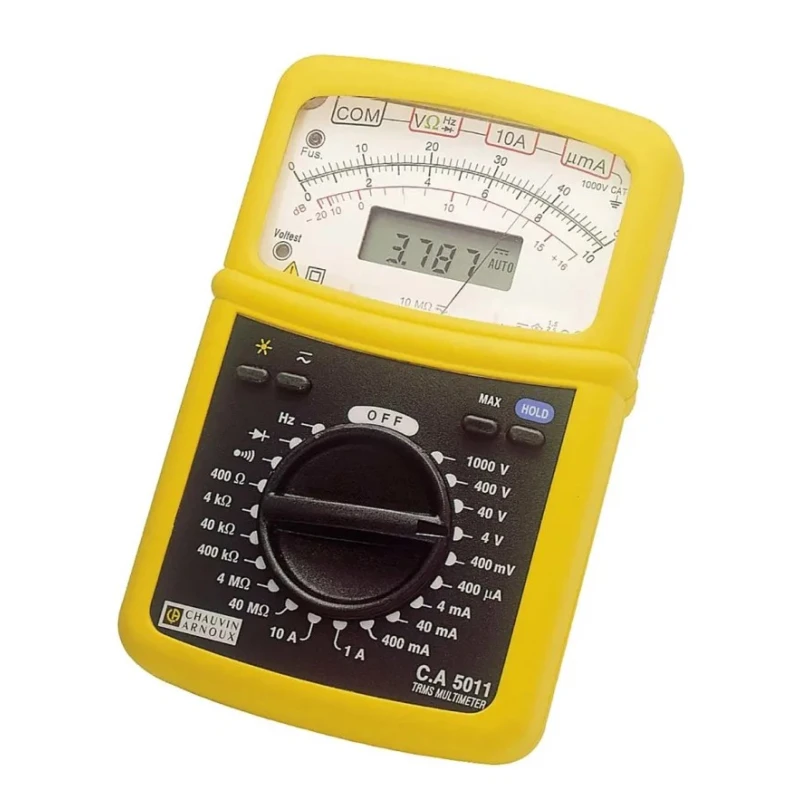

Its dual-display system includes a backlit 4000-count digital display for accuracy and an analogue display to assess measurement trends visually, ideal for detecting signal fluctuations and trends in electrical systems.

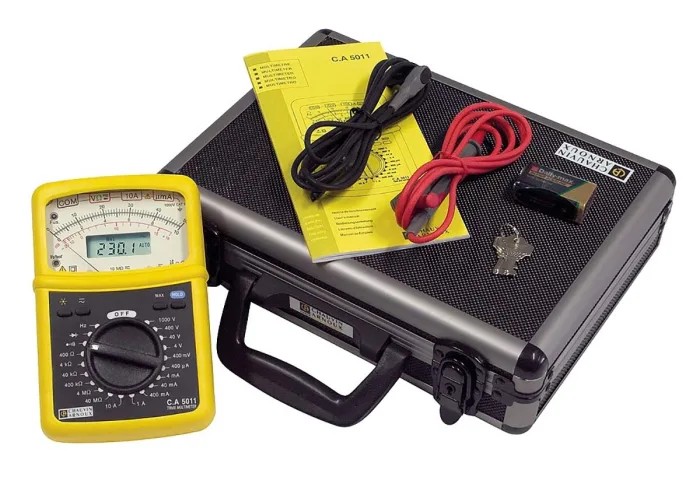

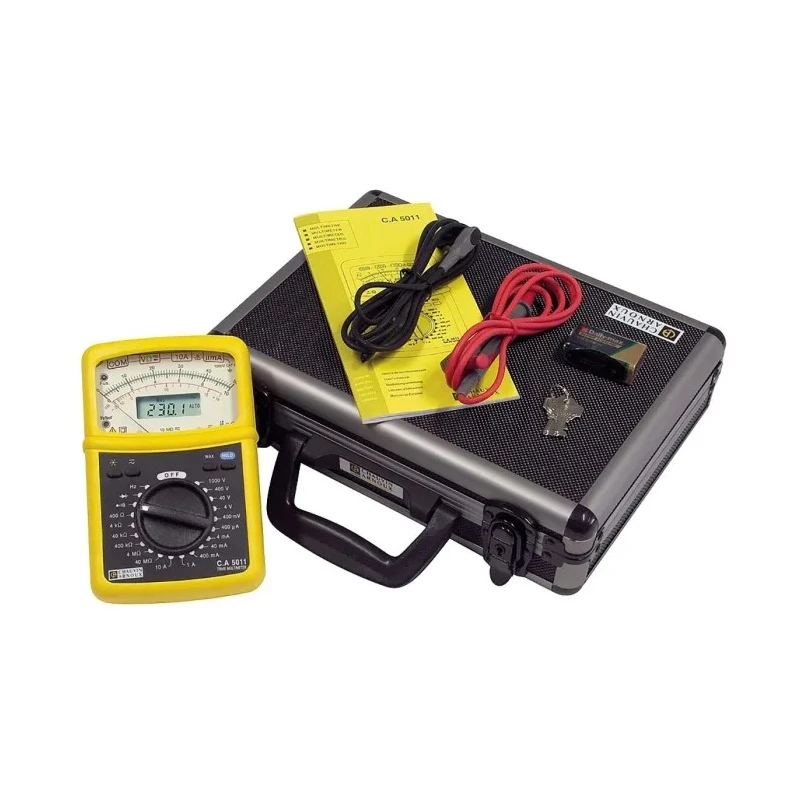

Supplied complete with silicone leads featuring straight and angled banana plugs, safety test probes, and a 9V 6LR06 battery, ready for immediate deployment. The instrument complies with IEC 61010-1 and IEC 61326-1 standards, rated CAT III 1000 V and CAT IV 600 V, confirming robust safety levels for industrial and laboratory testing.

This handheld multimeter is widely used across industrial machinery maintenance, laboratory testing, HVAC system troubleshooting, electrical installation verification, commercial equipment diagnostics, and general electrical safety testing.

Measures multiple electrical parameters including voltage, current, resistance, frequency, continuity, and diode functionality. Automatic AC/DC recognition facilitates ease of use in complex circuits. Durable, shock-resistant casing ensures protection in harsh environments.

Foldable stand for situational convenience in field or lab use. Supplied with essential accessories for immediate operation. Explore more professional Multimeter products by Chauvin Arnoux and related test instruments for comprehensive electrical measurement solutions at EnvMart.
