Chauvin Arnoux Insulation & Continuity Tester 50 V Min 1 kV Max 200 GΩ CAT IV CA 6524 P01140824

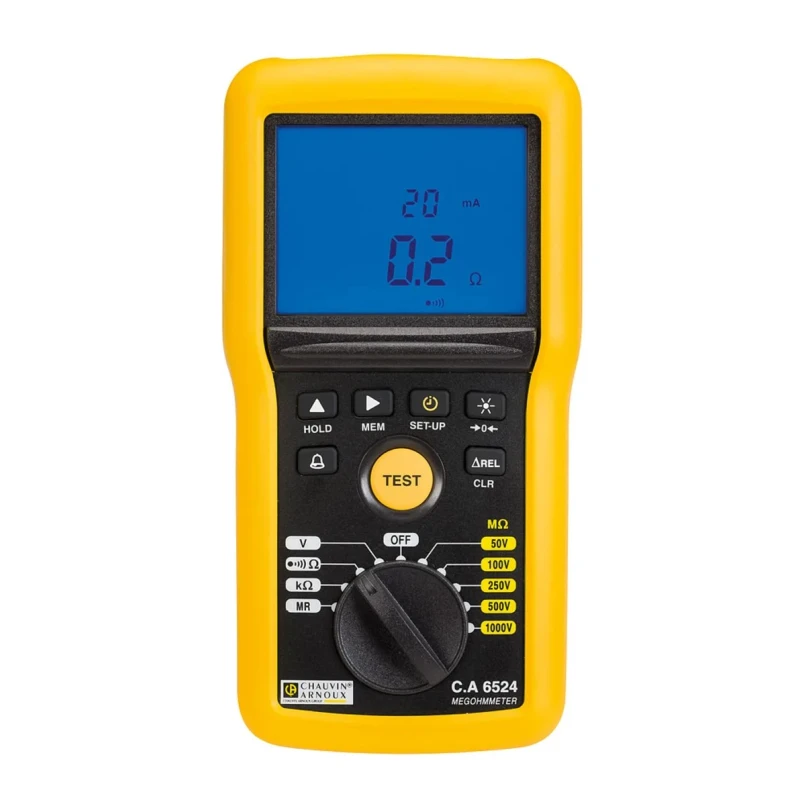

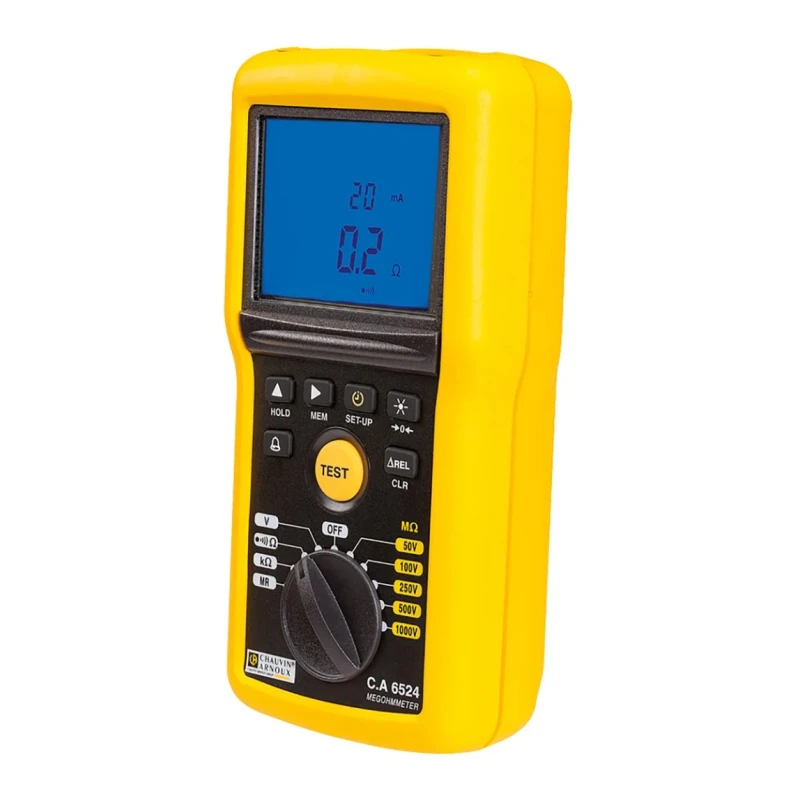

Chauvin Arnoux CA 6524 Insulation & Continuity Tester is a reliable digital tester designed primarily for industrial maintenance and electrical insulation testing. With a minimum test voltage of 50 V and a maximum of 1 kV, it can accurately measure insulation resistance up to 200 GΩ, making it suitable for detecting insulation aging and preventing electrical faults.

This model features PI (Polarization Index) and DAR (Dielectric Absorption Ratio) ratio measurements which help evaluate the quality and condition of insulation materials over time. The tester is equipped with a high-resolution digital display comprising 2 x 4000 counts and a logarithmic bar graph for clear visual representation of measurement data.

Compact and lightweight, with dimensions of 211 mm height, 108 mm length, and 60 mm width, it weighs 850 g, making it easily portable for fieldwork. Its IP 54 rating protects against dust and splash water, suitable for demanding industrial environments. The unit operates on AA batteries and uses a test current of 200 mA to perform tests, offering convenience and extended usage.

Safety is paramount with CAT IV safety category and 600 V safety voltage standard compliance, ensuring safe testing on live electrical installations. The instrument functions reliably across a wide temperature range from -20°C to 55°C, suitable for varied climatic and operational conditions.

The package includes a carrying bag for hands-free operation, a set of elbowed-straight safety leads (1.5 m long, red and black), a red crocodile clip, a black test probe, six AA batteries, a multilingual user manual on CD, a quick start guide, and a multilingual safety datasheet. This comprehensive kit supports both industrial, construction, and electrical maintenance applications by providing a robust tool for insulation and continuity testing.

Chauvin Arnoux insulation testers like the CA 6524 are widely used in electrical maintenance, quality control, and preventive maintenance in industrial and commercial installations. Its detailed measurement features help to avoid incidents by identifying insulation weaknesses early.

Measures insulation over programmed durations for precise and reliable testing. PI and DAR ratios provide in-depth analysis of insulation condition. Memory storage allows comparison of past measurements for trend analysis.

Compact and lightweight design facilitates easy transport and handling. IP 54 protection rating ensures resistance to dust and water splashes. Operates on AA batteries, enabling prolonged field use. Safety rated at CAT IV for protection when working with high voltage installations.

Wide operational temperature range from -20°C to 55°C for versatile use. Includes comprehensive accessory kit for immediate use and user convenience. For exploring more about electrical testing instruments and Insulation Testers, browse the related categories on EnvMart.
