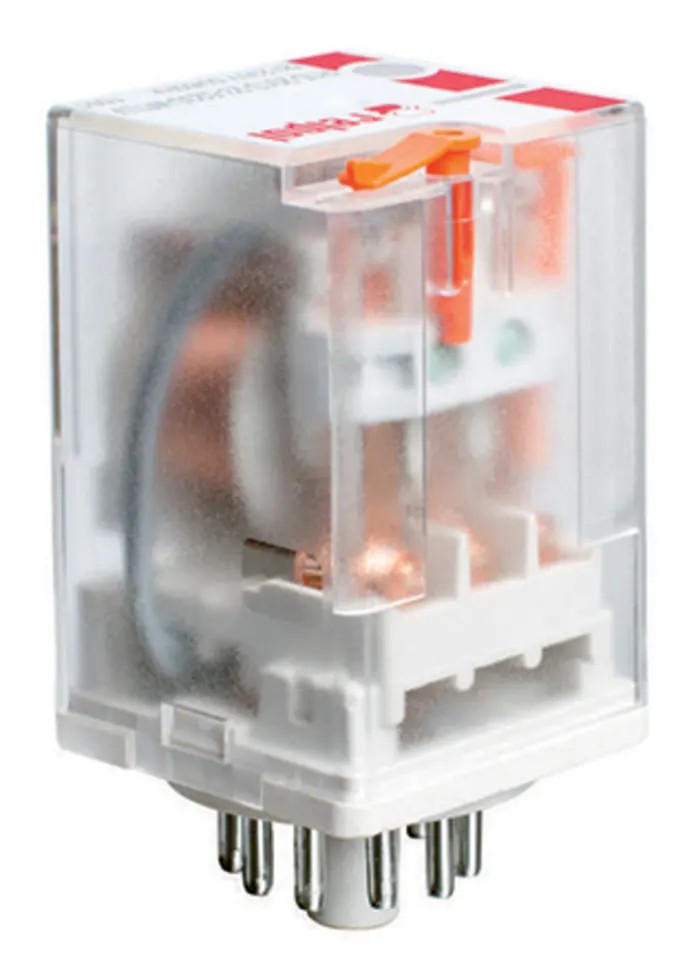

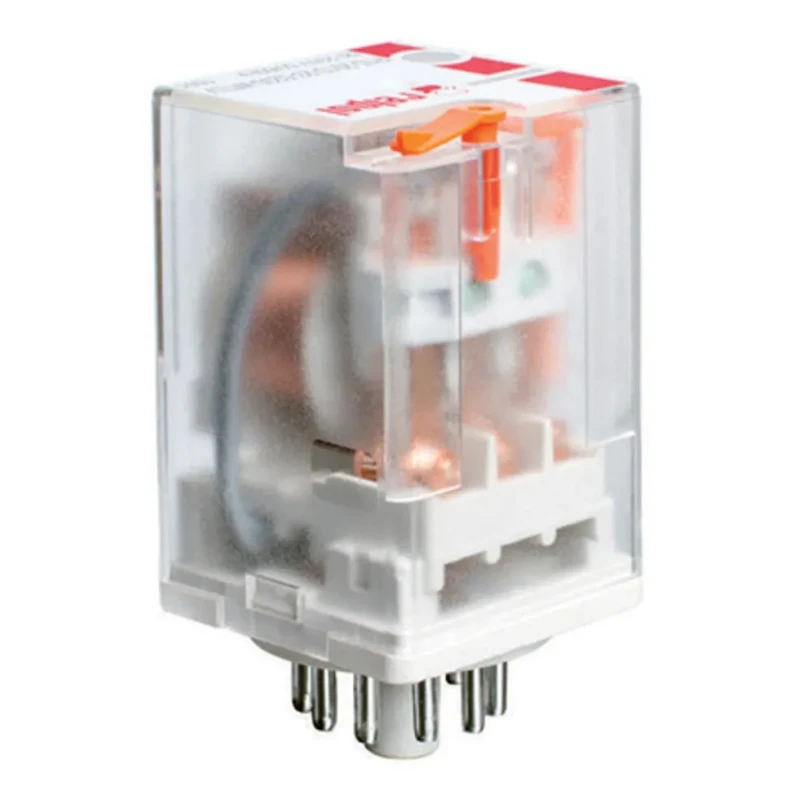

Relpol Power Relay 110V AC Coil 10A Switching Current DPDT R15-2012-23-5110-WTL
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Relpol |
| Height | 54.4mm |
| Length | 35mm |
| Model | R15-2012-23-5110-WTL |
| Width | 35mm |
| Contact Material | Silver Alloy |
| Series | R15 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CE, EAC |
| Coil Voltage | 110V ac |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 440V |
| Coil Power | 2.8W |
Key Features
- The relay supports a switching current of 10A for reliable circuit control.
- Equipped with plug-in terminals for easy installation and maintenance.
- Offers a switching AC voltage rating up to 440V and DC voltage up to 24V.
- Operates efficiently within a temperature range from -40°C to 55°C.
- Constructed with silver alloy contacts ensuring low contact resistance of 100mΩ.
- Compact miniature industrial design measuring 35mm width and length, and 54.4mm height.
- Coil power consumption is low at 2.8W, optimizing energy usage.
- Complies with CE and EAC standards for quality and safety assurance.
Product Description
Relpol R15-2012-23-5110-WTL is a miniature industrial power relay designed for use in electrical automation, industrial machinery, and control systems. Featuring a coil voltage of 110V AC and a double pole double throw (DPDT) contact configuration, this relay offers versatile switching capabilities ideal for controlling multiple circuits simultaneously.
The relay supports a switching current of 10A and can handle AC voltages up to 440V, with DC switching up to 24V, making it suitable for various industrial voltage levels. It is designed for plug-in installation with WT features standard, including a mechanical indicator and a lockable front test button for safe operation and easy testing.
Constructed with silver alloy contacts, the relay ensures minimal contact resistance of 100 milliohms, enhancing electrical performance and longevity. It operates reliably in harsh environments, tolerating temperatures from -40°C to 55°C. The compact dimensions (35mm length, 35mm width, and 54.4mm height) allow integration into space-constrained control panels.
With a coil power of only 2.8 watts, the relay provides efficient operation with reduced energy consumption. Compliance with CE and EAC standards assures its quality and functionality in various industrial and commercial applications.
The relay is ideal for automation systems, electrical panels, manufacturing equipment, and HVAC controls. Its plug-in terminal and standard mounting accessories simplify replacement and installation procedures. DesignSpark software resources enable easy integration into PCB and 3D mechanical designs.
The relay is cadmium-free and RoHS compliant, supporting environmental safety requirements. This Relpol power relay is manufactured in Poland, reflecting high European industrial production standards. Explore further Power Relay options and accessories in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of 10A, allowing for reliable circuit control.
This model operates with a coil voltage of 110V AC.
The relay measures 35mm in length, 35mm in width, and 54.4mm in height.
It can handle AC voltages up to 440V.
It features a double pole double throw (DPDT) contact configuration.
The relay operates efficiently within a temperature range from -40°C to 55°C.
The coil power consumption is low at 2.8W, optimizing energy usage.
The contacts are constructed with silver alloy, ensuring low contact resistance.
It complies with CE and EAC standards for quality and safety assurance.
It features plug-in terminals for easy installation and maintenance.
The relay has a contact resistance of 100 milliohms (100mΩ).
This model is manufactured in Poland, reflecting high European industrial production standards.
