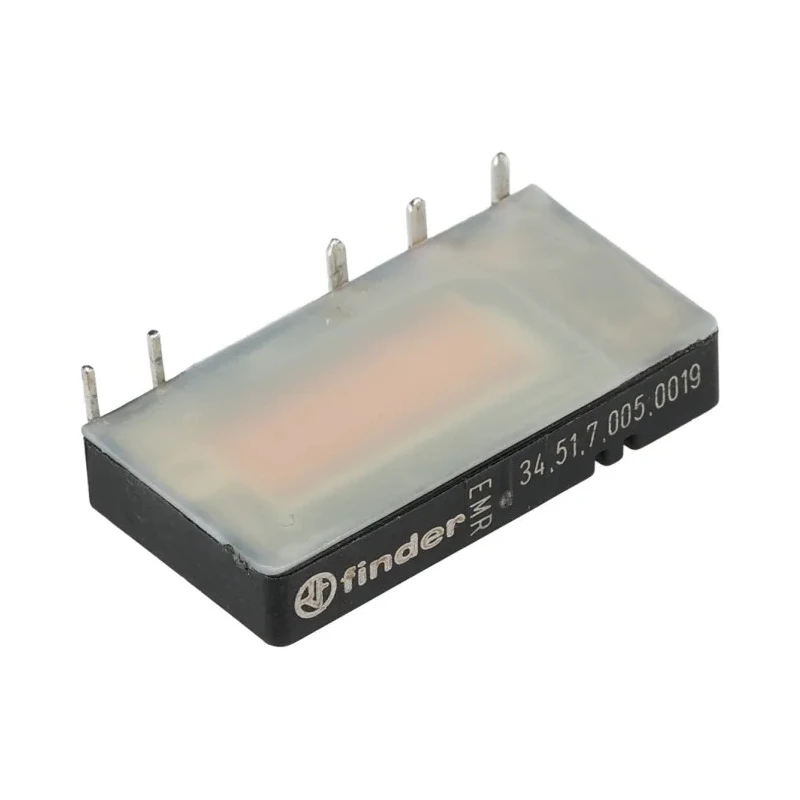

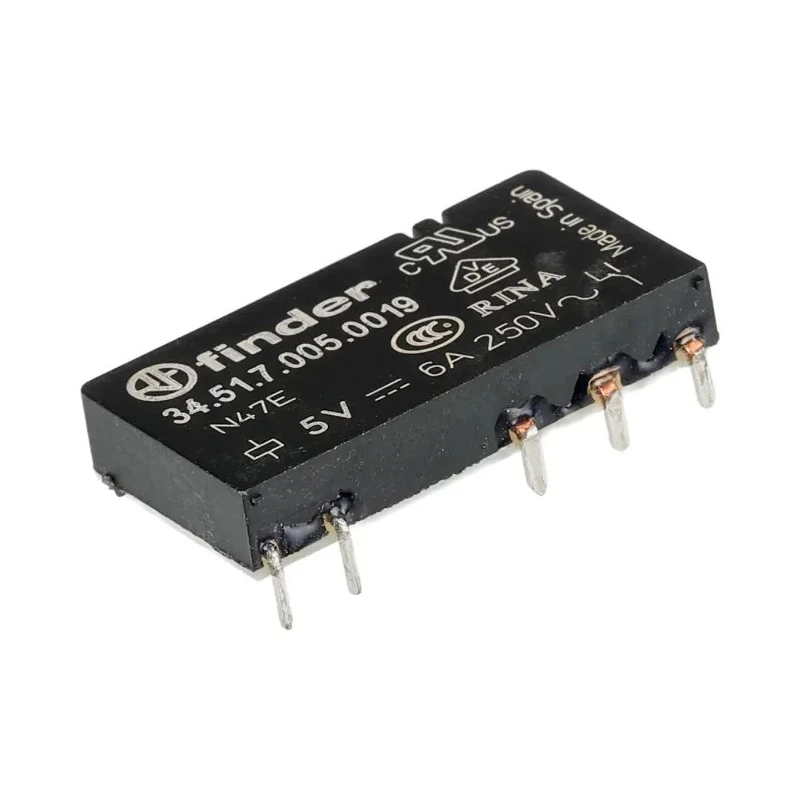

Finder PCB Power Relay 5V DC Coil 6A Switching Current SPDT 34.51.7.005.0019
Specifications
| Country of Origin | India |
|---|---|
| Brand | Finder |
| Height | 15mm |
| Length | 28mm |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 34 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | UL, CE, EAC |
| Coil Resistance | 130Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 170mW |
Key Features
- Operates with low power consumption of 170mW to enhance energy efficiency.
- Supports switching capacities of up to 1.5kVA for versatile loads.
- Compact dimensions of 28mm length, 5mm width, and 15mm height enable easy PCB mounting.
- High voltage isolation of 6kV ensures safe operation in electrical systems.
- Constructed with durable silver alloy contact material to ensure long-lasting performance.
- Designed for through-hole mounting and solder terminal connection for secure integration.
- Wide operating temperature range from -40°C to +85°C suits various environments.
- Excellent mechanical life rated at up to 10 million cycles for longevity.
Product Description
Finder 34.51.7.005.0019 PCB Power Relay features a 5V DC coil voltage and a switching current capacity of 6A with a single pole double throw (SPDT) contact configuration. This compact power relay, measuring 28mm in length, 5mm in width, and 15mm in height, is designed specifically for PCB mounting via through-hole solder terminals.
Its coil power consumption is low at 170mW, enhancing overall energy efficiency in control circuits. The relay supports switching voltages of up to 250V AC and 60V DC, with a maximum switching power of 1.5kVA. High voltage isolation of 6kV protects sensitive components and ensures safe electrical operation.
Constructed from a silver alloy contact material, the relay guarantees durability and excellent electrical conductivity. It is rated to operate efficiently within a temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
This power relay is commonly used in diverse industrial applications, including bottling and packaging machinery, labelling machines, industrial burners, programmable controllers, lighting and timer controls, and remote lighting systems for roads and tunnels. Its robust mechanical life of up to 10 million cycles offers reliable performance over extended periods.
Low power coil consumption of 170mW enhances energy efficiency. Switching capacity up to 1.5kVA supports varied industrial loads. Compact PCB mount design simplifies circuit integration. High 6kV voltage isolation ensures operator and equipment safety.
Durable silver alloy contact material for reliable conductivity. Through-hole solder mounting for secure and stable installation. Wide temperature range from -40°C to +85°C suits varied conditions. Long mechanical life rated up to 10 million cycles.
Suitable for automation, lighting control, and electronic boards.
Ideal for industrial, electrical automation, manufacturing, and laboratory uses, this finder Power Relay combines efficiency, reliability, and versatility for demanding control system requirements. Explore more electrical and relay products at EnvMart for advanced industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current capacity of 6A.
The relay measures 28mm in length, 5mm in width, and 15mm in height.
The coil voltage for this relay is 5V DC.
It features a single pole double throw (SPDT) contact configuration.
The maximum switching voltage is 250V AC and 60V DC.
The coil power consumption is low at 170mW, enhancing energy efficiency.
It has a mechanical life rated at up to 10 million cycles.
This model operates efficiently within a temperature range of -40°C to 85°C.
The contacts are constructed from durable silver alloy material.
It is designed for through-hole mounting with solder terminals for secure integration.
This relay is compliant with UL, CE, and EAC standards.
It is commonly used in industrial applications such as bottling and packaging machinery, lighting controls, and programmable controllers.
