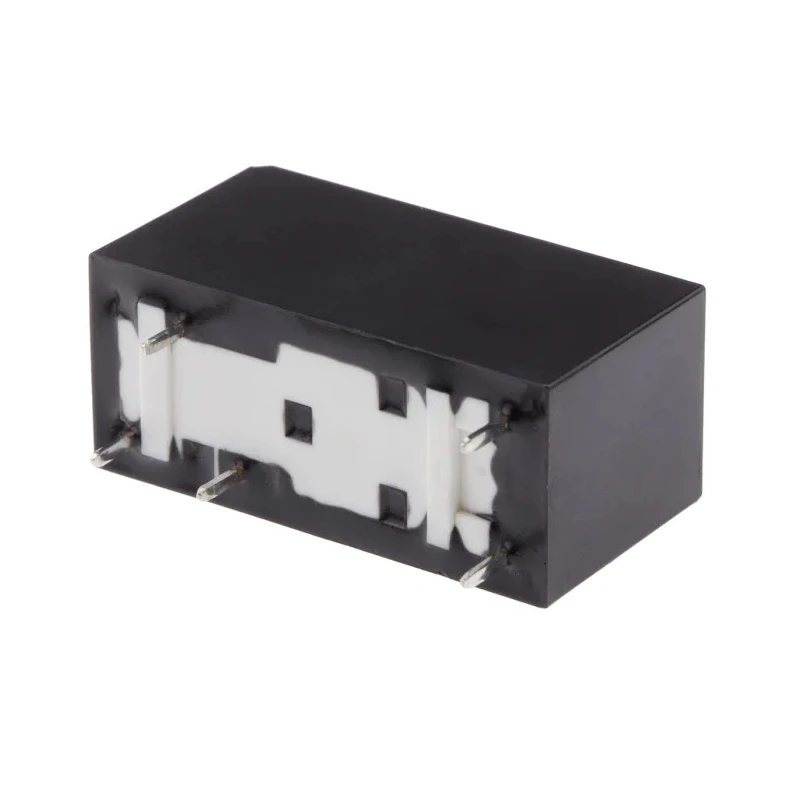

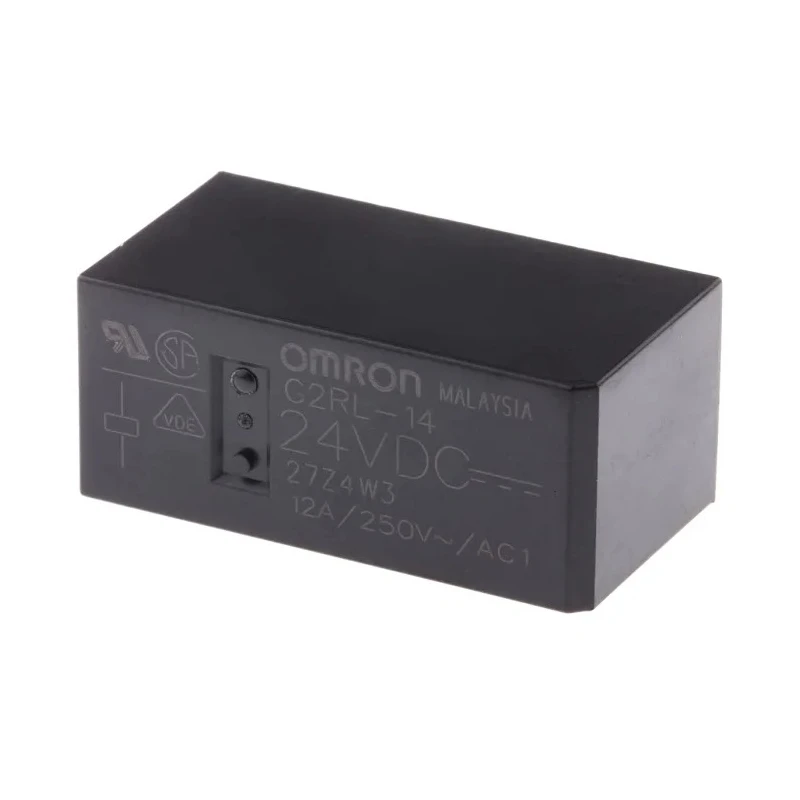

Omron PCB Power Relay 24V DC Coil 12A Switching Current SPDT G2RL-14 DC24

Omron G2RL-14 DC24 PCB Power Relay is a high-performance relay designed for industrial, automation, and electrical applications requiring reliable switching with a 24V DC coil and SPDT contact configuration.

This relay is particularly suitable for printed circuit board (PCB) mounting due to its compact dimensions measuring 29mm in length, 15.7mm in height, and 12.7mm in width, enabling efficient use of space.

It offers a significant switching current capability of 12A and a switching AC voltage rating of up to 250V AC, making it ideal for controlling medium to high power electrical loads safely.

The coil requires a voltage of 24V DC with a resistance of 1.4kΩ and consumes just 400mW power during operation, ensuring energy efficiency. Engineered to operate in harsh environments, the relay supports a temperature range from -40°C to 85°C, offering dependable performance under diverse conditions.

Silver alloy contacts guarantee excellent electrical conductivity and long service life, while tracking resistance with CTI greater than 250 enhances safety and reliability. Compliant with major industry standards including CSA, EN, IEC, RoHS, UL, and VDE, this relay adheres to stringent quality and safety criteria.

This product is suitable for use in industrial control systems, automation machinery, HVAC equipment, manufacturing processes, and other commercial electrical applications requiring robust and compact power relays.

The relay features a 24V DC coil voltage suitable for PCB mounting. Single Pole Double Throw (SPDT) contact configuration supports versatile switching applications. Supports a maximum switching current of 12A for high load handling capability.

Compact form factor with dimensions 29mm length, 15.7mm height, and 12.7mm width for space-efficient integration. Coil resistance of 1.4kΩ and coil power consumption of 400mW ensure low energy use. Operates reliably across a wide temperature range from -40°C to 85°C.

Silver alloy contact material provides excellent conductivity and durability. Switching AC voltage rating of 250V AC enables robust electrical isolation. Meets multiple industrial standards including CSA, EN, IEC, RoHS, UL, and VDE certifications.

Features tracking resistance with Comparative Tracking Index (CTI) greater than 250. Explore more Power Relays and electronic components in the Electronics & Electricals category at EnvMart for efficient industrial automation and electrical control solutions.
