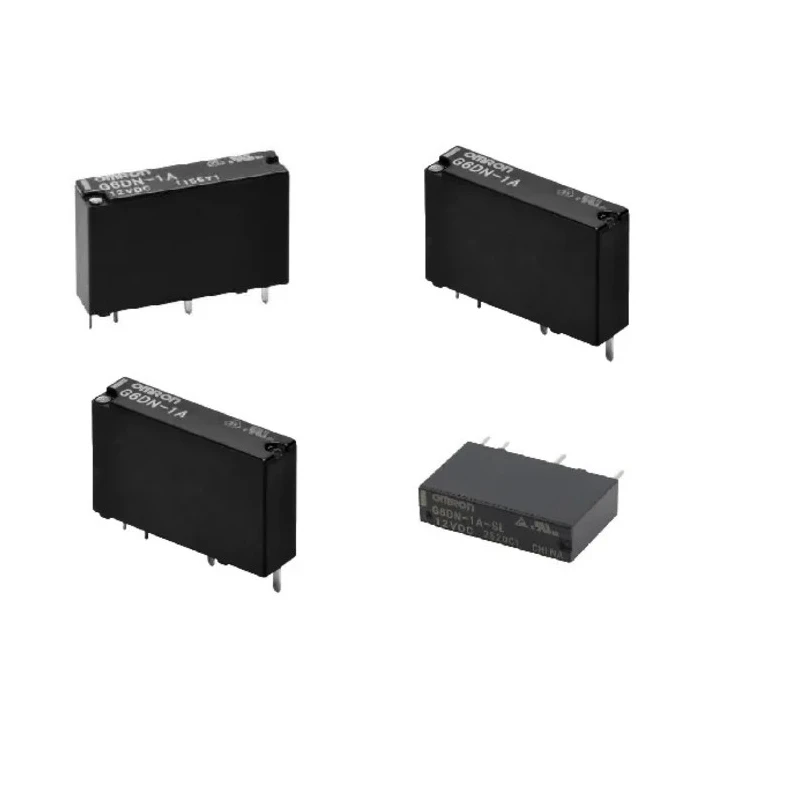

Omron PCB Power Relay 5V DC Coil 5A Switching Current SPST Screw Terminal G6DN-1A-SL DC5

Omron G6DN-1A-SL DC5 PCB Power Relay features a 5V DC coil designed for efficient electronic switching with a 5 ampere switching current capacity. This relay utilizes a Single Pole Single Throw (SPST) contact configuration suitable for a wide range of control and automation tasks in industrial, electrical, and electronic applications.

The relay's screw terminal mount ensures firm and reliable PCB installation, supporting durability and ease of replacement. Its compact form factor with dimensions measuring 50mm length, 10mm width, and 15mm height enables integration into densely packed circuits.

Operating over a temperature range from -40°C to 70°C, the relay performs reliably in various industrial and commercial environments. The contact is made from silver alloy ensuring low contact resistance, measured at 100mΩ, which guarantees consistent electrical performance.

The coil operates efficiently at 5V DC with a coil resistance of 227 ohms and power consumption of 110mW, ideal for low power applications. The relay supports switching voltages of up to 60V DC and 240V AC, providing flexibility across AC and DC circuits.

5V DC coil voltage with 110mW power consumption. SPST contact configuration for simple switch control. Screw terminal mounting type for PCB integration. Switching current rated at 5 amperes for moderate load handling. Operating temperature range from -40°C to 70°C.

Compact size with length 50mm, width 10mm, height 15mm. Silver alloy contact material ensures durability and conductivity. Low contact resistance of 100mΩ for reliable electrical connection. Coil resistance of 227Ω and coil current about 22mA.

RoHS compliant, ensuring environmental safety standards.

This Omron power relay is well-suited for applications in industrial automation, electrical control systems, HVAC controls, manufacturing equipment, and other commercial electronic devices requiring reliable and efficient relay switching solutions.
