Omron Power Relay PCB Mount 24V DC Coil 10A Switching Current G5LE-14 DC24

Free Delivery in India | Lowest Global Shipping Charges

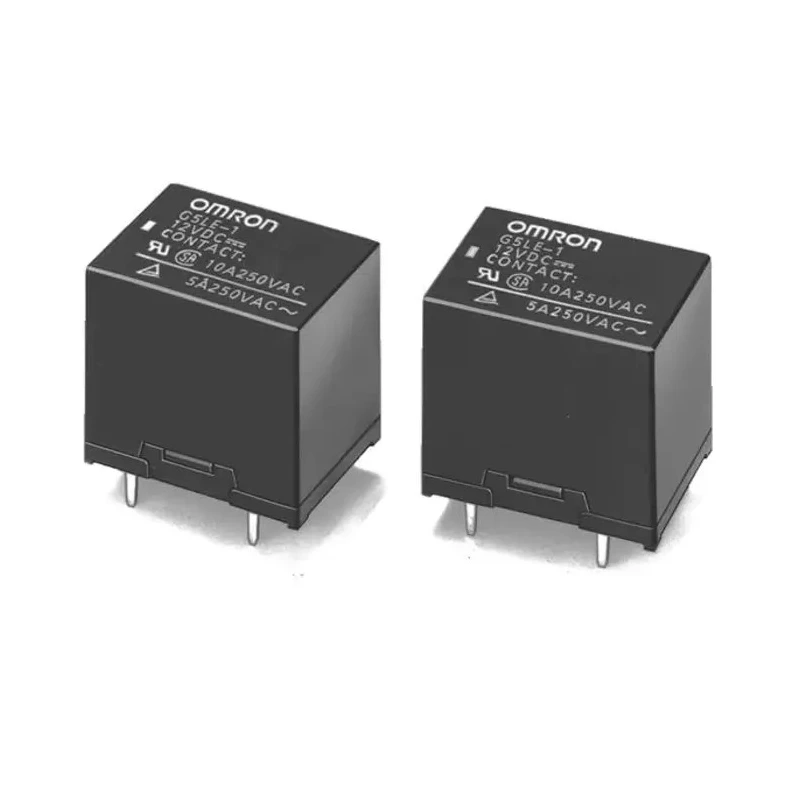

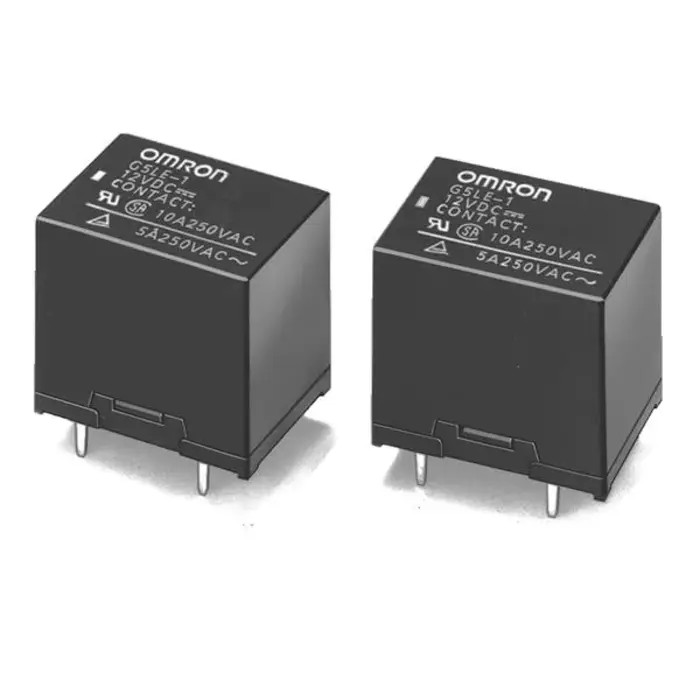

Omron Power Relay PCB Mount 24V DC Coil 10A Switching Current G5LE-14 DC24

Name: Omron Power Relay PCB Mount 24V DC Coil 10A Switching Current G5LE-14 DC24
Brand: Omron
SKU: 426839
Price: 2.65 USD
Availability: InStock



Category Power Relay Brand Omron Condition New

Specifications

Country of Origin	Malaysia
Brand	Omron
Height	19mm
Length	22.5mm
Model	G5LE-14 DC24
Width	16.5mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	G5LE
Maximum Operating Temperature	85°C
Contact Configuration	1 NO
Minimum Operating Temperature	-25°C
Switching Current	10A
Terminal type	PCB Pin
Contact Resistance	100mΩ
Standards/Approvals	CSA, EN, UL
Coil Resistance	1.4kΩ
Coil Voltage	24V dc
Switching DC Voltage	30V dc
Switching AC Voltage	250V ac
Coil Power	400mW

Key Features

Coil voltage rating of 24V DC to support power-efficient operation.
Single pole single throw normally open (1 NO) contact arrangement.
Switching current capability of 10 amperes suitable for moderate load switching.
Compact design with length 22.5mm, width 16.5mm, and height 19mm.
Constructed with silver alloy contact material for reliable conductivity.
Operating temperature range from -25°C to 85°C for wide environmental tolerance.
Low coil power consumption rated at 400mW improves energy efficiency.
Coil resistance of 1.4 kiloohms for proper coil activation.

Product Description

Omron G5LE-14 DC24 power relay is a robust PCB mount relay designed for electrical and automation applications requiring reliable switching performance and moderate current handling. The relay operates on a 24V DC coil voltage delivering a switching current of 10 amperes through a single normally open (1 NO) contact configuration. Its compact cubic form factor with dimensions of 22.5mm length, 16.5mm width, and 19mm height makes it ideal for space-constrained PCBs and assembly designs.

The contacts are plated with silver alloy material to ensure excellent conductivity and durability during operation. The relay's coil resistance stands at 1.4kΩ with a coil power consumption of only 400mW, making it energy efficient. Operating temperature ranges from -25°C up to 85°C enable usage in varying environmental conditions typical in industrial, laboratory, manufacturing, HVAC, and commercial appliances.

This relay conforms to several international standards including CSA, EN, and UL certifications, underscoring reliability and safety in demanding electrical applications. The switching power capacity is 1.2kVA with switching AC voltage rated at 250V and DC switching voltage up to 30V, allowing flexible integration into various circuits and loads.

The product is manufactured in Malaysia, assuring consistent production quality. The Omron G5LE series is commonly used in home appliances, office automation equipment, vending machines, HVAC controls, and other industrial control systems requiring robust relay switching.

Coil Voltage: 24V DC for efficient control. Contact Configuration: Single Normally Open (1 NO) for simple circuit control. Switching Current: 10A supporting moderate loads. Compact Size with Length 22.5mm, Width 16.5mm, Height 19mm.

Silver Alloy Contacts for high conductivity. Operating Temperature Range: -25°C to 85°C. Low Coil Power: 400mW reduces energy consumption. Compliance to CSA, EN, UL standards for safety. Manufactured in Malaysia ensuring quality.
