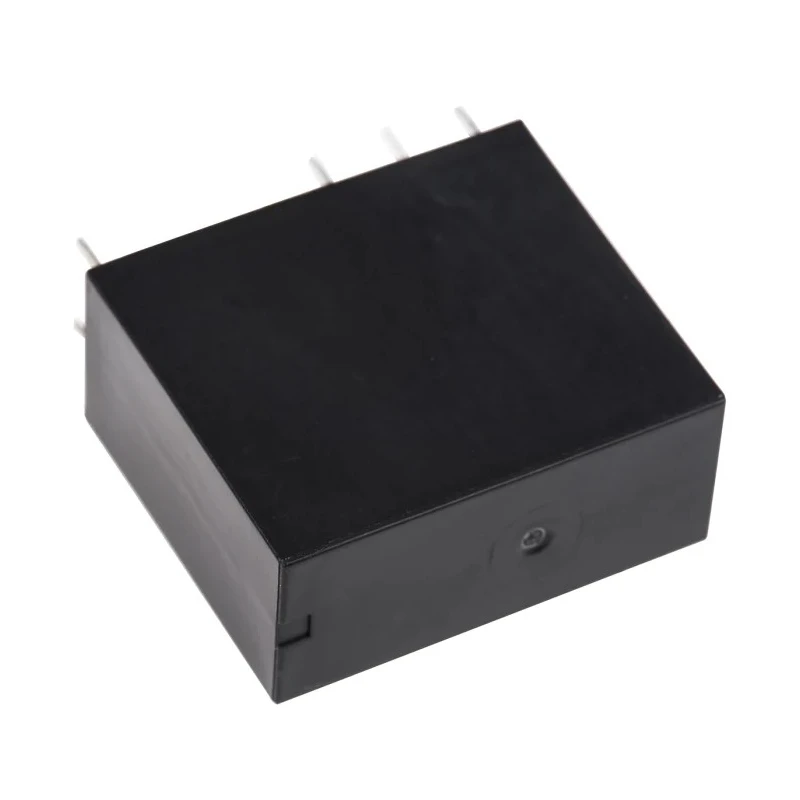

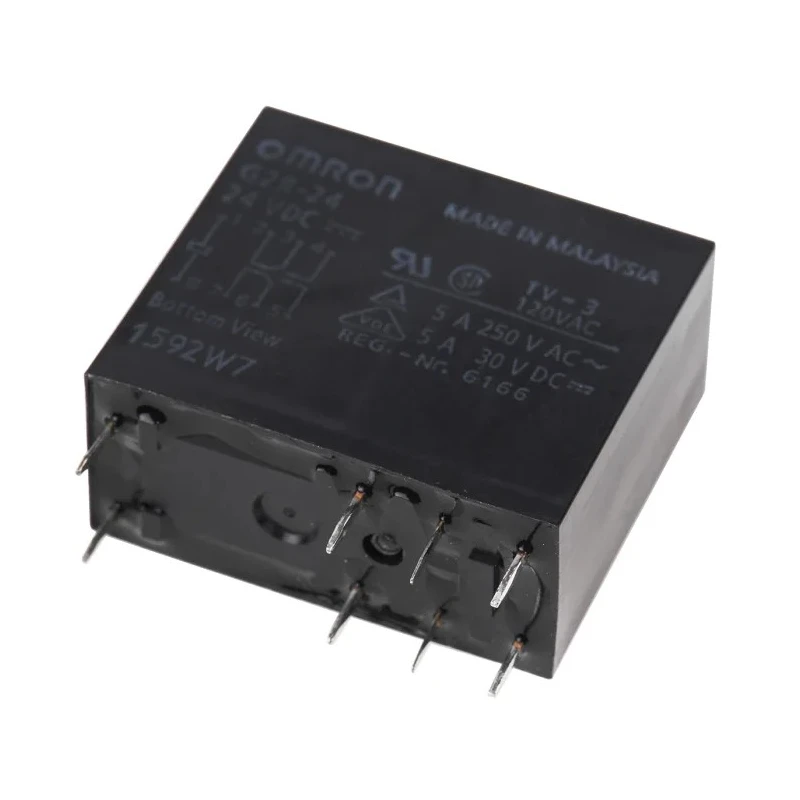

Omron PCB Power Relay 24V DC Coil 4A Switching Current DPDT G2R-24 DC24

Free Delivery in India | Lowest Global Shipping Charges

Omron PCB Power Relay 24V DC Coil 4A Switching Current DPDT G2R-24 DC24

Name: Omron PCB Power Relay 24V DC Coil 4A Switching Current DPDT G2R-24 DC24
Brand: Omron
SKU: 427041
Price: 8.92 USD
Availability: InStock



Category Power Relay Brand Omron Condition New

Specifications

Country of Origin	Indonesia
Brand	Omron
Height	25.5mm
Length	29mm
Model	G2R-24 DC24
Width	13.5mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	G2R
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	4A
Terminal type	Solder
Standards/Approvals	CSA, RoHS, UL, VDE
Coil Resistance	1.1kΩ
Coil Voltage	24V dc
Switching DC Voltage	125V dc
Switching AC Voltage	380V ac
Coil Power	0.53W
Omron PCB Non-Latching Relay, 24V dc Coil, 3A Switching Current, DPDTBrand	Omron

Key Features

General purpose relay suitable for domestic and commercial use.
Coil voltage of 24V DC with 0.53W coil power consumption.
Double Pole Double Throw (DPDT) contact configuration provides flexible switching.
Silver alloy contact material ensures reliable conductivity.
Switching current rating of 4A with switching voltages up to 125V DC and 380V AC.
Compact PCB mount type with solder terminals for easy installation.
Operating temperature range from -40°C to 70°C enables use in various environments.
Complies with CSA, RoHS, UL, and VDE standards for safety and quality assurance.

Product Description

Omron G2R-24 DC24 PCB Power Relay is designed for reliable switching in a wide range of industrial and commercial electrical applications. Featuring a 24V DC coil and a switching current capacity of 4A, this relay offers a dependable DPDT (Double Pole Double Throw) contact configuration that supports multiple circuit control options.

Its compact form factor of 25.5mm height, 13.5mm width, and 29mm length allows easy mounting on printed circuit boards with solder terminals, making it ideal for automated and manual assembly processes. The relay’s silver alloy contacts enhance conductivity and durability, ensuring efficient signal transmission and long operational life.

The coil resistance of approximately 1.1kΩ and coil power consumption of 0.53W optimize energy use while providing stable switching performance. The relay operates reliably over a broad temperature range from -40°C to +70°C, suitable for various environmental conditions found in HVAC systems, manufacturing equipment, power supplies, and control panels.

Omron’s G2R series meets international standards including CSA, RoHS, UL, and VDE, ensuring product safety and compliance across global markets. This general-purpose PCB power relay is widely used in automation, electrical control, and signal conditioning applications where robustness and precise switching are critical.

General purpose PCB power relay for domestic and commercial applications. Compact PCB mount design with solder terminals for secure installation. Supports 24V DC coil voltage with low power consumption of 0.53W. DPDT contact configuration for versatile circuit control.

Silver alloy contacts deliver high conductivity and long life. Switching current rated at 4A for reliable operation. Switching voltage capacity up to 125V DC and 380V AC. Operates within a temperature range of -40°C to 70°C.

Conforms to CSA, RoHS, UL, and VDE safety and quality standards. Explore the comprehensive range of Power Relays and components available through EnvMart for your industrial automation and electrical control needs.
