Omron PCB Power Relay 12V DC Coil 8A Switching Current DPDT G2RL-24-CF DC12

Free Delivery in India | Lowest Global Shipping Charges

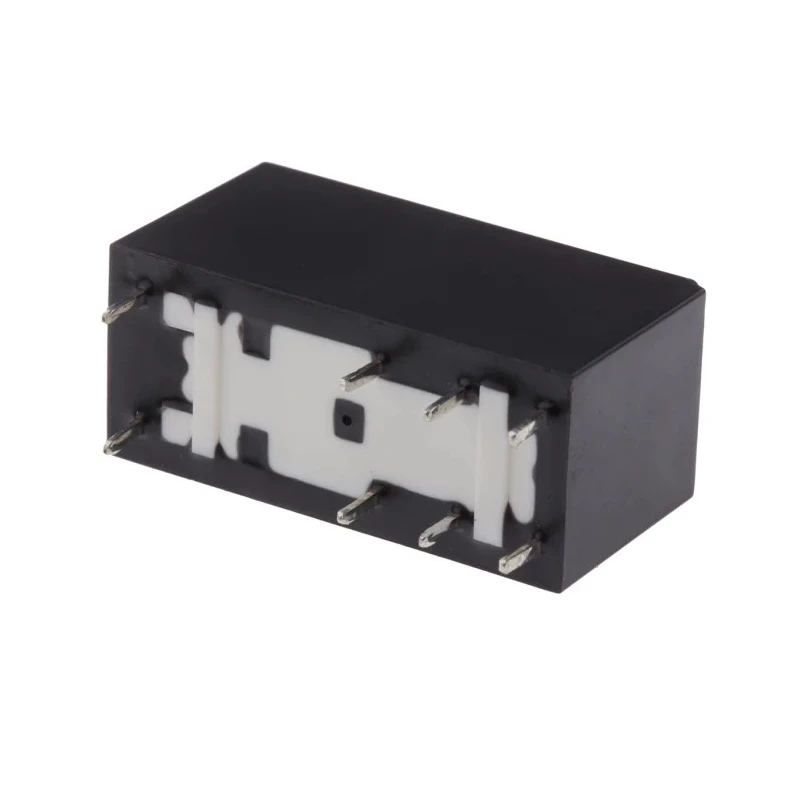

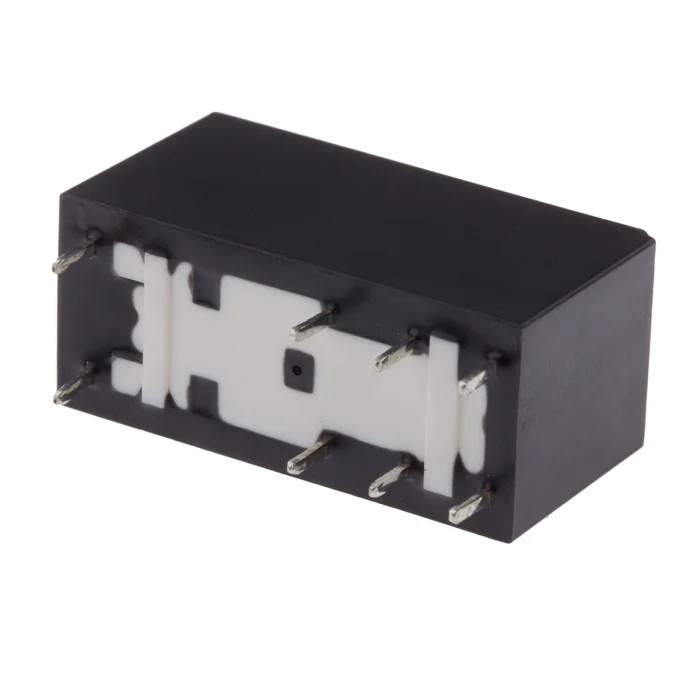

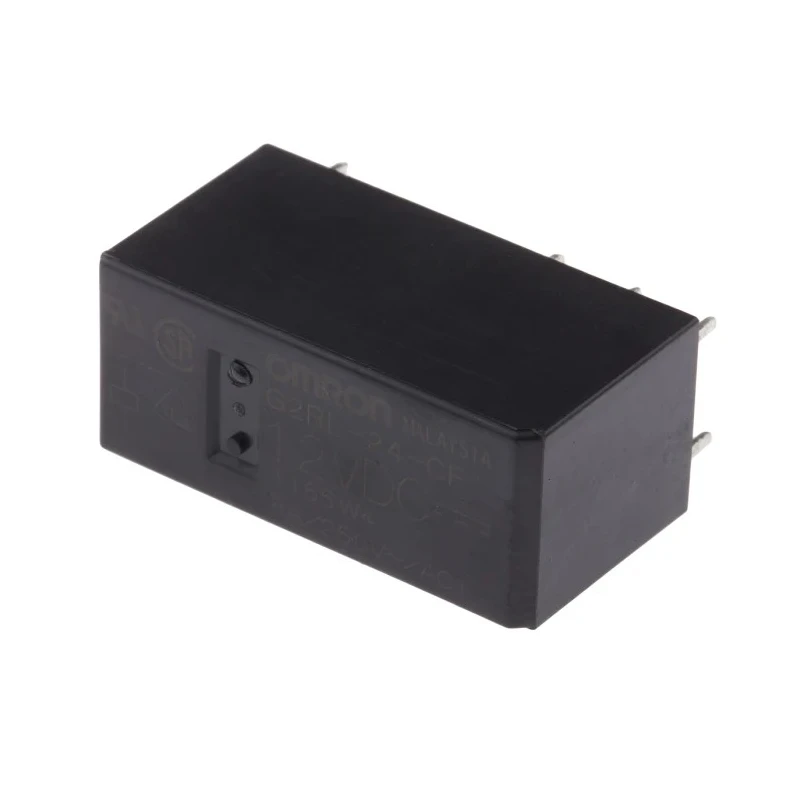

Omron PCB Power Relay 12V DC Coil 8A Switching Current DPDT G2RL-24-CF DC12

Name: Omron PCB Power Relay 12V DC Coil 8A Switching Current DPDT G2RL-24-CF DC12
Brand: Omron
SKU: 427047
Price: 8.92 USD
Availability: InStock



Category Power Relay Brand Omron Condition New

Specifications

Country of Origin	Malaysia
Brand	Omron
Height	15.7mm
Length	29mm
Model	G2RL-24-CF DC12
Width	12.7mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	G2RL
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	8A
Terminal type	Through Hole
Standards/Approvals	RoHS, UL, VDE, CSA, EN, IEC
Coil Resistance	360Ω
Coil Voltage	12V dc
Switching AC Voltage	250V ac

Key Features

This relay is designed for PCB mounting with through-hole terminals.
It belongs to the G2RL series known for low profile and reliable performance.
Operates effectively in a temperature range from -40°C to 85°C.
Switching AC voltage is rated up to 250V AC with a coil resistance of 360Ω.
Constructed with silver alloy contact material for durability and optimal conductivity.
Meets standards and approvals including RoHS, UL, VDE, CSA, EN, and IEC for international compliance.
Tracking resistance rating CTI>250 ensures high electrical insulation quality.
Features a 12V DC coil voltage with an 8A switching current in a DPDT contact configuration.

Product Description

Omron G2RL-24-CF DC12 PCB Power Relay is a versatile and reliable component designed for electrical and automation applications where compact and efficient switching is required.

Featuring a 12V DC coil voltage and supporting an 8A switching current, this relay utilizes a double-pole double-throw (DPDT) contact configuration, making it suitable for controlling multiple circuits on electronic PCBs with precision and reliability.

The G2RL series offers a low profile design with dimensions measuring 15.7mm in height, 12.7mm in width, and 29mm in length, facilitating seamless integration into various printed circuit board layouts. The through-hole terminal type simplifies soldering and mechanical stability.

Operating temperature tolerance ranges from -40°C to 85°C, supporting functionality in diverse industrial environments. The relay also supports a switching AC voltage of up to 250V AC, with coil resistance rated at 360 ohms, ensuring power efficiency and safety during operation.

Manufactured with silver alloy contacts, this relay provides superior conductivity and corrosion resistance, enhancing the longevity of switching operations. It meets multiple international standards including RoHS, UL, VDE, CSA, EN, and IEC certifications, guaranteeing compliance with stringent safety and environmental requirements.

The product’s tracking resistance (CTI>250) further confirms its suitability for demanding electrical insulation needs. PCB mounting design with through-hole terminals for secure connection. Reliable double-pole double-throw contact system for versatile switching.

Certified compliance with key international standards to assure safety and quality. Ideal for electrical automation, industrial machinery controls, and circuit protection applications.

This Omron power relay is manufactured in Malaysia and represents a durable choice for engineers and technicians seeking dependable PCB relay components for power control and signal conditioning tasks.
