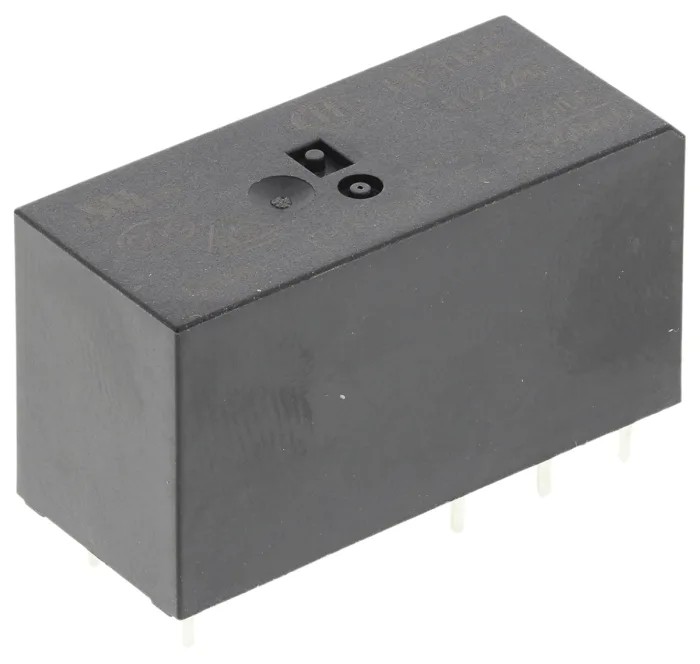

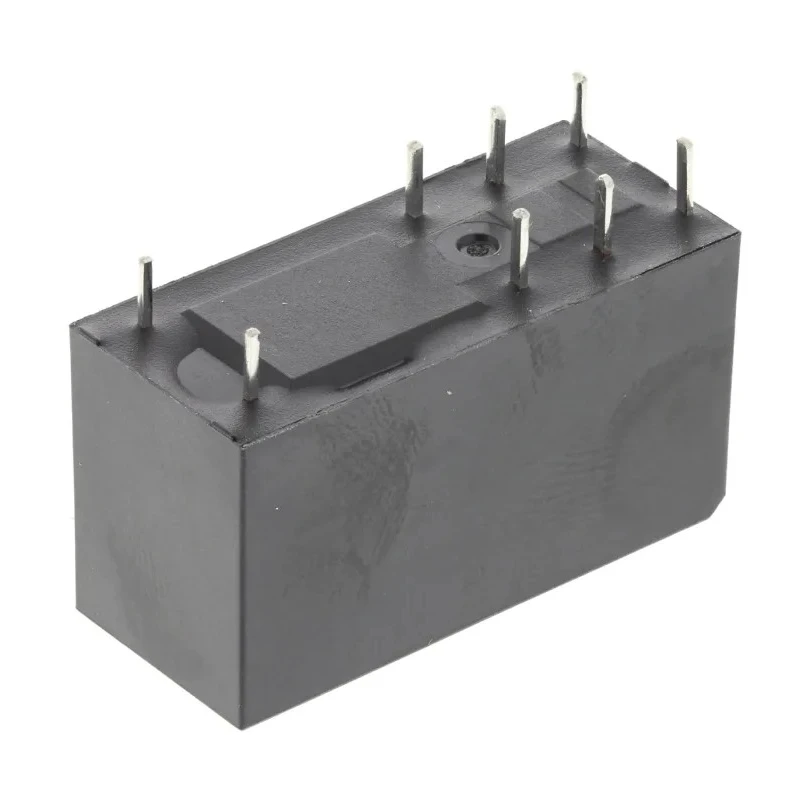

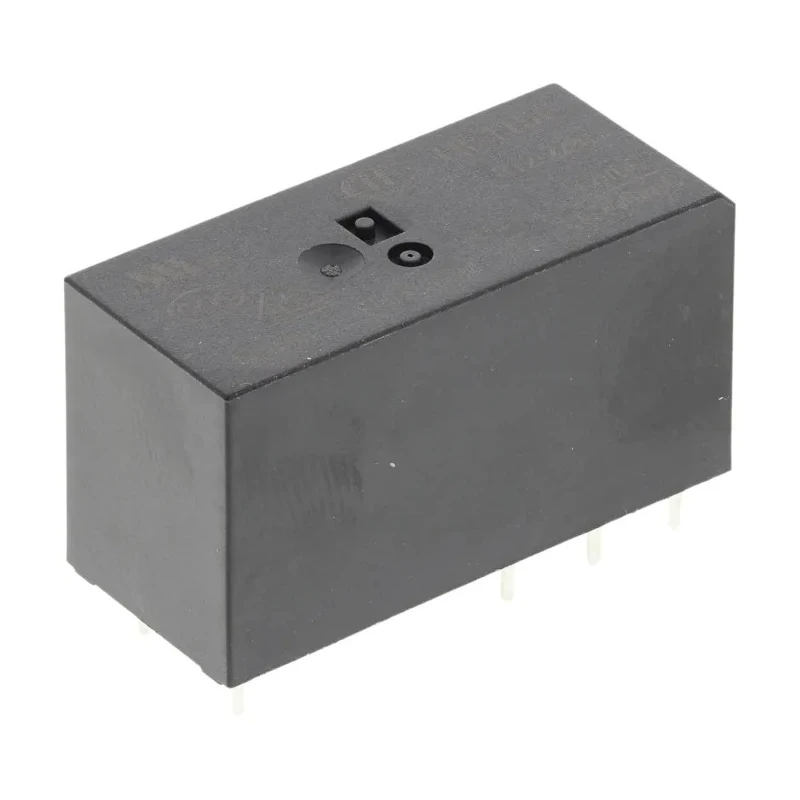

RS PRO PCB Power Relay, 12V DC Coil, 8A Switching Current, DPDT 800-4441

RS PRO 800-4441 PCB Power Relay is engineered for industrial and electronic applications requiring reliable switching with a coil voltage of 12V DC and an 8A switching current capability. This DPDT (Double Pole Double Throw) relay is ideal for PCB mounting and is designed to handle demanding electrical loads with a switching power of up to 3kVA.

Its silver alloy contacts provide excellent conductivity with a minimal contact resistance of 100 mΩ, ensuring efficient operation. The relay supports switching voltages of up to 440 V AC and 300 V DC, making it suitable for both AC and DC power control circuits.

Operating over a broad temperature range from -40°C to +85°C, this relay is built for durability and performance in harsh environments. With a coil resistance of 360 Ω and a coil power of 400 mW, it optimizes power consumption for efficient circuit control. The compact design with dimensions of 29 mm in length, 15.7 mm height, and 12.7 mm width supports space-saving PCB mounting with solder terminals for easy integration.

Its long mechanical and electrical life - 100 million mechanical operations and 100,000 electrical operations - provides lasting reliability for industrial, laboratory, control systems, automation, manufacturing, and electronic product design sectors. Certified by CQC and UR standards, it meets recognized compliance requirements for product safety and performance.

This relay suits applications requiring miniature power relay switching with DPDT contact arrangement. Non-latching design makes it ideal for push-button and momentary switch applications like micro-controller inputs and keyboards.

Flux proof design enhances reliability in electrically noisy conditions. Isolation between coil and contacts up to 5 kV AC adds protection for control circuits. Reliable solder terminal connections enable solid and stable PCB mounting.

Choose RS PRO 800-4441 for quality, industry-standard Power Relay solutions in electronics and automation. Explore similar high-performance relays and components in the Electronics & Electricals category at EnvMart to complete your project requirements.
