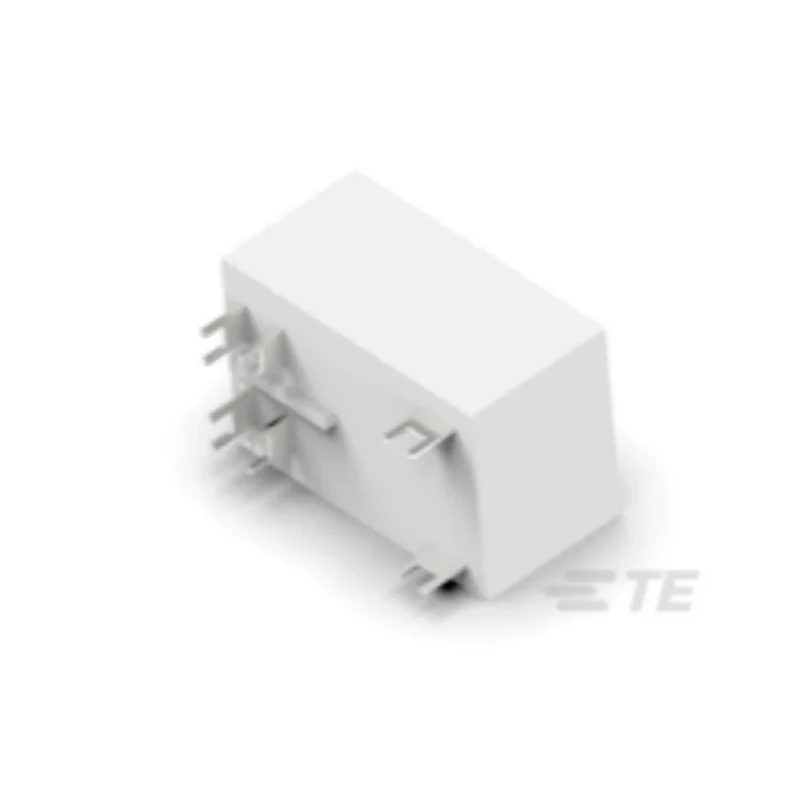

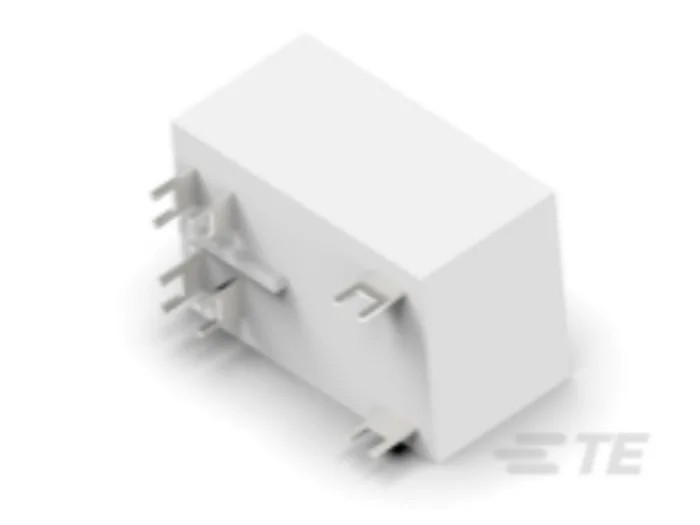

TE Connectivity PCB Power Relay 12V DC Coil 50A Switching Current DPST 6-1423008-6

TE Connectivity model 6-1423008-6 is a high-quality PCB Power Relay featuring a 12V DC coil voltage and a maximum switching current of 50A in a DPST contact configuration. This standard type, monostable relay is designed for durable and reliable power switching in electronics and industrial automation applications.

The relay’s coil resistance is precisely 86 Ohms with a coil power consumption of 1.7W, providing efficient control while maintaining low energy usage. It is specifically designed for PCB mounting with PCB pin terminals, facilitating straightforward integration into circuit boards.

With a switching AC voltage rating of up to 277V AC, the relay is suitable for managing substantial electrical loads. The operating temperature range from -55°C to 85°C ensures reliable performance in diverse environmental conditions, making it ideal for industrial, laboratory, manufacturing, and electrical control systems.

The device incorporates silver alloy contact material enhancing conductivity and durability. A plastic dust cover enclosure protects the internal components from dust and other contaminants, increasing longevity in harsh environments.

Compact physical dimensions of 52.3mm length, 34.5mm width, and 30.7mm height allow it to fit conveniently within tight PCB layouts. This relay complies with RoHS and IEC 61810 standards, ensuring safety and environmental responsibility for modern electronic applications.

Common use cases include automation systems, HVAC control, power management, industrial equipment, and signal conditioning circuits. This product provides dependable switching performance and durability required in critical and demanding electronics systems.

Choose this TE Connectivity PCB Power Relay for robust power control with precise electrical characteristics and industrial-grade construction. The relay features a coil resistance of 86 Ohms ensuring stable coil performance.

It supports a switching AC voltage of up to 277V AC, suitable for demanding electrical circuits. The device includes a plastic dust cover enclosure for protection in industrial environments. Designed for PCB mounting with PCB pin terminals for easy integration.

Operating temperature ranges from -55°C to 85°C for durability in varied climates. Built with silver alloy contacts that provide excellent conductivity and durability. Compact dimensions of 52.3mm length, 34.5mm width, and 30.7mm height enable efficient space utilization.

The coil power rating of 1.7W allows for efficient energy consumption during operation. Complies with RoHS and IEC 61810 standards ensuring environmental and safety compliance. Manufactured in China with high-quality production standards.
