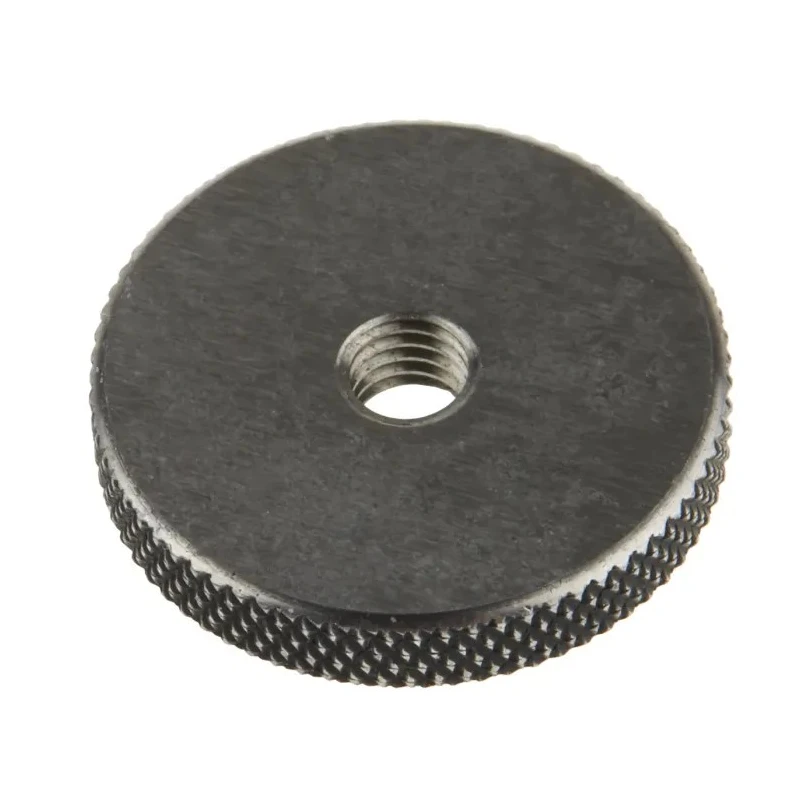

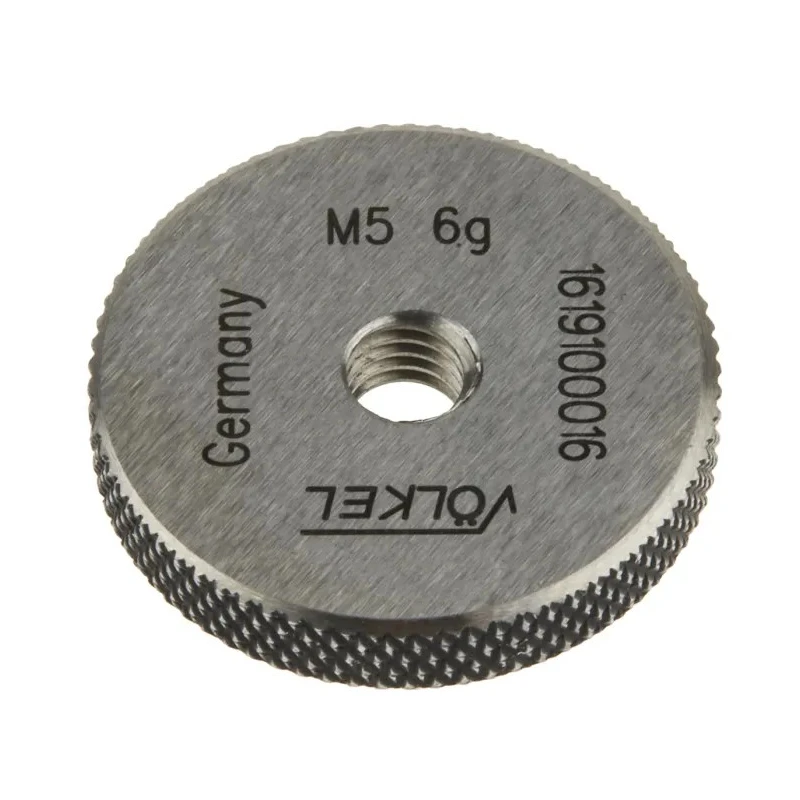

Volkel M5 x 0.8 Ring Ring Gauge, 0.8 mm Pitch Diameter 16191

Volkel 16191 Ring Ring Gauge M5 x 0.8 is a precision-engineered tapered ring gauge designed to verify threads with a pitch diameter of 0.8 mm according to metric standard. Manufactured from high-quality raw materials and calibrated using IAC thread scanners in a measurement laboratory, it ensures reliable and accurate thread inspection.

This ring gauge complies with DIN ISO 1502 standard and features a gauge tolerance of 6g, providing high durability and reliability in industrial and engineering quality control applications. The compact size and rugged construction make it suitable for use in a variety of industrial environments including manufacturing plants, engineering test facilities, and quality assurance labs.

The tool is intended to be used with a reference temperature of 20°C to maintain measurement consistency. It acts as a NO-GO gauge, which must not screw into the part by hand more than two threads, ensuring the quality and correctness of metric M5 x 0.8 threaded parts.

This ring ring gauge is essential equipment for industrial, manufacturing, and laboratory measurement tasks where precise thread verification is required. Its use facilitates compliance with international standards and helps maintain high quality in production processes.

Constructed from high-quality raw materials for durability and accuracy. Calibrated with IAC thread scanners for high precision. Features 6g tolerance as per DIN ISO 1502. Compact and rugged for easy use in industrial settings.

Specific for M5 x 0.8 thread size with 0.8 mm pitch diameter. Reference temperature of 20°C for accurate measurement. Prevents over-threading with NO-GO function limited to two threads. Suitable for manufacturing, laboratory, and engineering inspections.

Made in Germany ensuring premium quality and standards compliance. Explore more precision Gauges and measuring instruments in our Industrial Tools & Equipment category at EnvMart.
