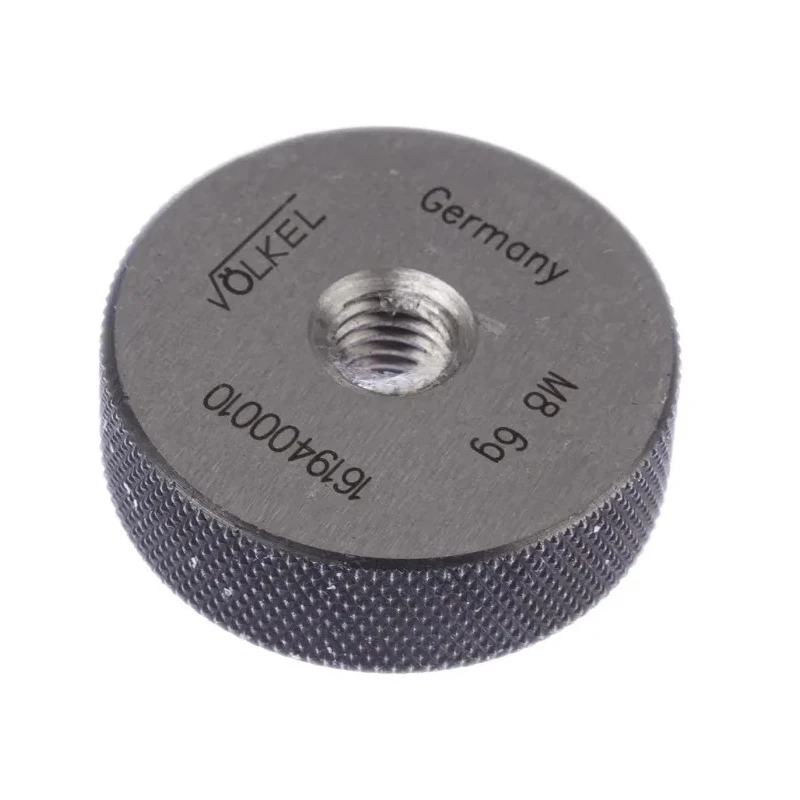

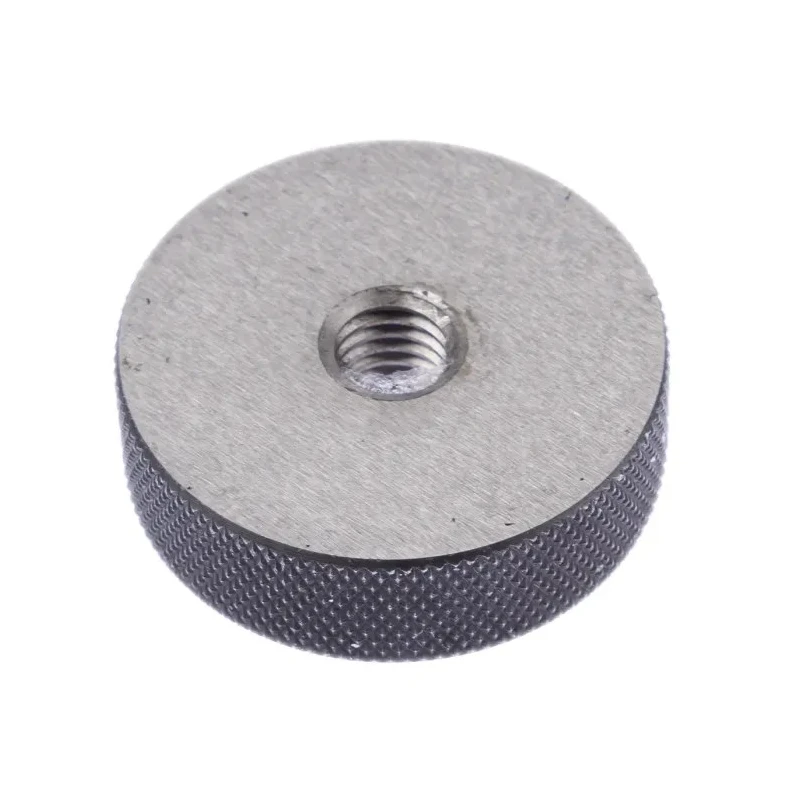

Volkel M8 x 1.25 Tapered Ring Ring Gauge, 1.25 mm Pitch Diameter 16194

Volkel 16194 is a precision tapered ring ring gauge designed for measuring M8 x 1.25 metric thread sizes with a pitch diameter of 1.25 mm. This ring gauge is manufactured from high-quality raw materials and calibrated using IAC thread scanners in an accredited measurement laboratory to ensure exceptional accuracy and repeatability.

The gauge is marked in red for the No-Go feature, restricting screw engagement to no more than two threads by hand, which prevents parts from exceeding tolerance limits during inspection. The standard reference temperature for both the gauge and parts is 20°C to maintain measurement precision.

Designed for robustness and ease of use, the compact ring gauge features a 6g tolerance according to DIN ISO 1502 standards, ensuring reliable metric thread inspection in industrial manufacturing, engineering, and quality control applications. This tool is essential for maintaining strict assembly and production standards.

Its rugged form and high durability make it suitable for frequent inspection tasks, facilitating quick, accurate acceptance or rejection of threaded components. The ring gauge is widely utilized in mechanical workshops, automotive, aerospace manufacturing, and other industrial sectors requiring precise thread measurement and control.

Constructed with high-quality materials for durability and consistent performance. Calibrated for accurate thread measurement using advanced thread scanning technology. Metric system gauge with a 6g tolerance for precise inspection.

Compact and rugged design suits industrial inspection environments. No-Go feature marked in red limits part engagement during testing. Maintains accuracy by referencing a 20°C standard measurement temperature. Certified to meet DIN ISO 1502 standards for thread gauges.

Ideal for use in industrial, manufacturing, engineering, and quality control settings. Explore EnvMart’s extensive range of precision Gauges for industrial applications and ensure your measurement tools meet the highest standards of accuracy and reliability.
