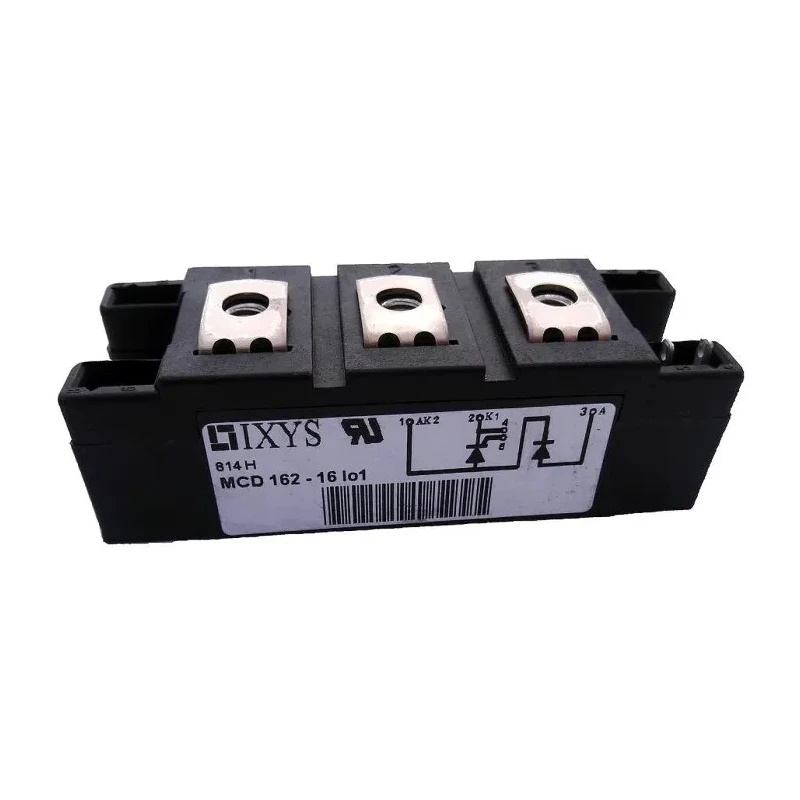

IXYS Thyristor Module Panel Mount 1600 V 6.4 kA Rated Surge Current 190 A 5-Pin MCD162-16IO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 30mm |
| Length | 94mm |
| Model | MCD162-16IO1 |
| Width | 34mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 125°C |
| Pin Count | 5 |
| Rated Average On-State Current Irms | 190A |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 6.4kA |
| Maximum Gate Trigger Current Igt | 150mA |
| Maximum Holding Current Ih | 200mA |
| Maximum Gate Trigger Voltage Vgt | 2.5V |
| Peak On-State Voltage | 1.25V |
| Repetitive Peak Off-State Current | 10mA |
Key Features
- Designed for panel mounting applications with 5-pin configuration.
- Maximum gate trigger current of 150 mA enables reliable switching.
- Features a low peak on-state voltage of 1.25 V for efficient conduction.
- Operates safely up to 125°C maximum operating temperature.
- Compact dimensions of 94 mm length, 34 mm width, and 30 mm height.
- Includes a ceramic base plate with direct copper bonding for heat dissipation.
- Suitable for battery chargers, welders, regulated power supplies, and speed control circuits.
- Encapsulated module with electrically isolated base plate for safety.
Product Description
IXYS MCD162-16IO1 Thyristor Module is a robust solid-state semiconductor device designed for high power applications requiring reliable switching. Featuring a repetitive peak reverse voltage of 1600 V and a surge current rating of 6.4 kA, this module supports an average on-state current of 190 A, making it suitable for demanding electrical environments.
Its panel mount design with 5-pin configuration allows easy integration into electrical systems. The module includes a thyristor in series with a diode, optimized for mains voltage (50/60 Hz) rectification. Its package construction includes a ceramic base plate with direct copper bonding, enhancing heat dissipation and operational stability.
The maximum gate trigger current is 150 mA, with a holding current up to 200 mA and a maximum gate trigger voltage of 2.5 V, ensuring precise control in switching circuits. The operating temperature range reaches up to 125°C for industrial reliability. Measuring 94 mm in length, 34 mm in width, and 30 mm in height, the compact module fits varied equipment footprints.
This thyristor module is ideal for use in battery chargers, welders, plating equipment, regulated power supplies, temperature and speed control circuits across industrial, manufacturing, and laboratory settings.
Panel mount with 5 pins for secure connection. Repetitive peak reverse voltage of 1600 V ensures robust electrical tolerance. Surge current rating of 6.4 kA supports transient loads. Maximum gate trigger current and holding currents suited for precise switching.
Direct copper bonded ceramic base plate for heat regulation and electrical isolation. Compact dimensions allow versatile integration. UL recognized component for compliance assurance.
Choose the IXYS MCD162-16IO1 Thyristor Module for reliable power control and efficient switching in industrial semiconductor applications. Explore more products in the Thyristor Module category at EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this thyristor module is 125°C.
This model has a surge current rating of 6.4 kA, allowing it to handle transient loads effectively.
The repetitive peak reverse voltage for this thyristor module is 1600 V, providing robust electrical tolerance.
The dimensions of this module are 94 mm in length, 34 mm in width, and 30 mm in height.
The rated average on-state current for this model is 190 A, suitable for high power applications.
This model features a 5-pin configuration for secure connections in panel mounting applications.
The maximum gate trigger current for this thyristor module is 150 mA, enabling reliable switching.
This thyristor module is suitable for battery chargers, welders, regulated power supplies, and speed control circuits.
The peak on-state voltage for this thyristor module is 1.25 V, which contributes to efficient conduction.
The maximum holding current for this model is 200 mA, ensuring precise control in switching circuits.
This model is designed for panel mounting, facilitating easy integration into electrical systems.
The module includes a ceramic base plate with direct copper bonding, enhancing heat dissipation and operational stability.
