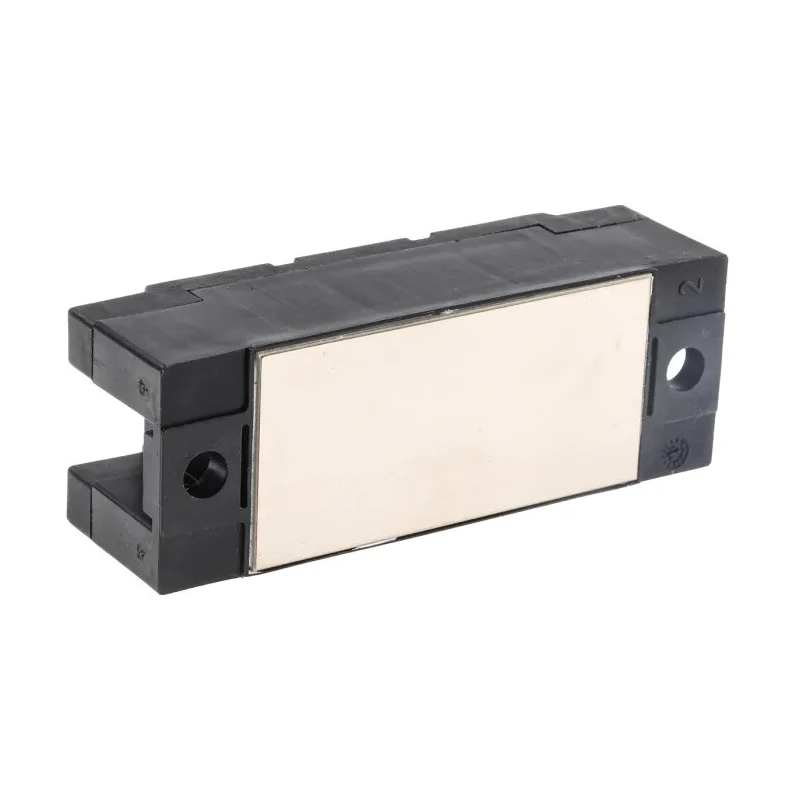

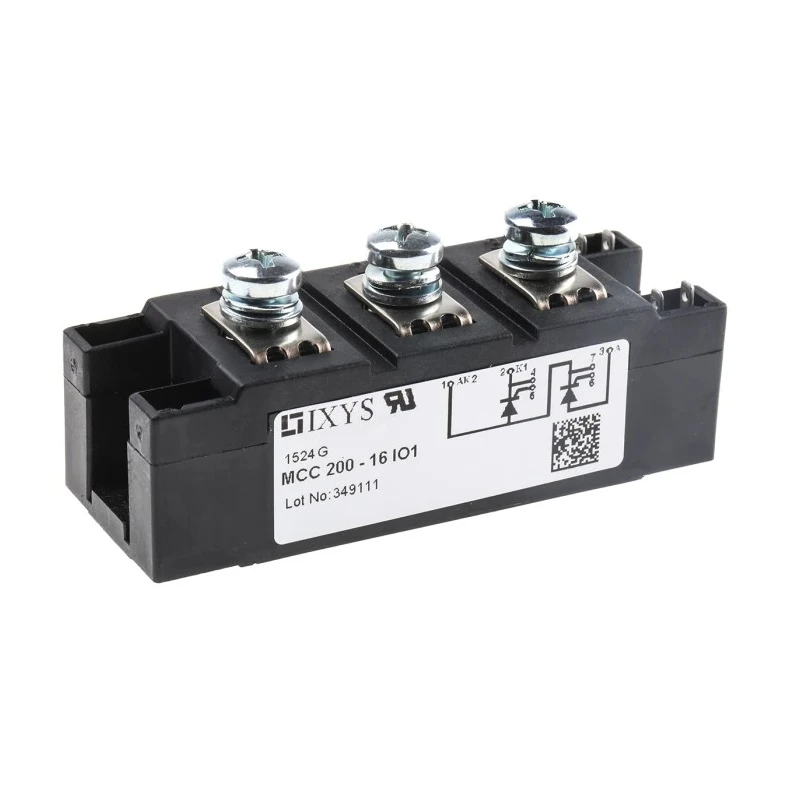

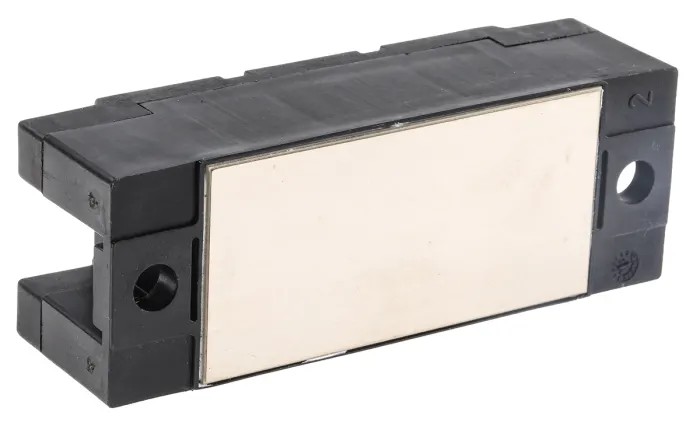

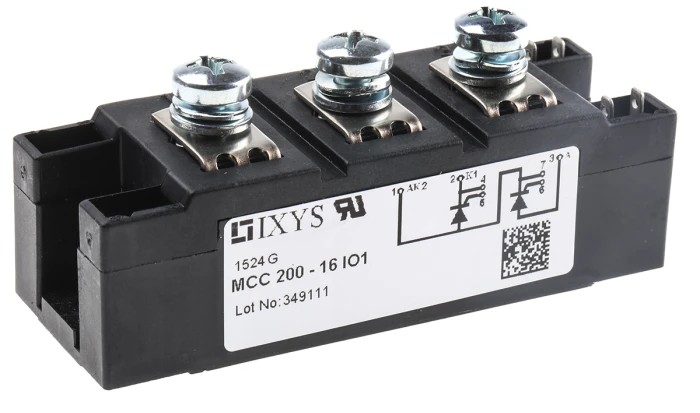

IXYS Dual Thyristor Module 1600 V 8.6 kA 216 A 150 mA 1.2 V 7-Pin MCC200-16IO1

IXYS MCC200-16IO1 Dual Thyristor Module delivers robust performance with a repetitive peak reverse voltage of 1600 V and surge current rating of 8.6 kA. This module supports a rated average on-state current of 216 A, addressing demanding industrial and commercial electronic applications.

The device has a maximum gate trigger current of 150 mA and a gate trigger voltage of 2 V, with a maximum holding current of 150 mA, allowing precise control in power switching circuits. It features a 7-pin design with a panel mount configuration and is encapsulated with an electrically isolated base plate, minimizing electrical hazards.

With a compact size of 94 mm length, 34 mm width, and 30 mm height, it is suitable for integration in diverse power control systems. Maximum operating temperature is 125°C, ensuring reliability in high-temperature environments.

Applications include regulated power supplies, temperature control circuits, battery chargers, welding equipment, and plating devices. The MCC Series’s dual thyristor configuration is ideal for switching and phase control duties in industrial automation and power electronics.

Operates safely within specified electrical limits for high current and voltage. Panel mount type facilitates secure installation in control panels and devices. Electrically isolated base plate enhances safety and performance.

Robust construction tailored for industrial and commercial electronics. Supports precise triggering and control with well-defined gate parameters.

IXYS modules are known for their reliability in harsh industrial conditions. This product is suitable for professionals seeking dependable power control components compatible with demanding environments.
