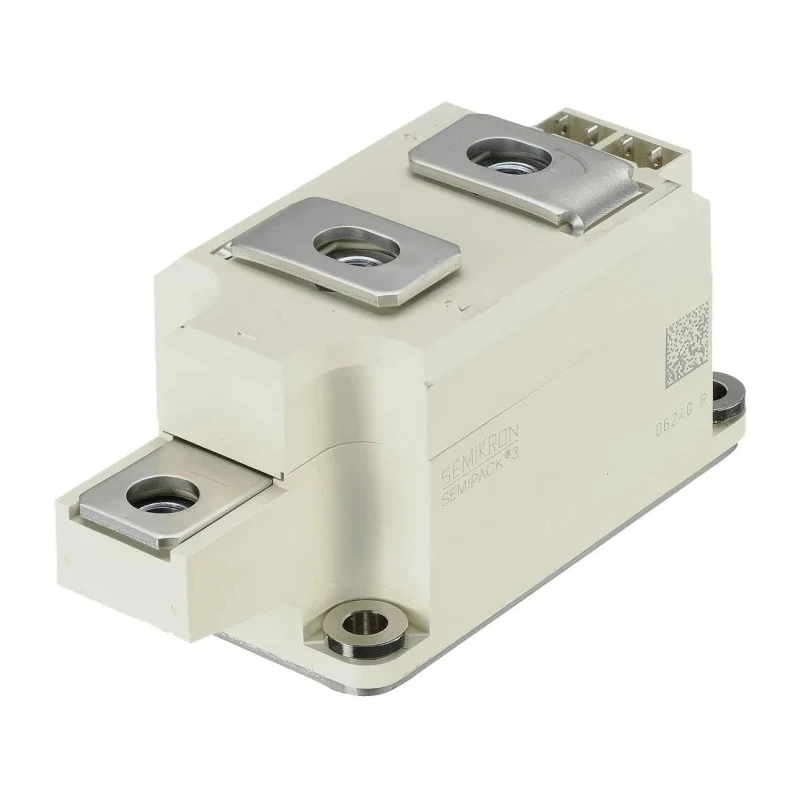

Semikron Danfoss Diode/Thyristor Module SCR 1600 V, 9.5 kA Surge Current, 320 A Rated Current, 150 mA Gate SKKH 323/16 E

Semikron Danfoss SKKH 323/16 E is a high-performance diode/Thyristor Module specifically designed for robust industrial power control applications. This SCR module features a repetitive peak reverse voltage of 1600 V, rated average on-state current of 320 A, and withstands surge currents up to 9.5 kA, making it suitable for demanding electrical environments.

The SEMIPACK3 5-pin package offers a compact and panel-mount design with dimensions measuring 115mm in length, 50.3mm in width, and 53mm in height, facilitating easy integration into power control systems. Operating at a maximum temperature of 130°C ensures reliability under thermal stress.

This module includes precise control parameters such as a maximum gate trigger current of 150 mA, a holding current of 500 mA, and a gate trigger voltage capped at 2 V, enabling responsive and stable operation. The peak on-state voltage of 1.45 V reduces conduction losses, enhancing overall efficiency.

With a repetitive peak off-state current limited to 100 mA, the device provides protection against undesired leakage currents during off states. Manufactured in Slovakia to exacting semiconductor standards, this module is suitable for applications including battery chargers, welding equipment, regulated power supplies, and speed or temperature control circuits.

The encapsulated module comes with an electrically isolated baseplate to simplify heat dissipation and electrical isolation requirements. Its robust build and technical specifications make it ideal for industrial, manufacturing, HVAC, and power electronics applications requiring reliable SCR switching modules.

Implements thyristor and diode technology for high efficiency. Features SEMIPACK3 package type with 5-pin configuration. Capable of handling surge currents up to 9.5 kA for short durations. Designed for panel mounting with compact dimensions of 115mm length, 50.3mm width, and 53mm height.

Operates safely up to a maximum temperature of 130°C. Maximum gate trigger current is 150 mA ensuring precise control. Supports a maximum holding current of 500 mA and gate trigger voltage of 2 V. Peak on-state voltage is 1.45 V ensuring minimal conduction losses.

Repetitive peak off-state current is limited to 100 mA for protection. Manufactured in Slovakia to high semiconductor industry standards. Explore more semiconductor and power control modules at EnvMart to find compatible devices and accessories for your industrial projects.
