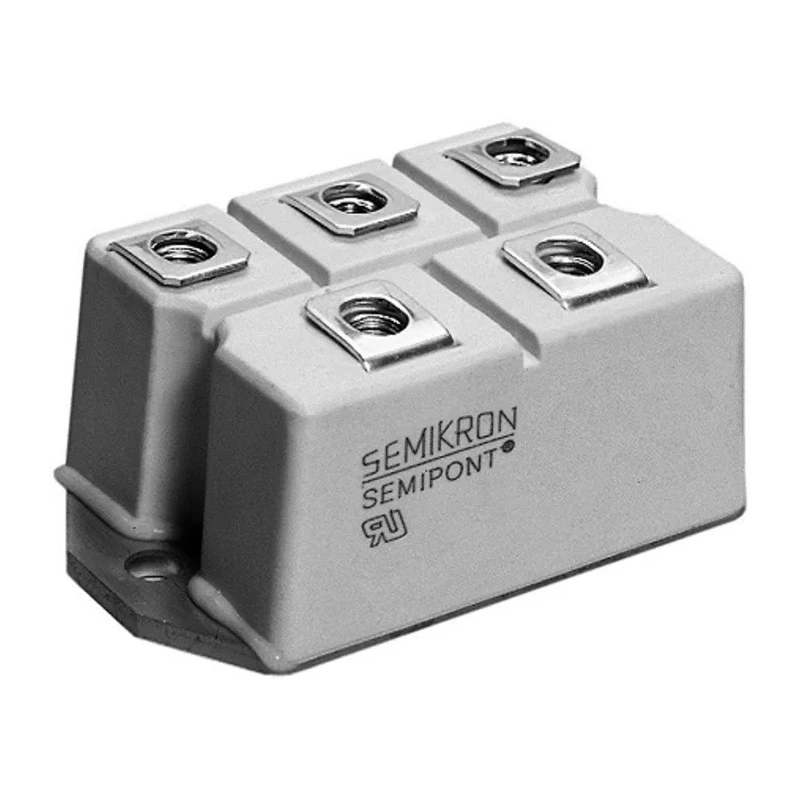

Semikron Danfoss Three Phase Bridge Rectifier Module 1600 V 500 A 7-Pin Single SKD 62/16

Semikron Danfoss SKD 62/16 Bridge Rectifier Module is a three phase semiconductor device designed for industrial power conversion applications with a peak reverse repetitive voltage of 1600 V and a maximum forward current of 500 A. This module provides a reliable and efficient means to convert alternating current (AC) to direct current (DC), utilizing a single 7-pin configuration in a sturdy G-36 package. Its panel mount design and isolated metal base allow secure chassis installation with optimal heat dissipation.

The rectifier module operates within a wide temperature range from -40°C to 150°C, making it suitable for diverse industrial environments. Its robust plastic casing protects internal components while facilitating mounting with screw terminals. The semiconductor is part of the SKD 62 series, known for performance in power supplies, variable frequency drives, and DC motor field supplies.

Key electrical characteristics include a peak non-repetitive forward surge current of 500 A to handle transient load conditions and a low peak forward voltage drop of 1.8 V, contributing to improved energy efficiency. Minimal peak reverse current leakage ensures stable operation under high voltage stress. The compact dimensions (72 mm length, 42 mm width, and 30 mm height) aid in conserving circuit board space without compromising functionality.

This module is manufactured in Italy with high-quality standards, though no formal approvals are listed. It is supplied with mounting hardware for straightforward integration. Typical industrial applications include power conversion in manufacturing equipment, HVAC systems, DC motor controls, and other demanding electronics environments.

Supports peak reverse repetitive voltage of 1600 V for efficient power handling. Equipped with 7 pins in a single configurable bridge rectifier module. Features panel mounting type with a G-36 package for easy installation.

Operates reliably in temperatures from -40°C to 150°C. Designed with a robust plastic case and isolated metal base plate for durability and heat dissipation. Suitable for power supplies, variable frequency drives, and DC motor field supplies.

Compact dimensions of 72 mm length, 42 mm width, and 30 mm height optimize space. Peak non-repetitive forward surge current capacity of 500 A for transient demands. Low peak forward voltage of 1.8 V and minimal peak reverse current of 5 mA enhance efficiency.
