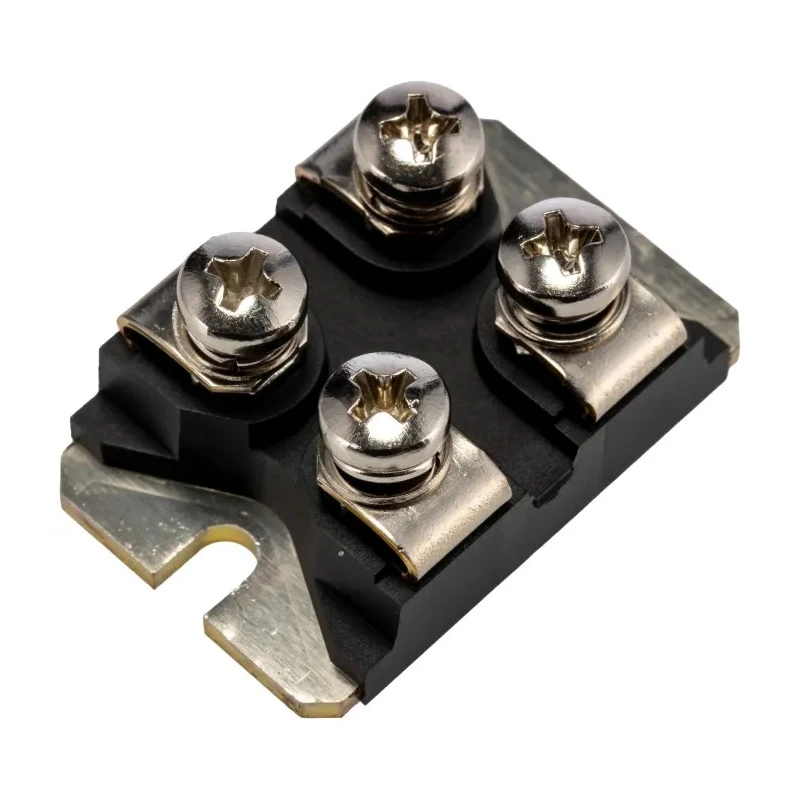

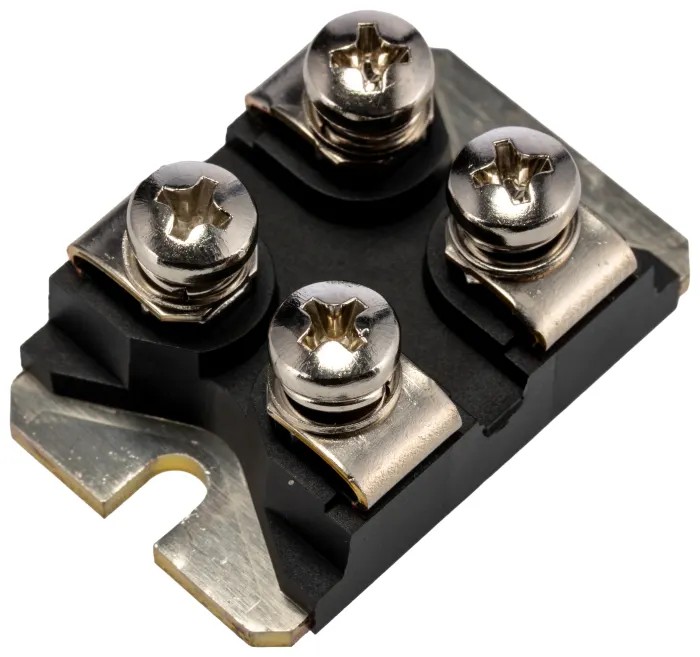

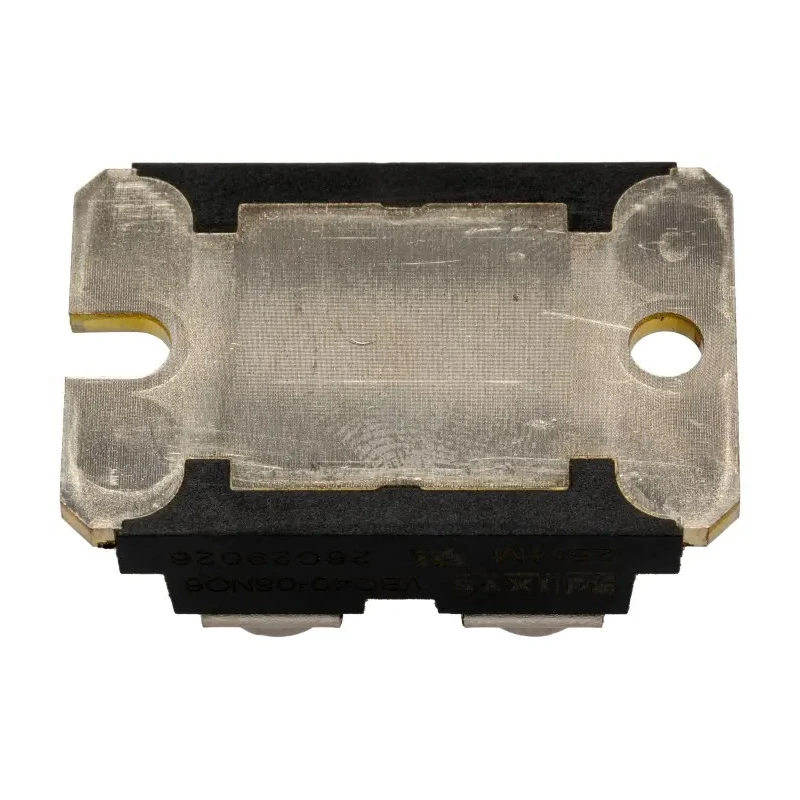

IXYS Bridge Rectifier Module 800 V 320 A 4-Pin Panel Mount SOT-227 VBO40-08NO6
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9.6mm |
| Length | 38.3mm |
| Model | VBO40-08NO6 |
| Width | 25.07mm |
| Mount Type | Panel |
| Series | VBO40 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Forward Current If | 40A |
| Peak Forward Voltage Vf | 1.15V |
| IXYS Bridge Rectifier Module, 1200 V 320 A, 4-Pin SingleBrand | IXYS |
Key Features
- Panel mount type suitable for robust installation.
- Package type is SOT-227 ensuring reliable packaging.
- Operates between -40°C to 150°C for wide temperature applications.
- Forward current rating of 40 A with very low forward voltage drop.
- Low leakage current enhances efficiency and performance.
- Single-phase configuration designed for rectification applications.
- Peak forward voltage is 1.15 V ensuring minimal losses.
- UL E72873 approval supports industrial compliance.
Product Description
IXYS VBO40-08NO6 Bridge Rectifier Module is designed for industrial and electronic applications requiring reliable AC to DC conversion. This single-phase bridge rectifier module supports a peak reverse repetitive voltage of 800 V and a surge current of 320 A, making it suitable for power electronics, motor control, and power supply circuits.
Its panel mount configuration with a SOT-227 package ensures secure and stable installation while allowing enhanced thermal performance aided by direct copper bonding (DCB) isolation. The module operates efficiently over a wide temperature range of -40°C to 150°C, suitable for demanding environments.
The device features very low leakage current and minimal forward voltage drop of 1.15 V, optimizing power efficiency and reducing heat generation. The compact dimensions of 38.3 mm length, 25.07 mm width, and 9.6 mm height allow for integration in constrained space setups.
This IXYS bridge rectifier is utilized extensively in industrial automation, power management, and electronic subsystems requiring robust and reliable rectification. The product ensures improved thermal behavior and electrical performance, supported by UL E72873 certification ensuring quality compliance.
Panel mount type suitable for robust installation. Package type is SOT-227 ensuring reliable packaging. Operates between -40°C to 150°C for wide temperature applications. Forward current rating of 40 A with very low forward voltage drop.
Low leakage current enhances efficiency and performance. Compact dimensions: 38.3 mm length, 25.07 mm width, and 9.6 mm height. Single-phase configuration designed for rectification applications. Peak forward voltage is 1.15 V ensuring minimal losses.
UL E72873 approval supports industrial compliance. Enhanced thermal behavior due to direct copper bonding technology.
This Bridge Rectifier Module by IXYS is a critical component for power conversion in industrial, laboratory, HVAC, manufacturing, and electronic systems. Explore more high-quality semiconductor modules available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IXYS VBO40-08NO6 Bridge Rectifier Module has a peak reverse repetitive voltage of 800 V.
This model is rated for a forward current of 40 A.
The dimensions of this bridge rectifier module are 38.3 mm in length, 25.07 mm in width, and 9.6 mm in height.
It operates efficiently over a wide temperature range of -40°C to 150°C.
The peak forward voltage is 1.15 V, which helps minimize losses during operation.
This model supports panel mounting, ensuring a robust installation.
The surge current rating for this bridge rectifier module is 320 A.
This bridge rectifier operates with a single-phase configuration.
The package type for this model is SOT-227, which ensures reliable packaging.
The peak reverse current is rated at 300 μA.
This bridge rectifier module has UL E72873 certification, supporting industrial compliance.
It is suitable for industrial automation, power management, and electronic subsystems requiring reliable rectification.
