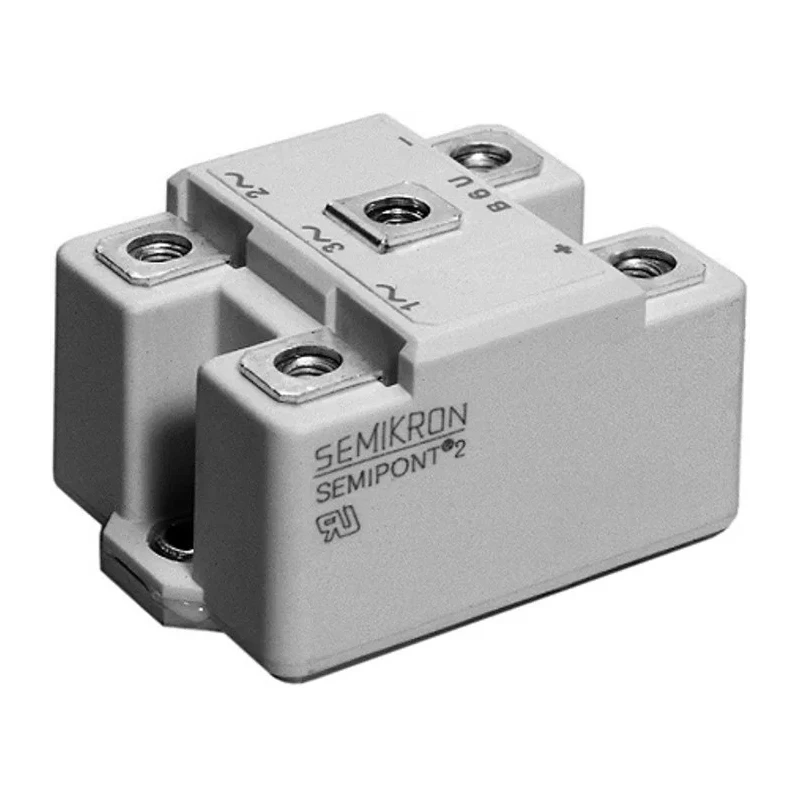

Semikron Danfoss 3-Phase Bridge Rectifier Module Panel Mount 1200 V 1.15 kA 5-Pin Single SKD 100/12

Semikron Danfoss SKD 100/12 is a 3-phase bridge rectifier module tailored for power supply applications such as variable frequency drives and DC motor field supplies. It provides a peak reverse repetitive voltage (VRRM) of 1200 V and a peak non-repetitive forward surge current (IFSM) of 1.15 kA, ensuring capability to handle significant transient loads.

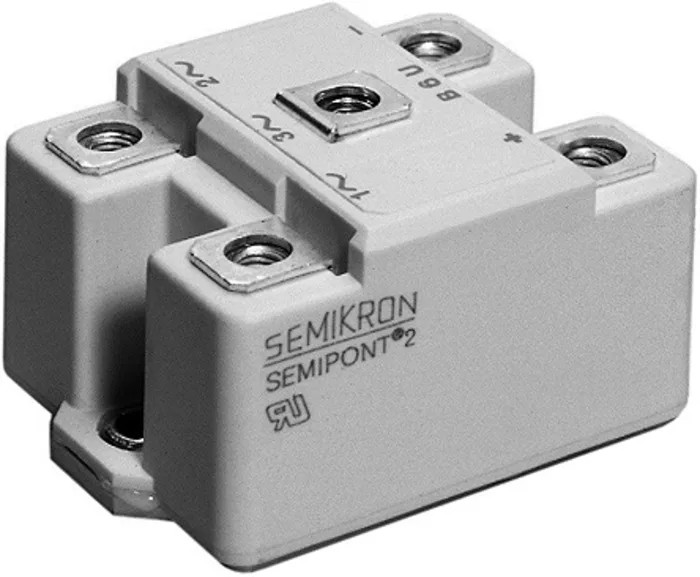

The device features a robust plastic case with secure screw terminals and an isolated metal base plate enabling straightforward panel mounting and safe operation. Its operation temperature range spans from -40°C to a maximum of 125°C, allowing it to function reliably in industrial environments.

With a forward current rating (IF) of 150A and low peak forward voltage drop of 1.35 V, the SKD 100/12 ensures efficient power conversion. It has 5 pins and comes in a single configuration supporting three-phase circuits. The compact dimensions of 65 mm (length) by 48 mm (width) by 35.5 mm (height) facilitate integration into equipment with limited space.

This bridge rectifier utilises SEMIPONT® technology, known for converting AC to DC current effectively, making it suitable for diverse industrial, manufacturing, HVAC, and power electronics applications.

Robust plastic casing with screw terminals. Isolated metal base plate for easy and secure mounting. Operating temperature range from -40°C to 125°C. Forward current rated at 150A for high load handling. Compact size ideal for equipment integration.

Three-phase 5-pin single configuration. Manufactured in Italy ensuring quality standards. Peak surge current of 1.15 kA for transient protection.

This Semikron Danfoss Bridge Rectifier Module combines durability and performance, making it a reliable choice for electrical and electronic applications requiring controlled AC to DC power conversion. Explore similar products and modules on EnvMart for your industrial component needs.
