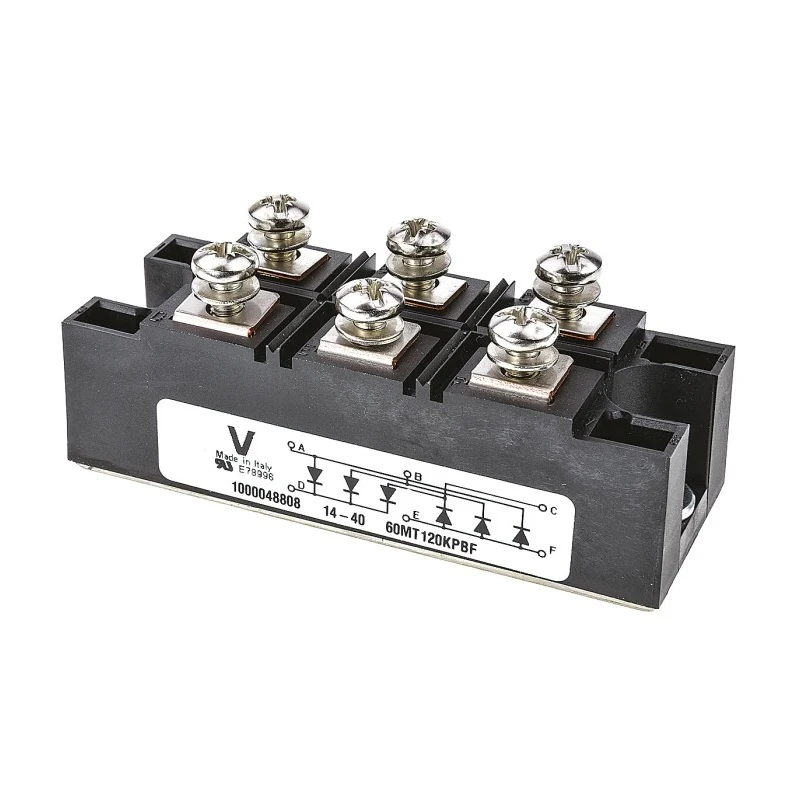

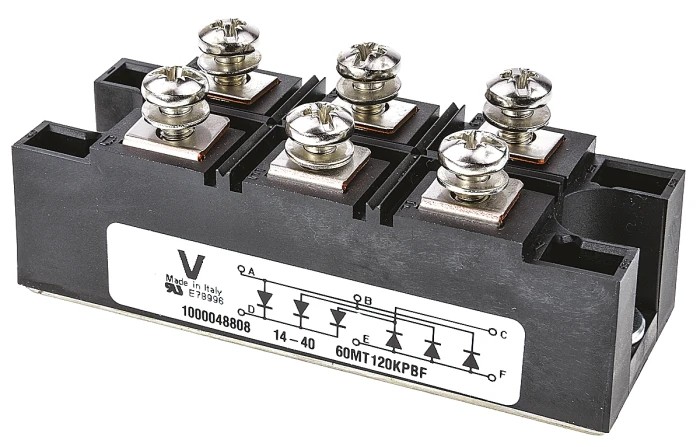

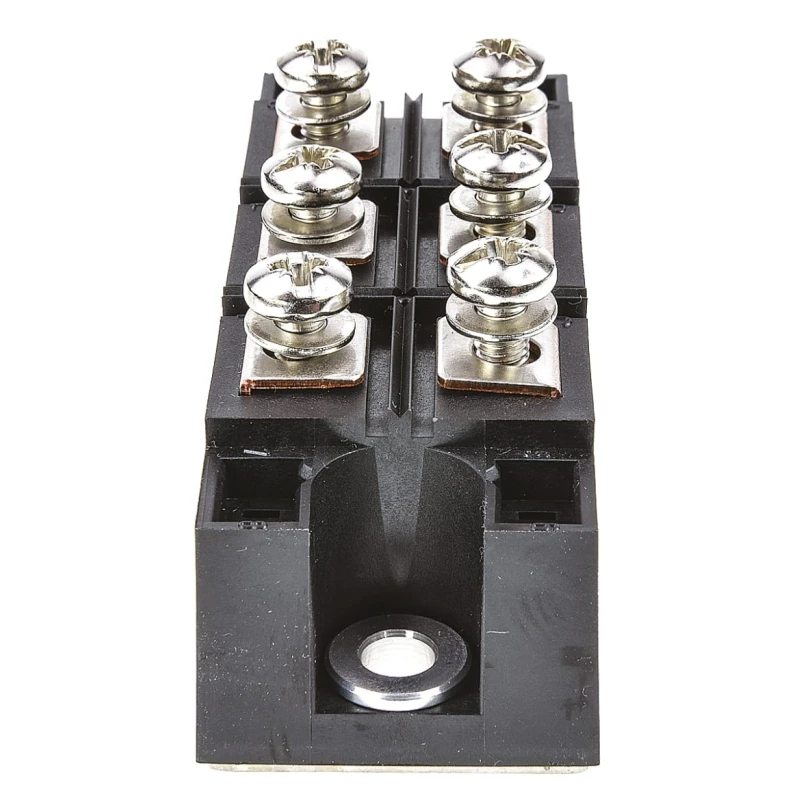

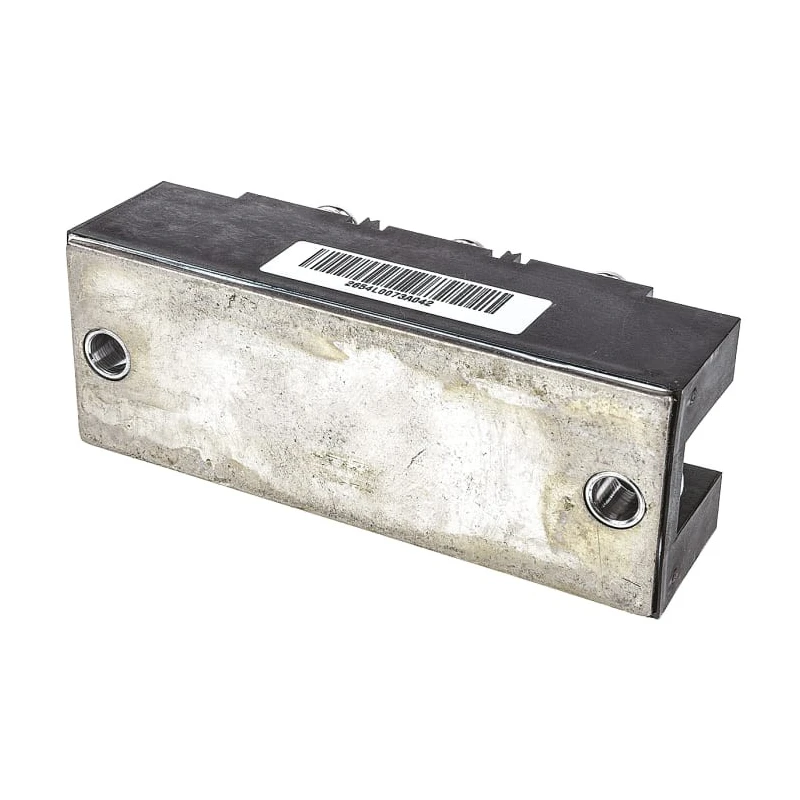

Vishay Bridge Rectifier Module Panel Mount, 3 Phase, 1200 V, 60 A Forward Current, 6-Pin VS-60MT120KPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 25.5mm |
| Length | 94mm |
| Model | VS-60MT120KPBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VS-60MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 6 |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 440A |
| Forward Current If | 60A |
| Peak Forward Voltage Vf | 1.75V |
| Vishay Bridge Rectifier Module, 1200 V 500 A, 5-Pin SingleBrand | Vishay |
| Semikron Danfoss Bridge Rectifier Module, 1200 V 1 kA, 5-Pin SingleBrand | Semikron Danfoss |
Key Features
- Operates with a peak reverse repetitive voltage of 1200 V.
- Forward current rating of 60 A suitable for medium power loads.
- Supports a peak non-repetitive forward surge current of 440 A for high transient loads.
- Package type INT-A-PAK with electrical isolation and high thermal conductivity.
- Wide operating temperature range from -40°C to 150°C for demanding industrial environments.
- Single configuration bridge rectifier suitable for three phase full-wave rectification.
- Low peak forward voltage drop of 1.75 V ensuring efficient conduction.
- Designed with 6 screw terminal pins for secure installation.
Product Description
Vishay VS-60MT120KPBF Bridge Rectifier Module Panel Mount is a three-phase, 6-pin discrete semiconductor device designed for converting AC input into DC output with full-wave rectification efficiency. It operates at a peak reverse repetitive voltage of 1200 V and a forward average current of 60 A, withstanding surge currents up to 440 A. The module’s INT-A-PAK package offers high thermal conductivity alongside electrical insulation, allowing robust performance in harsh industrial environments with operating temperatures ranging from -40°C to 150°C.
The compact physical dimensions of 94 mm length, 35 mm width, and 25.5 mm height facilitate panel mounting and integration into power electronics assemblies. The device’s six screw terminals offer secure electrical connections suitable for three phase rectification circuits commonly used in motor drives, power supplies, and industrial machinery control. Peak forward voltage of 1.75 V minimizes conduction losses, enhancing efficiency.
Typical industrial applications include power conversion tasks in manufacturing, HVAC systems, industrial automation, and energy management setups requiring reliable and compact semiconductor power modules. The device complies with Vishay’s VS-60MT series standards providing robust performance without additional approvals or automotive certification, ideal for general industrial use.
Operates at a peak reverse repetitive voltage of 1200 V. Forward current rating of 60 A for sustained loads. Peak non-repetitive surge current of 440 A capacity. INT-A-PAK package type with high thermal conductivity. Operating temperature range from -40°C to 150°C.
Compact size for easy panel mounting: 94x35x25.5 mm. Six-pin screw terminal configuration. Peak forward voltage drop rated at 1.75 V. Isolating voltage of 4000 Vrms ensuring safety. Set contains 1 piece Vishay VS-60MT120KPBF Bridge Rectifier Module. This product is new and sourced from India.
Explore more semiconductor modules on EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this module is 1200 V.
It has a forward current rating of 60 A, suitable for medium power loads.
This model can withstand a peak non-repetitive forward surge current of 440 A.
The dimensions of this module are 94 mm in length, 35 mm in width, and 25.5 mm in height.
The operating temperature range is from -40°C to 150°C, making it suitable for demanding industrial environments.
It is designed for three-phase operation, suitable for full-wave rectification.
The module uses an INT-A-PAK package type, which offers high thermal conductivity and electrical insulation.
The peak forward voltage drop is rated at 1.75 V, which helps minimize conduction losses.
This unit is designed for panel mounting, facilitating easy integration into power electronics assemblies.
It features a 6-pin screw terminal configuration for secure electrical connections.
Typical applications include power conversion tasks in manufacturing, HVAC systems, industrial automation, and energy management setups.
This bridge rectifier module is sourced from India.
