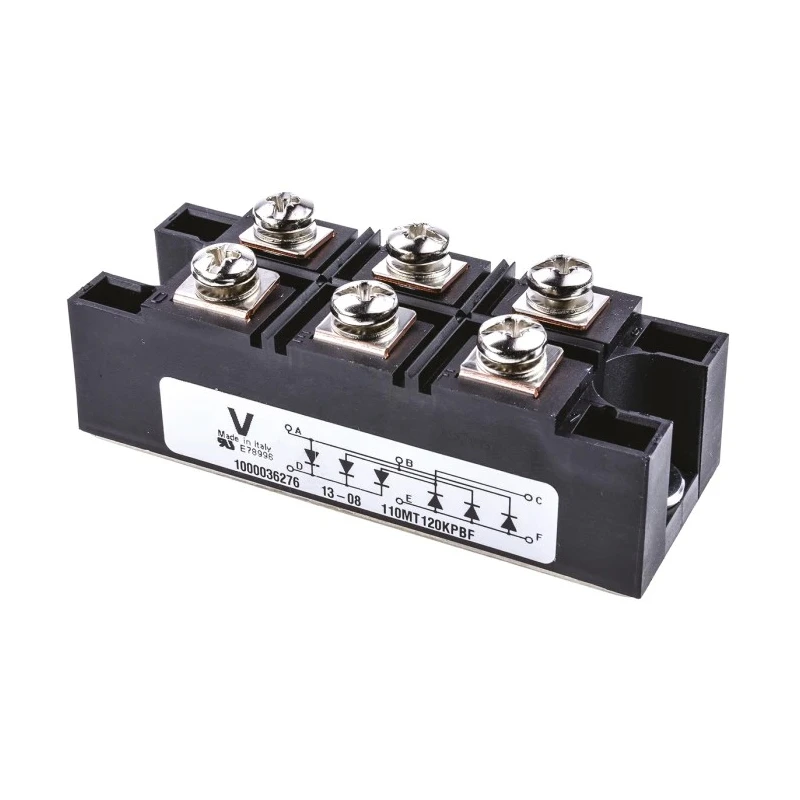

Vishay Bridge Rectifier Module 1200 V Peak Reverse Voltage 1 kA Peak Surge Current 6-Pin Panel Mount VS-110MT120KPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-110MT120KPBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VS-110MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5311Brand: VishayManufacturers Part No.: VS-110MT120KPBF |
| Pin Count | 6 |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1kA |
| Forward Current If | 150A |
| Peak Forward Voltage Vf | 1.4V |
Key Features
- Supports peak reverse repetitive voltage of 1200 V.
- Can conduct a forward current of 150 A continuously.
- Handles peak non-repetitive forward surge current of up to 1 kA.
- Operates reliably in temperatures from -40°C to 150°C.
- Features a compact INT-A-PAK package with high thermal conductivity.
- Includes 6 pins for easy panel mounting and connection.

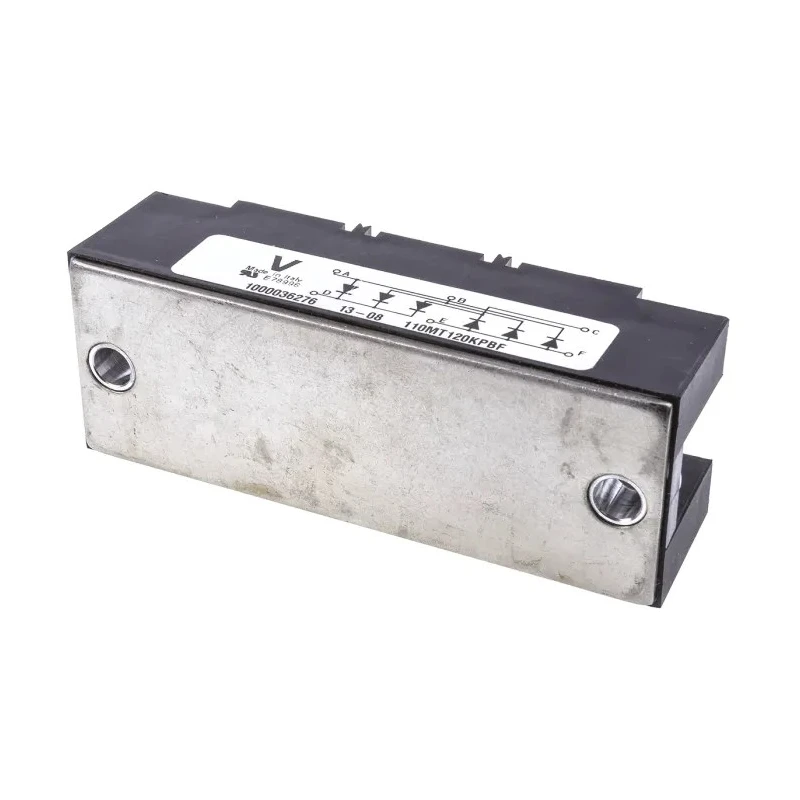

- Electrically insulated case ensures safety and improved thermal performance.
- Designed for industrial and electronic power module applications.
Product Description
Vishay VS-110MT120KPBF Bridge Rectifier Module is a high-performance three-phase full-wave diode rectifier housed in an INT-A-PAK package designed for panel mounting applications. Rated for a peak reverse repetitive voltage of 1200 V and a continuous forward current of 150 A, this module converts alternating current input into direct current output efficiently for power electronics systems.
The device supports a peak non-repetitive forward surge current of 1 kA, providing robustness to voltage spikes and transient conditions. With a wide operating temperature range from -40° Celsius to 150° Celsius, it is suitable for demanding industrial environments.
The compact 6-pin configuration facilitates easy integration into power modules, while the electrically insulated case with high thermal conductivity helps maintain system reliability and efficient heat dissipation. This model belongs to Vishay’s VS-110MT series known for reliability in semiconductor power device applications.
This bridge rectifier module is ideal for industrial, power electronics, manufacturing, and other electrical system setups requiring three-phase AC to DC conversion with high power handling capability.
Supports peak reverse repetitive voltage of 1200 V. Continuous forward current rating of 150 A. Peak surge current rating of 1 kA for transient durability. Wide operating temperature range from -40°C to 150°C. Compact INT-A-PAK package with 6-pin panel mount configuration.
High thermal conductivity electrically insulated case. Suitable for power electronic modules and industrial applications. Explore more Vishay semiconductor power components and Bridge Rectifier Modules on EnvMart for reliable industrial electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-110MT120KPBF has a peak reverse repetitive voltage rating of 1200 V.
It can conduct a continuous forward current of 150 A.
This bridge rectifier module supports a peak non-repetitive forward surge current of up to 1 kA.
The operating temperature range is from -40°C to 150°C.
It features a 6-pin configuration for easy panel mounting and connection.
This model is housed in an INT-A-PAK package.

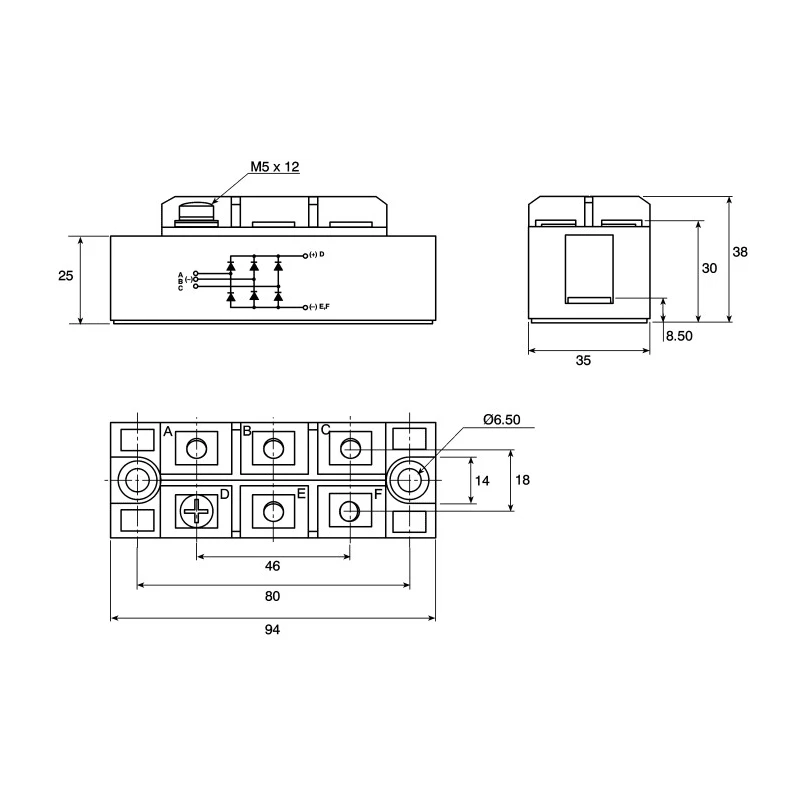

The dimensions are 94 mm in length, 35 mm in width, and 30 mm in height.
It is designed for industrial, power electronics, and manufacturing applications requiring three-phase AC to DC conversion.
The configuration is single-phase, suitable for three-phase systems.
The peak forward voltage is rated at 1.4 V.
The country of origin for this model is India.
